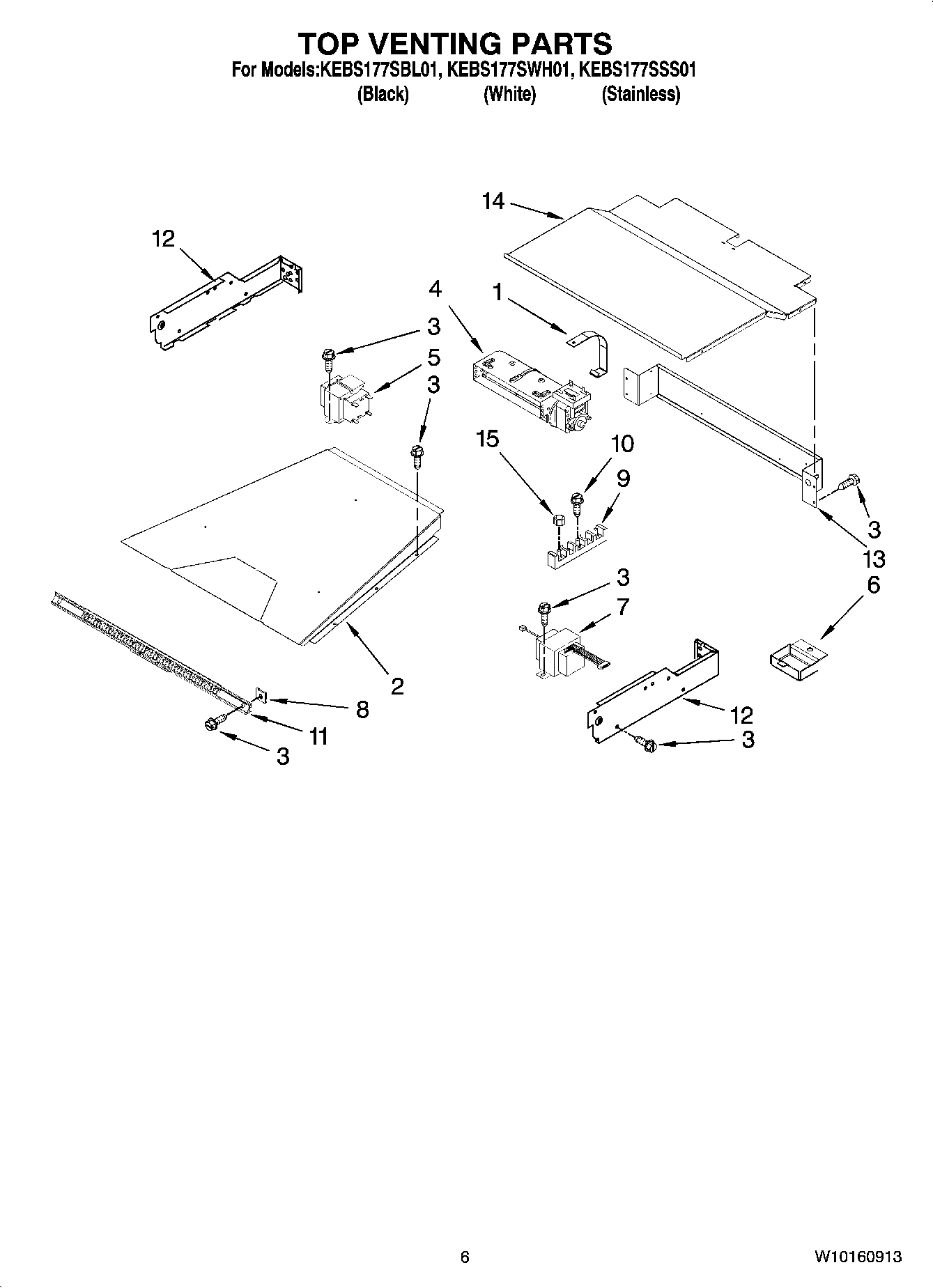

KEBS177SBL01 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Miscellaneous
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	261900 Whirlpool Microwave Spray
	Harness,
	Harness, Wire (Main)
	Conduit, Single
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	WIRING HARNESS PARTS
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	4450800 Whirlpool Oven Screw
	Wire, 25“ Roll (White 14 GA.)
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Black 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	W11209404 Whirlpool Wire Harness
	W10231531 Whirlpool Wire Harness
	Wire, 25` Roll (Red 14 Ga.)
	WP4448950 Whirlpool Screw
	8528351 Whirlpool Clip
1	Strip, Blower (2)
2	Duct, Air Outlet
3	WP4449809 Whirlpool Screw
4	WP8303972 Whirlpool Blower
5	WP9760588 Whirlpool Transformer
6	8285593 Whirlpool Oven Wire Cover
7	WPW10111628 Whirlpool Transformer
8	WP4450118 Whirlpool Nut
9	WP8203546 Whirlpool Terminal Block
10	Screw
11	Vent, Control Panel
12	Side, Control Top (Left)
12	Side, Control Top (Right)
13	Back, Control
14	Cover, Top
15	WP112432 Whirlpool Nut Assembly
