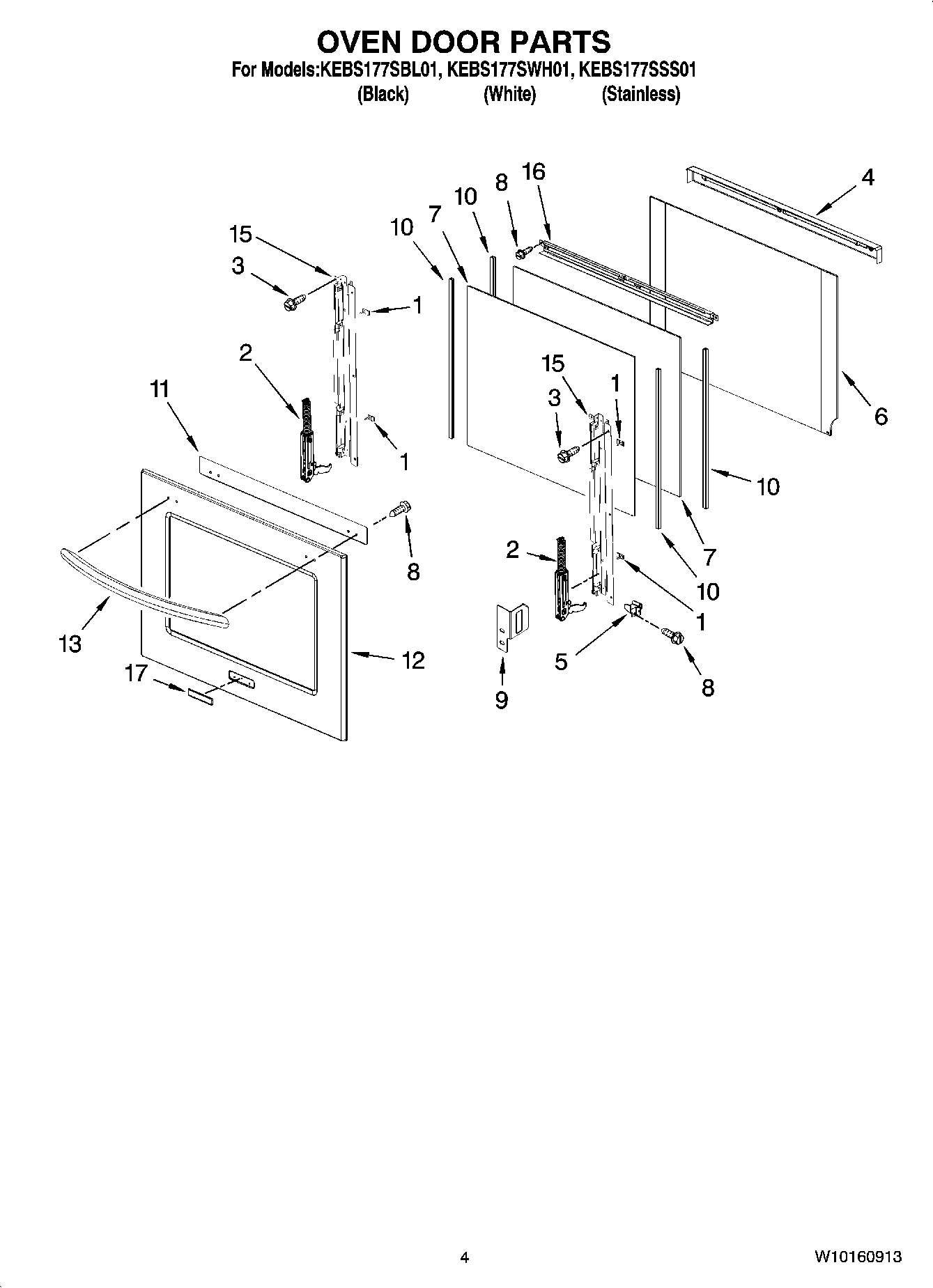

KEBS177SSS01 03 – OVEN DOOR PARTSadmin2025-04-26T12:36:24+00:00KEBS177SSS01 03 – OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Bumper, Glass |
| 2 | Hinge, Door (2) |
| 3 | WP3196183 Whirlpool Screw |
| 4 | Vent, Door Top |
| 5 | 8304378 Whirlpool Oven Support Bracket |
| 5 | Bracket, Door (Right) |
| 6 | Door Liner |
| 7 | Glass, Inner |
| 8 | WP4449743 Whirlpool Screw |
| 9 | COVER,HINGE (LEFT) |
| 9 | COVER,HINGE (RIGHT) |
| 10 | W10754409 Whirlpool Seal |
| 11 | Bracket, Handle |
| 12 | Door Glass, Assembly Includes 17 (Black) |
| 12 | Door Glass, Assembly Includes 17 (White) |
| 12 | Door Glass, Assembly Includes 17 (Stainless) |
| 13 | Handle, Door |
| 13 | Handle, Door (Black) |
| 13 | Handle, Door (White) |
| 15 | Frame, Door Side |
| 16 | Door, Top Bracket |
| 17 | Badge (Black) |
| 17 | Badge (Stainless) |
| 17 | Badge (White) |
