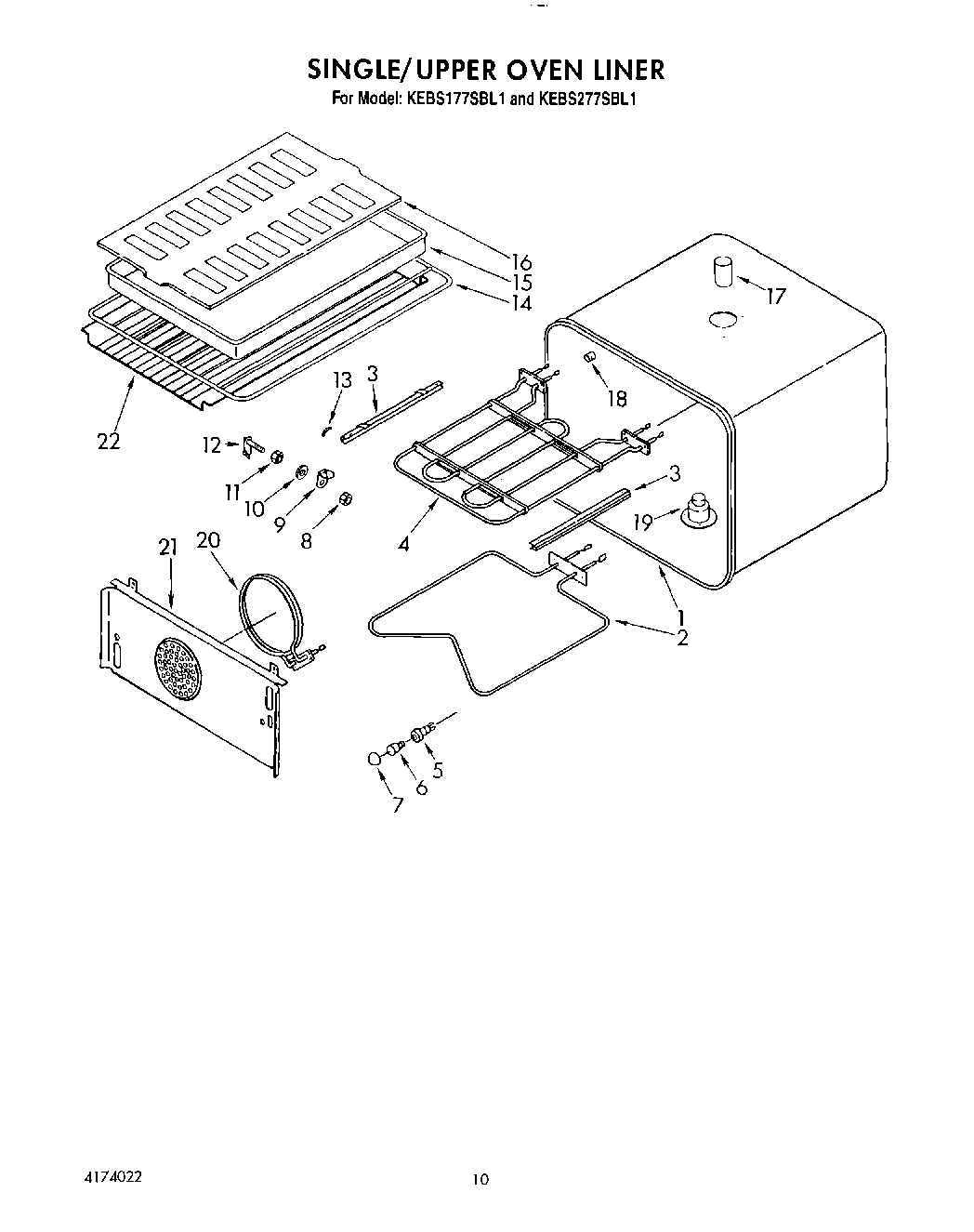

KEBS177SWH0 09 – SINGLE/UPPER OVEN LINERadmin2025-04-26T12:35:59+00:00KEBS177SWH0 09 – SINGLE/UPPER OVEN LINER
Products
| Position | Product |
|---|
| 1 | Oven Liner Upper Oven |
| 2 | WP3177420 Whirlpool Bake Element |
| 3 | Broiler Element Support-Left |
| 3 | Broiler Element Support-Right |
| 4 | Broiler Element |
| 5 | Base, Lamp |
| 6 | WP4173175 Whirlpool Light Bulb |
| 7 | Lens, Lamp |
| 8 | Lock-Nut, Cvr.Jack |
| 9 | Jack Cover |
| 10 | Washer |
| 11 | Nut, Hex Jam (2) |
| 12 | Receptacle, Lighted Probe |
| 13 | Clip, Thermostat Bulb |
| 14 | Oven Rack |
| 15 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 17 | Vent Tube Extension |
| 18 | Cover, Cap Tube |
| 19 | Smoke Eliminator (Upper Oven) |
| 20 | Element, Convection |
| 21 | Cover, Fan |
| 22 | Meat Probe |
| 22 | Gasket, Meat Probe |
| 22 | Oven Rack, Offset |
