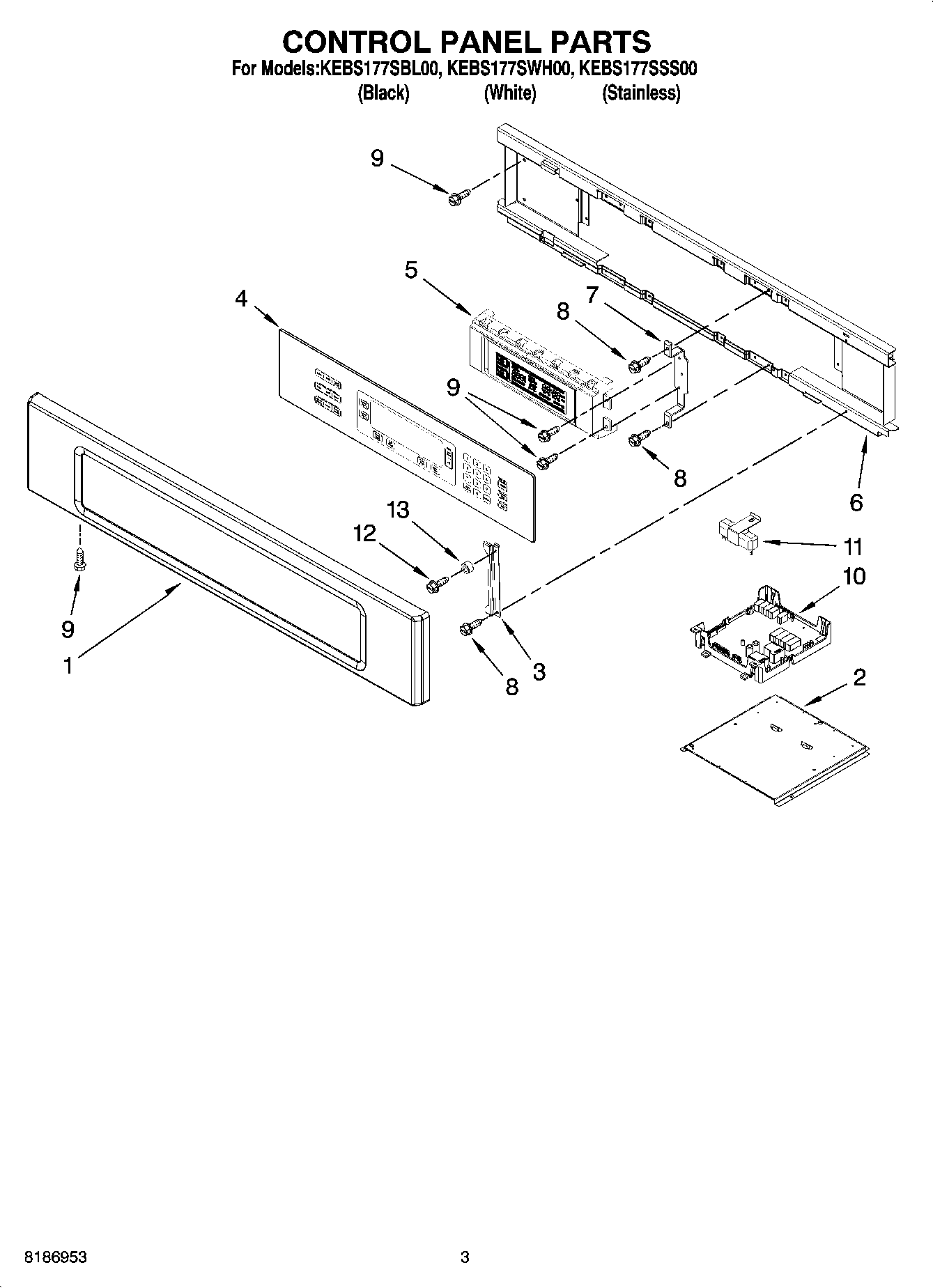

KEBS177SWH00 02 – CONTROL PANEL PARTS

KEBS177SWH00 02 – CONTROL PANEL PARTS

Written by

in

KEBS177SWH00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Black)
1Panel, Control (White)
1Panel, Control (Stainless)
2Support Appliance Manager
3Bracket, Glass Touch
4Control Panel, Glass Touch
5User Interface
6Backer, Control
7Bracket,Enclosure
8WP4449154 Whirlpool Screw
9WP3400832 Whirlpool Screw
10Appliance Manager
11Resistor, Drop
12WP4449809 Whirlpool Screw
13W10105790 Whirlpool Bumper
