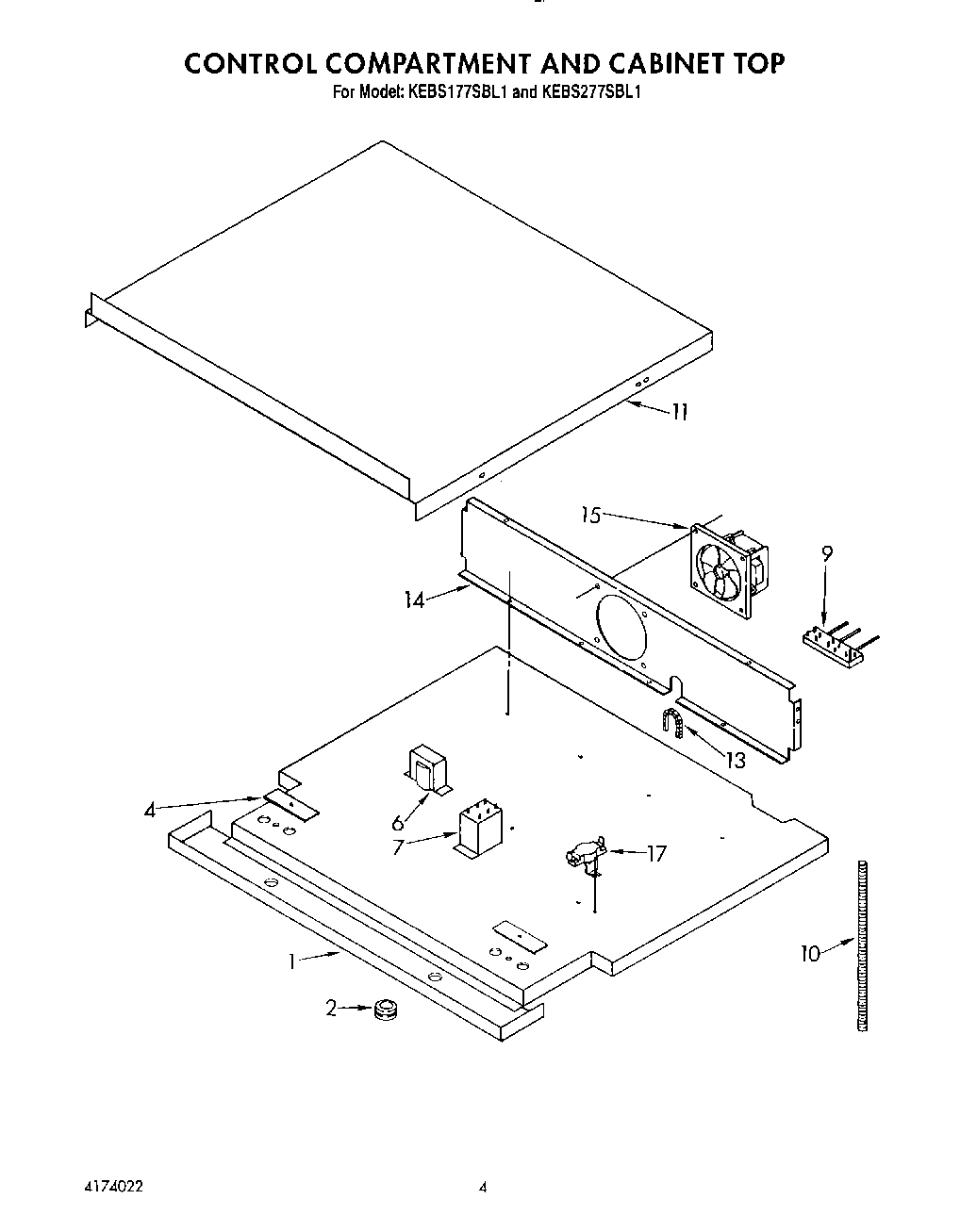

KEBS177SWH1 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel
2	Bushing
4	Hole Cover
6	Transformer, Meat Probe Model KEBS145SBL1
7	Relay, Meat Probe
9	Terminal Block, Power Supply
10	Conduit, 1/2“ X 56“
11	Cabinet Top
13	Bushing, Flexible
14	Blower Mounting Panel
15	Blower
17	Switch, Fan
