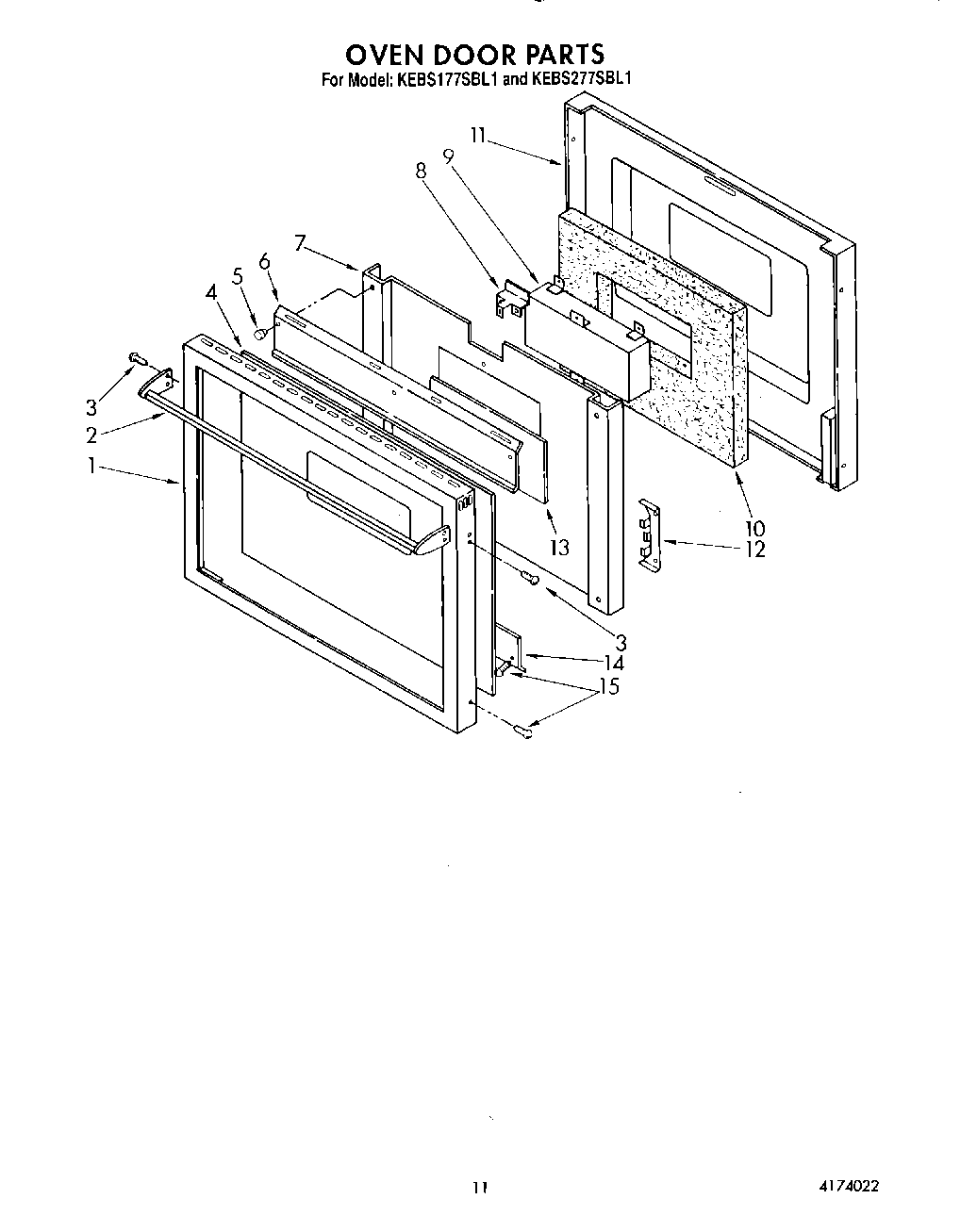

KEBS177SWH1 10 – OVEN DOOR, LIT/OPTIONAL

Products

Position	Product
1	Almond
1	White
1	Door Frame
2	Door Handle (Almond)
2	Door Handle (White)
2	Door Handle
3	Screw, 8-32 X 3/8“ PFHMS
4	Glass, Door (White)
4	Glass, Door (Almond)
4	Door Glass
5	Rubber Bumper
6	Air Baffle
7	Retainer, Insulation
8	Bracket, Lock
9	Window Package
10	Insulation
11	Door Liner
12	Bracket, Glass Mtg.
13	Glass, Reflective
14	Air Baffle, Bottom
15	List, Repair Parts
15	Use & Care Guide
15	Installation Instructions
15	Vent, Lower Trim (Screw (2))
15	Instructions, Installation (Trim Kit)
