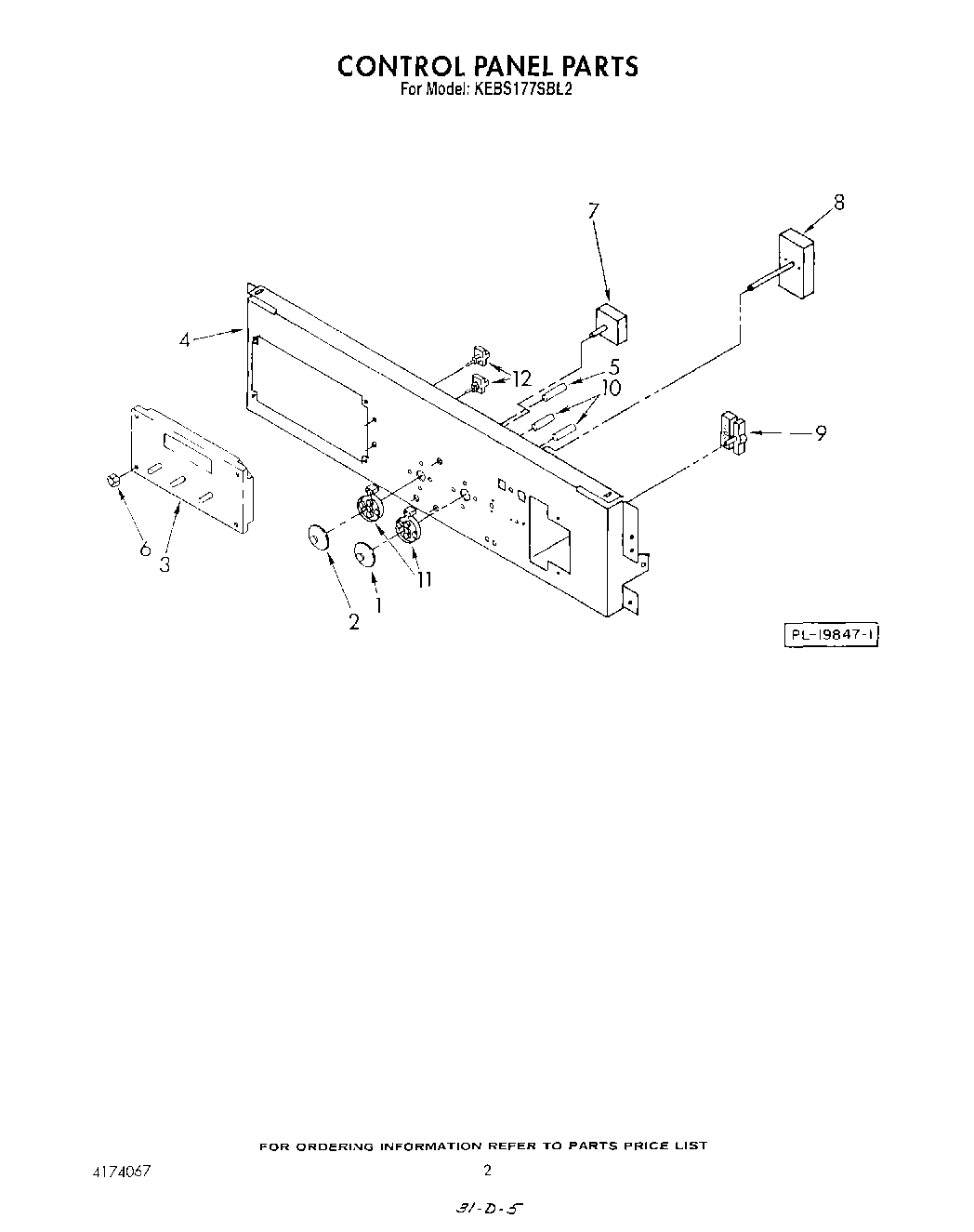

KEBS177SWH2 02 – CONTROL PANEL

Written by

Products

Position	Product
1	Thermostat Disc Upper Oven
2	Selector Disc Upper Oven
3	Clock
4	Mounting Panel
5	Indicator Light,
6	Nut, Timer (4)
7	Selector Switch Upper Oven
8	Thermostat, Upper Oven
9	Meat Probe Indicator Assy.
10	Indicator Light (2)
11	Back Light Housing
12	Wiring Harness Low Temp KEBS177
12	Switch, Heat
12	Wiring Harness High Temp KEBS177
