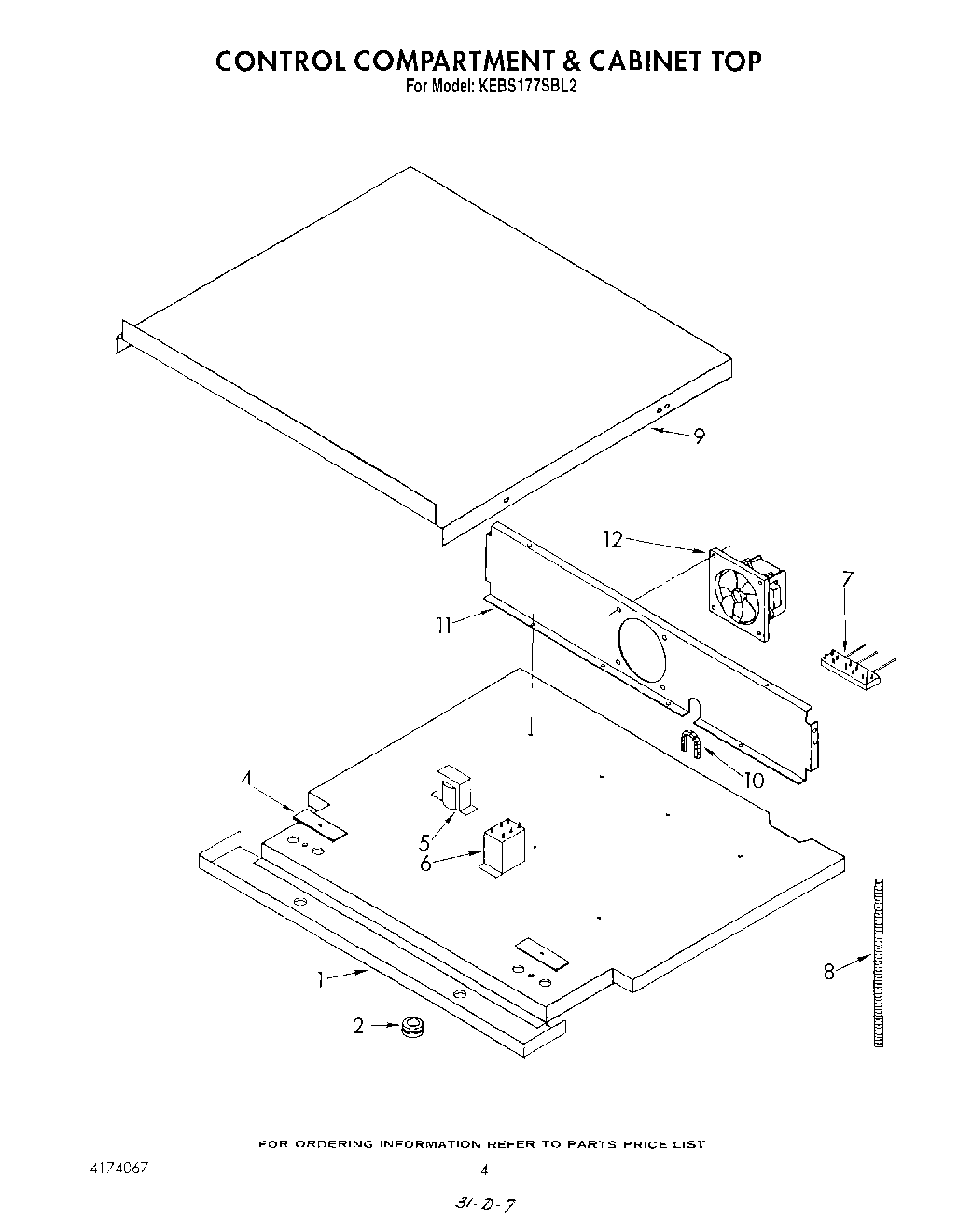

KEBS177SWH2 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel
2	Bushing
4	Hole Cover
5	Transformer, Meat Probe Model KEBS145SBL1
5	Control Panel, Glass
6	Relay, Meat Probe
7	Terminal Block, Power Supply
8	Conduit, 1/2“ X 56“
9	Cabinet Top
10	Bushing, Flexible
11	Blower Mounting Panel
12	Blower
