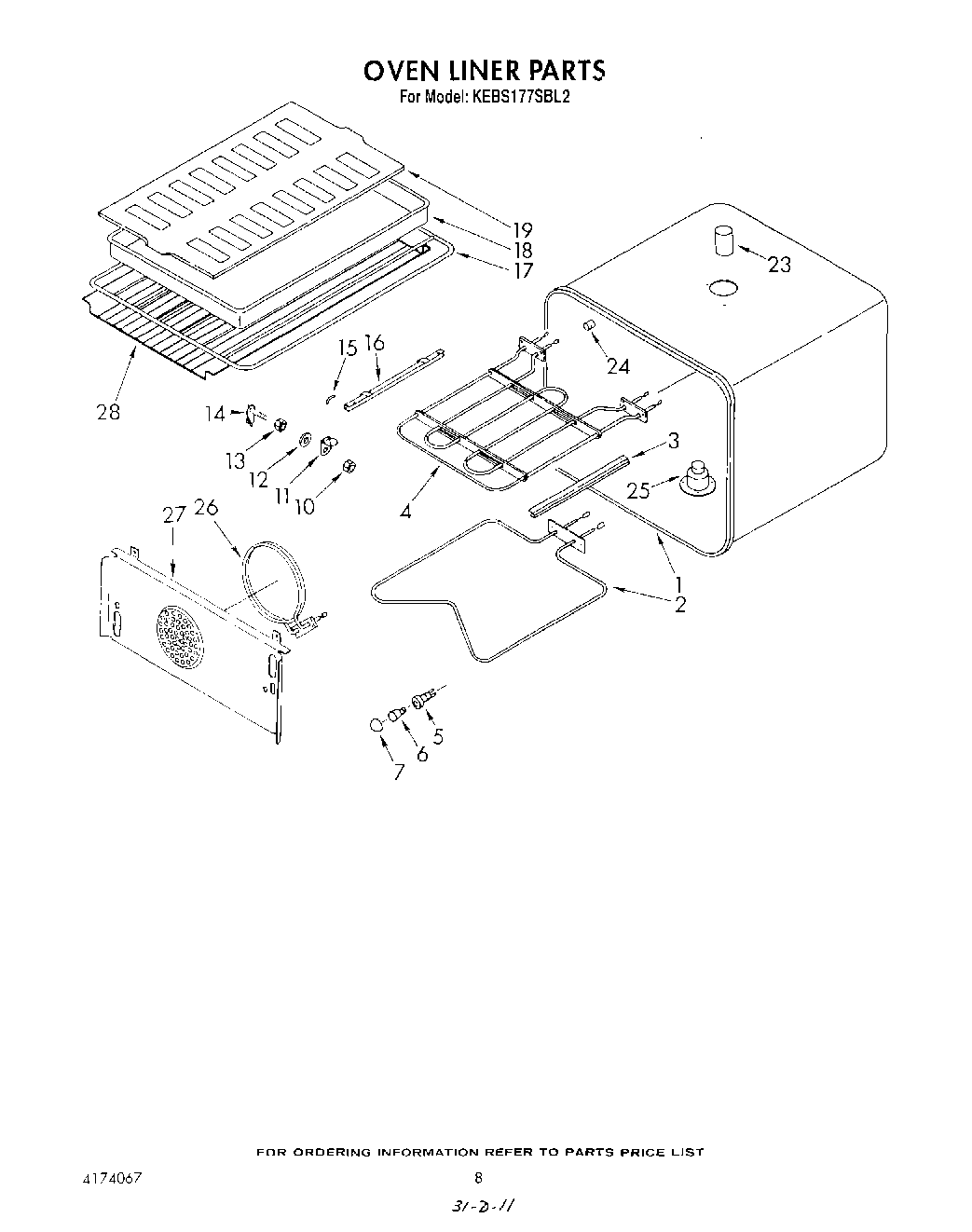

KEBS177SWH2 07 – OVEN LINERadmin2025-04-26T12:37:55+00:00KEBS177SWH2 07 – OVEN LINER
Products
| Position | Product |
|---|
| 1 | Oven Liner Upper Oven |
| 2 | WP3177420 Whirlpool Bake Element |
| 3 | Broiler Element Support-Right |
| 4 | Broiler Element |
| 5 | Base, Lamp |
| 6 | WP4173175 Whirlpool Light Bulb |
| 7 | Lens, Lamp |
| 10 | Lock-Nut, Cvr.Jack |
| 11 | Jack Cover |
| 12 | Washer |
| 13 | Nut, Hex Jam Model KEBS145SBL1 |
| 14 | Receptacle, Lighted Probe |
| 15 | Clip, Thermostat Bulb |
| 16 | Broiler Element Support-Left |
| 17 | Oven Rack |
| 18 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 23 | Vent Tube Extension |
| 24 | Cover, Cap Tube |
| 25 | Smoke Eliminator (Upper Oven) |
| 26 | Element, Convection |
| 27 | Cover, Fan |
| 28 | Meat Probe |
| 28 | Gasket, Meat Probe |
| 28 | Oven Rack, Offset |
