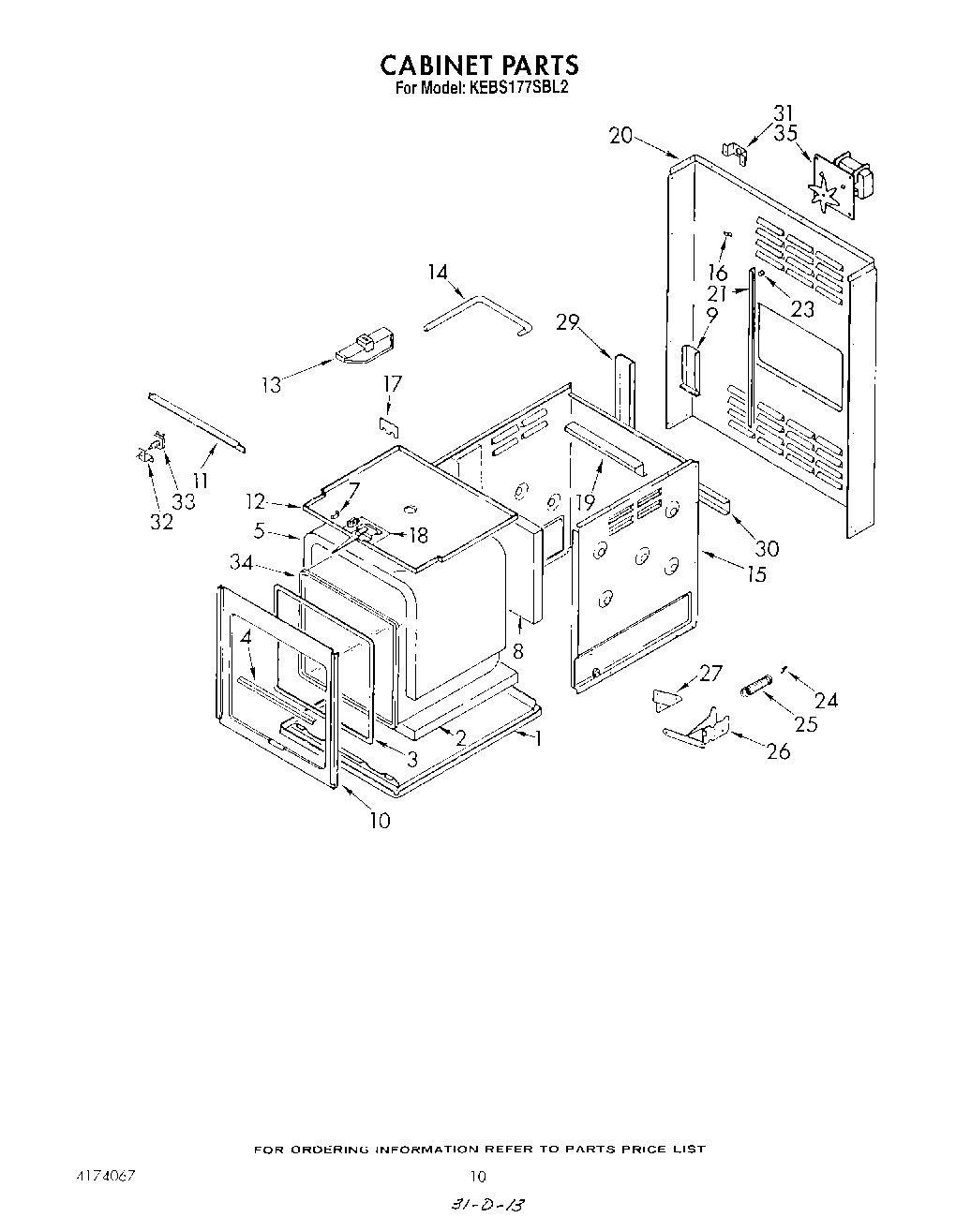

| 1 | Main Bottom |
| 2 | Insulation, Bottom |
| 3 | Door Gasket |
| 4 | Cover, Seal End |
| 5 | Insulation, Top and Sides |
| 7 | Knob, Latch Lever |
| 8 | Insulation, Rear |
| 9 | Rear Anchor |
| 10 | Front Frame |
| 11 | Control Frame Support |
| 12 | Compartment Top |
| 13 | Vent Box |
| 14 | Vent Tube (Upper Oven) |
| 15 | Cabinet Side, Upper Oven |
| 16 | Clamp, Conduit |
| 17 | Vent Tube Mounting Bracket |
| 18 | Latch Parts (See Latch Parts On Page 6 For Further Breakdown) |
| 19 | Air Baffle Channel |
| 20 | Cabinet Back |
| 21 | Cabinet Support (Right) |
| 21 | Cabinet Support (Left) |
| 23 | Spacer |
| 24 | Spring, Anchor |
| 25 | Spring, Door |
| 26 | Hinge Assembly |
| 27 | Cam Plate (Left Left) |
| 27 | Cam Plate (Right) |
| 29 | Support Bracket |
| 30 | Bracket, Support |
| 31 | Retainer, Insulation |
| 32 | Bracket, Oven Light Switch |
| 33 | Oven Light Switch |
| 34 | Oven Liner (See Page 8 For Breakdown) |
| 35 | Pocket Door Trim (Trim Kit - Single Oven) |
| 35 | WPL 4173016 |
| 35 | Air Duct (Upper Oven) (Right) |
| 35 | Air Duct (Upper Oven) (Left Air Duct (Lower Oven)) |
| 35 | Probe Cover |
| 35 | WPL 4173017 |
| 35 | Convection Fan (See Page 7 for Further Breakdown) |
