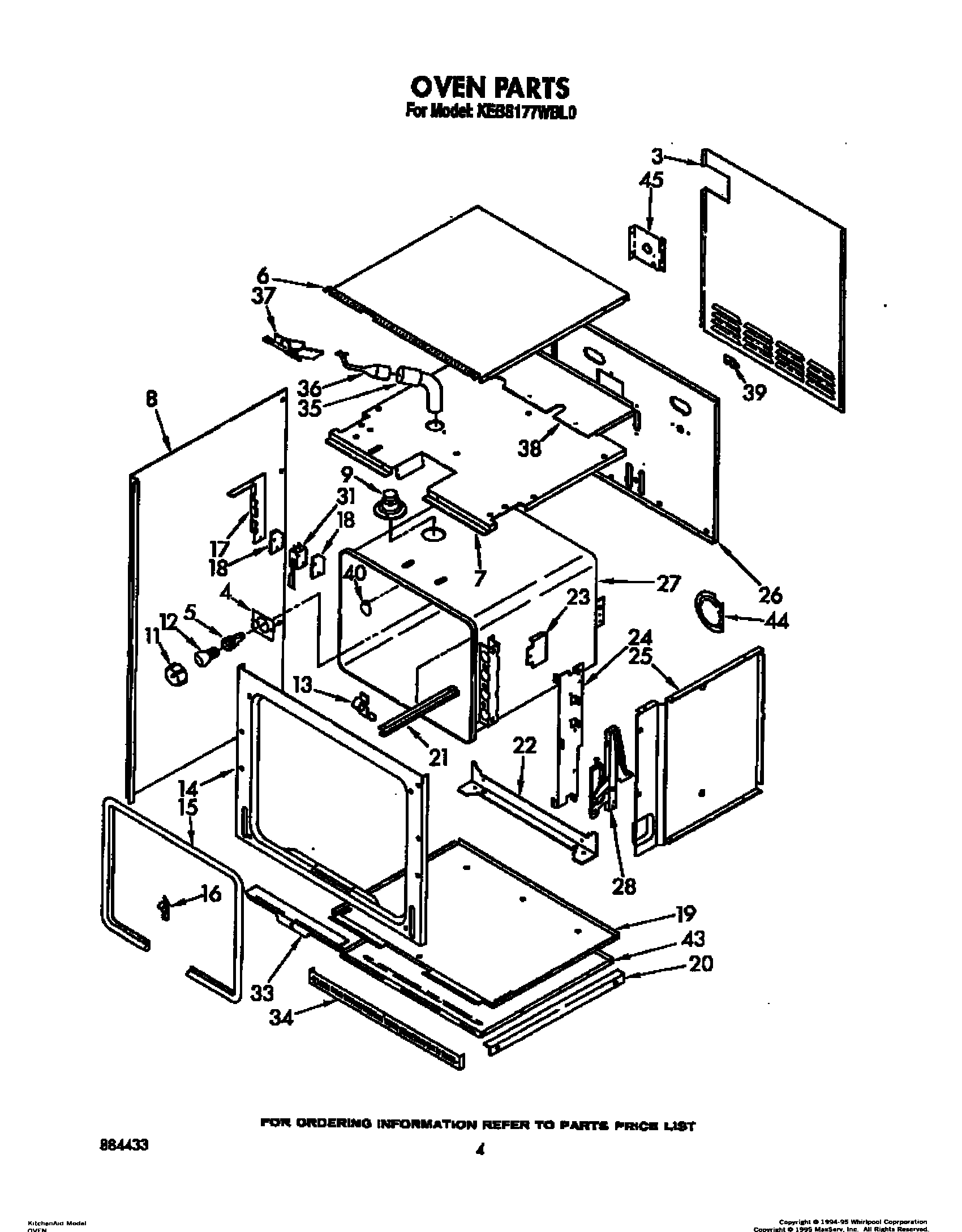

KEBS177WAL0 03 – OVEN

Products

Position	Product
3	Cabinet, Back
4	Plate, Mounti
5	Base, Lamp
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Smoke Eliminator (Upper Oven)
11	Lens, Lamp
12	WP4173175 Whirlpool Light Bulb
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw (3)
21	Broiler Element Support-Right
22	Support, Oven
23	Shield, Radiation
24	Screw, Black (2)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven (Convection)
28	Hinge, Door
28	Screw (4)
31	Switch, Door
31	Screw (2)
31	Nut (2)
32	Insulator, Switch
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
43	Bottom, Oven
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Bracket, Conduit
45	Insulation, Back
45	Insulation, Oven
