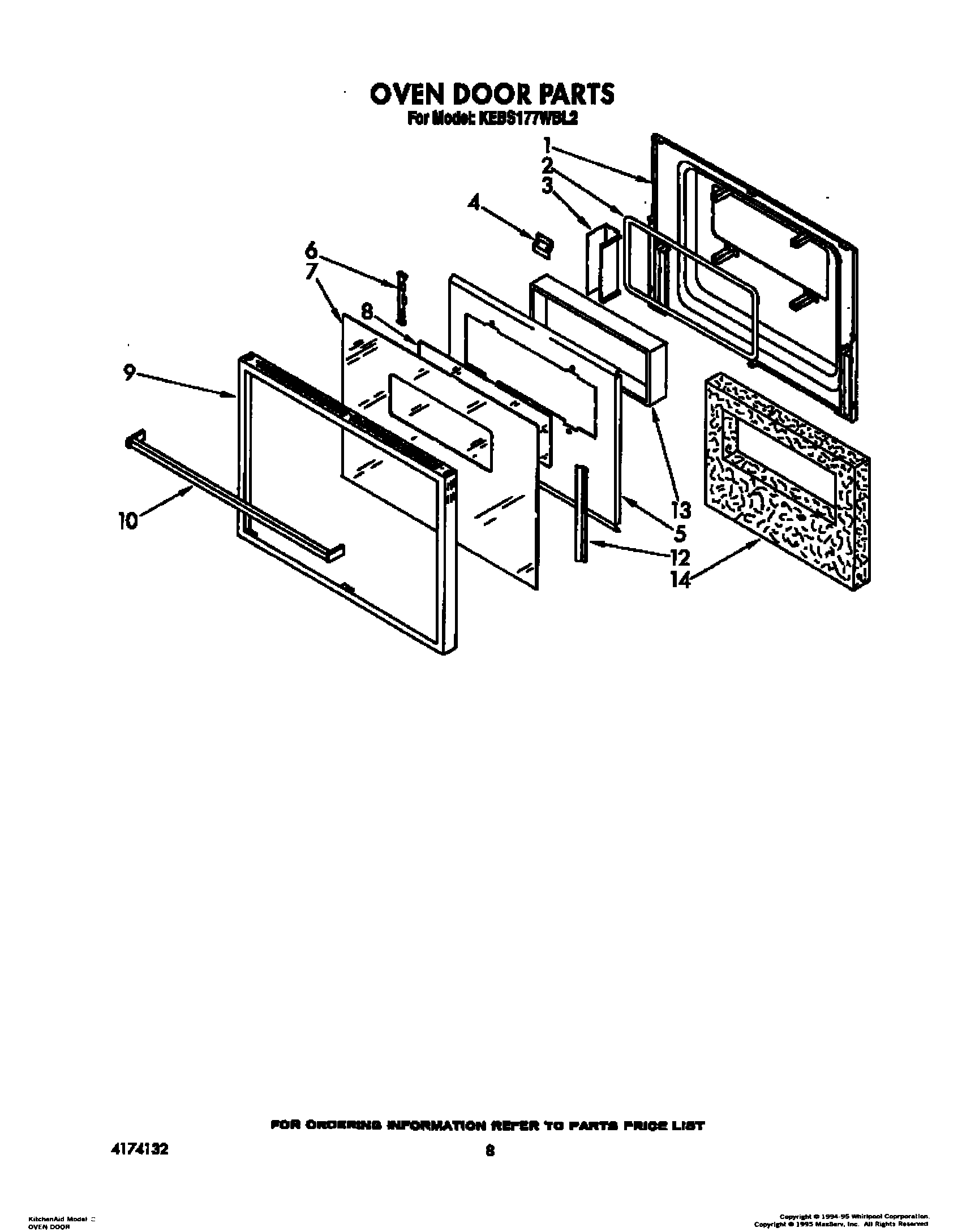

KEBS177WAL2 05 – OVEN DOOR
Written by
in
KEBS177WAL2 05 – OVEN DOOR
Products
Position
Product
1
Liner, Door
2
Seal, Window
3
Spacer, Window
4
Latch, Strike
5
Insulation, Retainer
6
WP90767 Whirlpool Screw
6
Bracket, Glass Mtg.
7
Glass, Door
7
Glass, Door (White)
7
Glass, Door (Almond)
8
Glass, Reflective
9
Frame, Door (White)
9
Frame, Door (Almond)
9
Frame, Door
10
Handle, Door (White)
10
Handle, Door
10
Handle, Door (Screw)
10
Handle, Door (Almond)
12
Retainer, Glass
12
Screw (4)
13
Window Package
14
Screw, Black (2)
14
Vent, Lower Trim (Screw (2))
14
Insulation, Door
←
