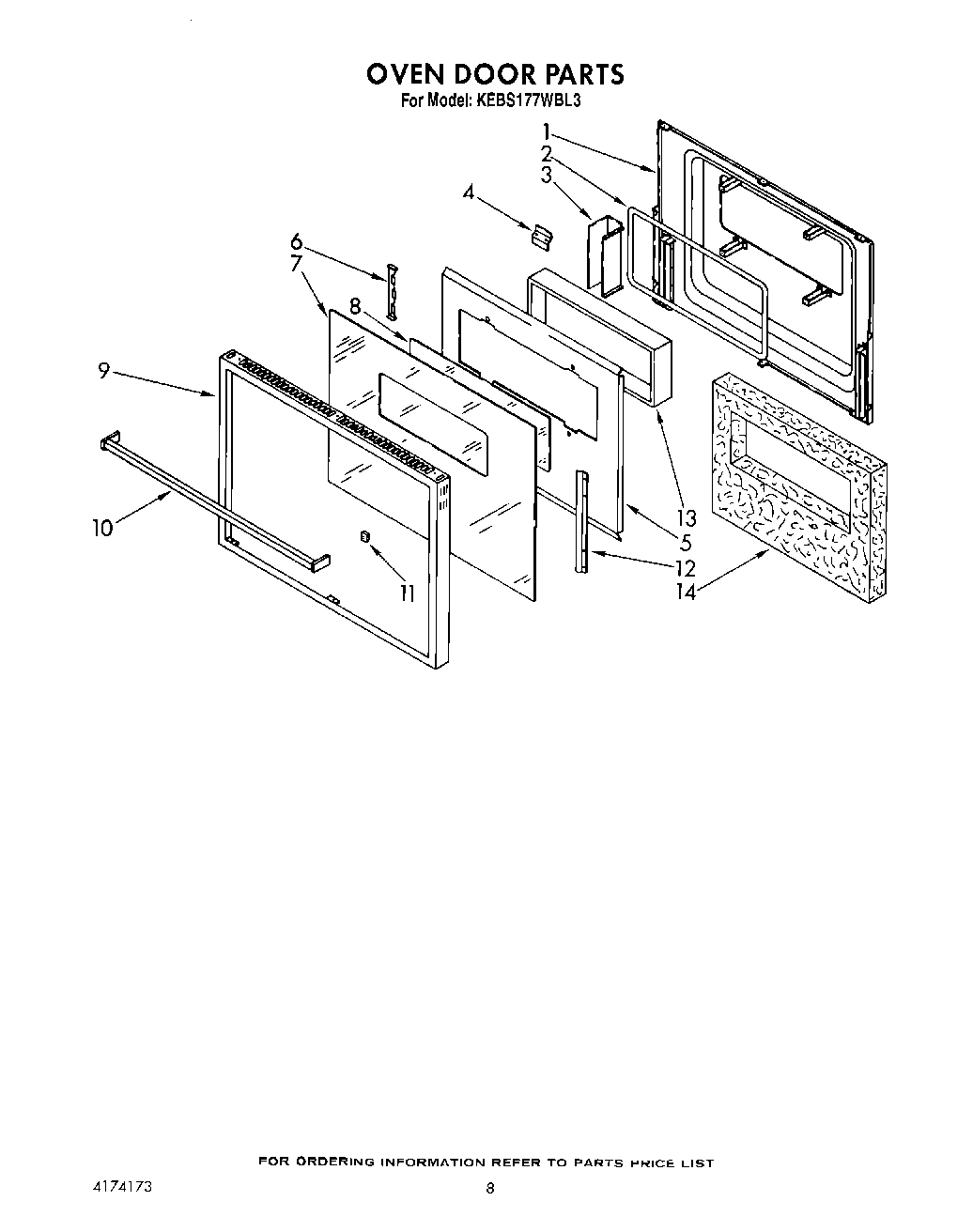

KEBS177WAL3 05 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (White)
7Glass, Door (Almond)
7Glass, Door
8Glass, Reflective
9Frame, Door (White)
9Frame, Door (Almond)
9Frame, Door
10Handle, Door (White)
10Handle, Door
10Handle, Door (Screw)
10Handle, Door (Almond)
11Spacer, Window
12Screw (6)
12Retainer, Glass
13Window Package
14Screw, Black (2)
14Vent, Lower Trim (Screw (2))
14Insulation, Door
