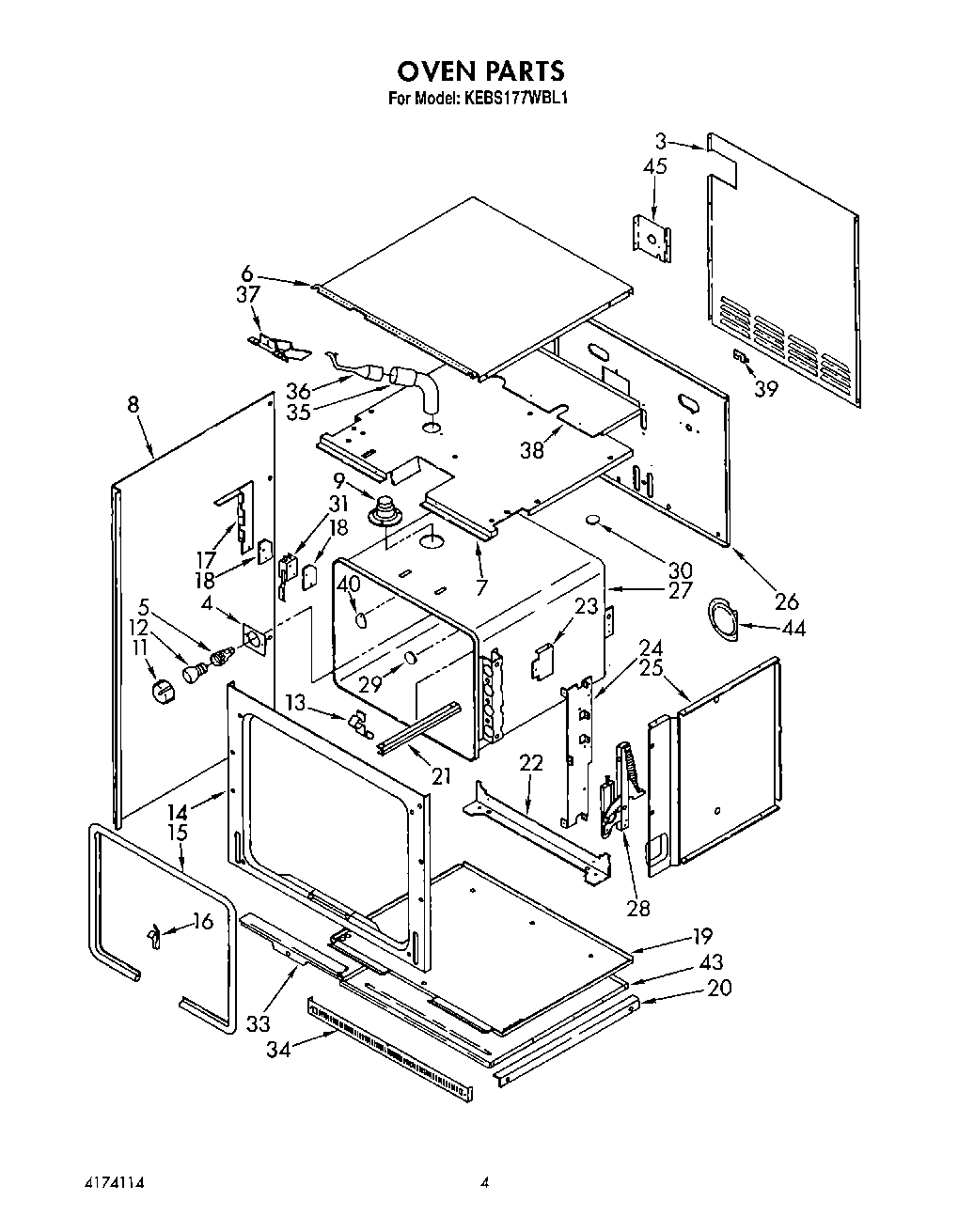

KEBS177WBL1 03 – OVEN

Products

Position	Product
3	Cabinet, Back
4	Plate, Mounti
5	Base, Lamp
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Smoke Eliminator (Upper Oven)
11	Lens, Lamp
12	WP4173175 Whirlpool Light Bulb
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Broiler Element Support-Right
21	Screw (3)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Screw (4)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
38	Extension, Shelf
39	Screw
39	Cover, Cap Tube
40	Plate, Cover
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Insulation, Back
45	Insulation, Oven
45	Bracket, Conduit
