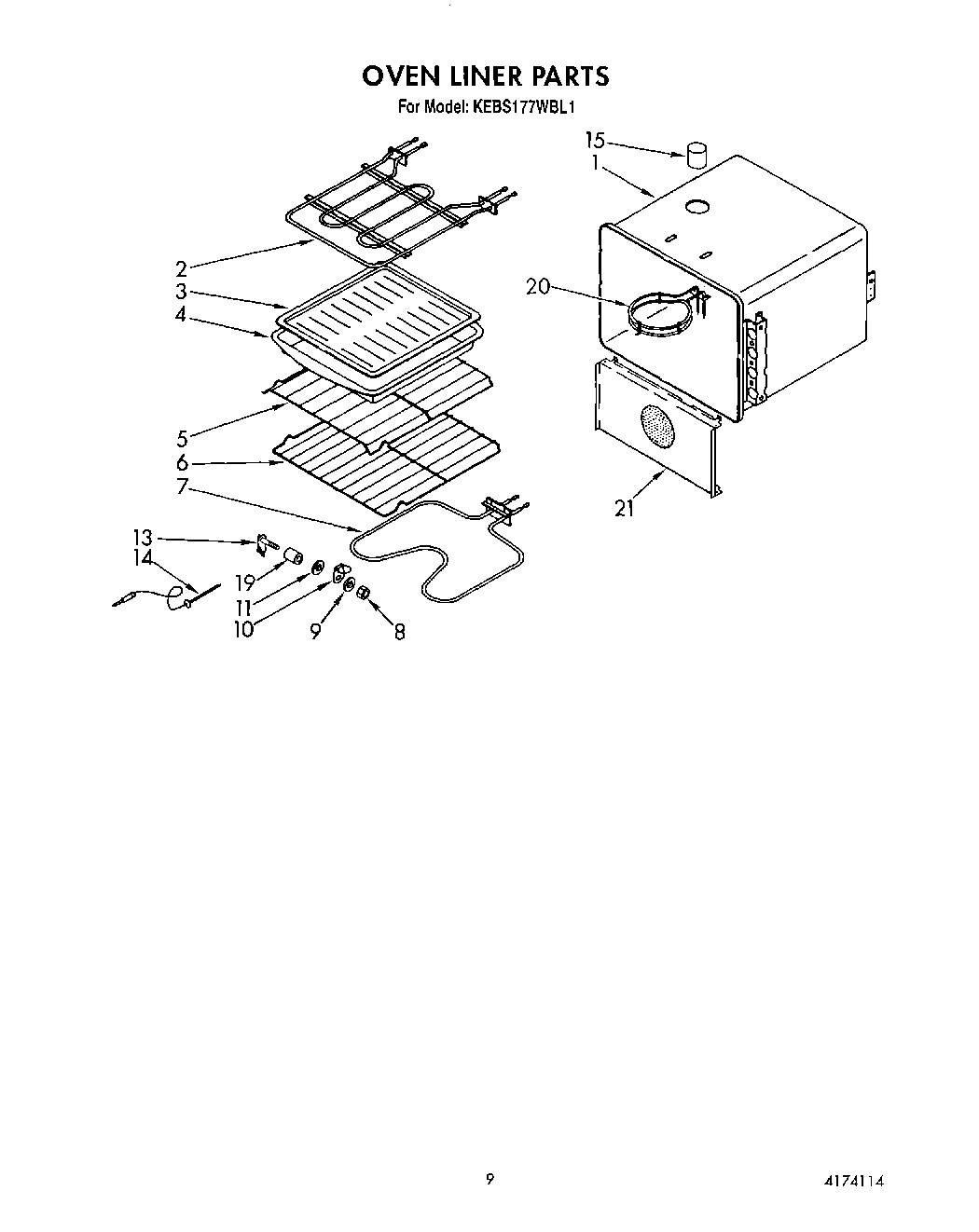

KEBS177WBL1 06 – OVEN LINER

Products

Position	Product
1	Liner, Oven
2	Element, Broil
4	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Oven
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Washer
12	Nut, Hex Jam (2)
13	Receptacle, Lighted Probe
14	Meat Probe
15	Vent Tube Extension
19	Spacer – Tubing
20	Element, Convection
21	Screw (3)
21	Cover, Fan
