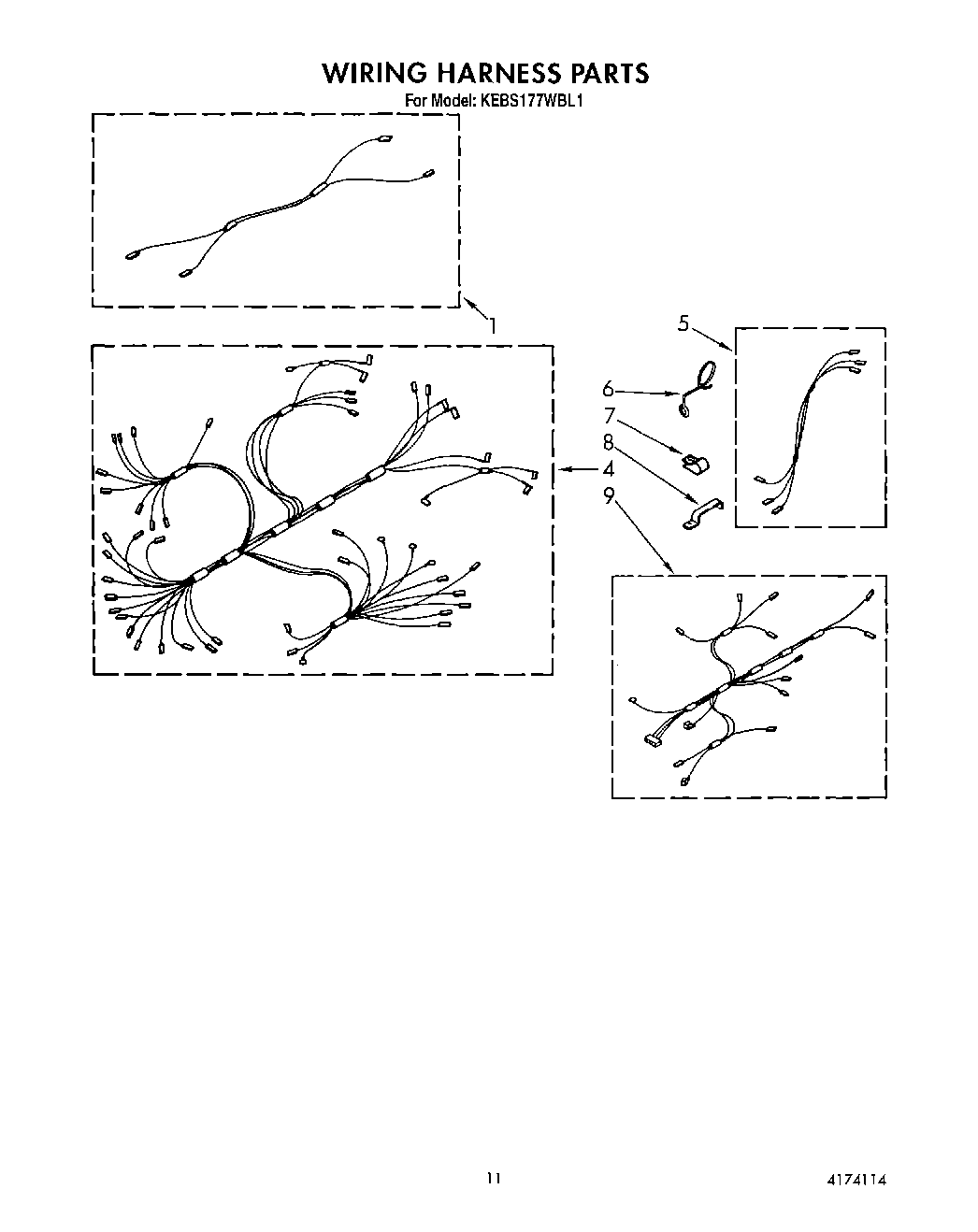

KEBS177WBL1 08 – WIRING HARNESS

Written by

Products

Position	Product
1	Wiring Harness (Door Switch) Upper)
4	Harness Wire (Upper Oven)
5	Harness Adapter Meat Probe
6	WP90767 Whirlpool Screw
6	Standoff, Wire
7	WP308605 Whirlpool Refrigerator Clamp
8	WP112432 Whirlpool Nut Assembly
8	7111P002-60 Whirlpool Clamp
9	Harness, Wiring (T/C Meat Probe)
