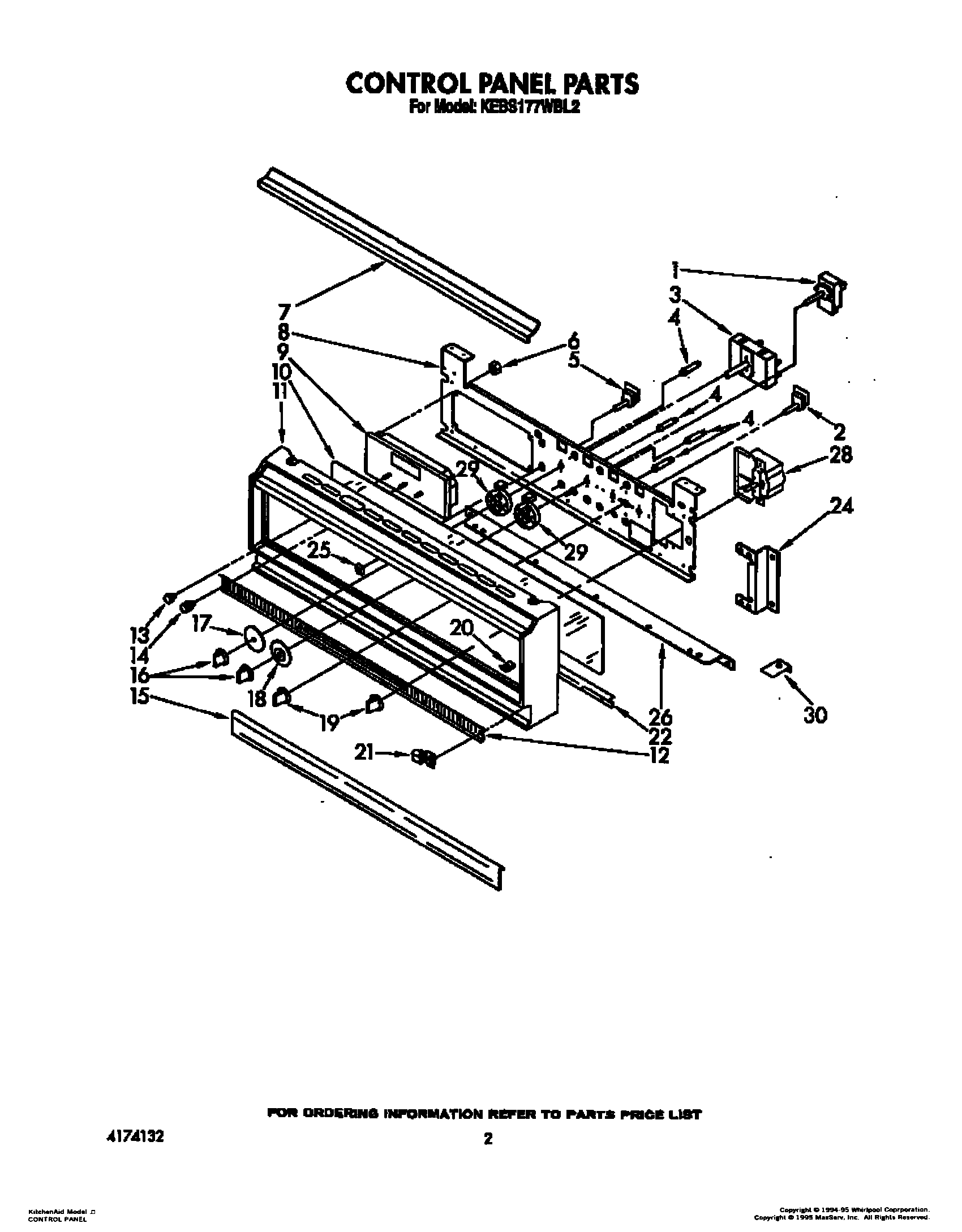

KEBS177WBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3178195
	WPL LIT4174132
	WPL LIT3178199
	WPL LIT3177060
1	Thermostat, upper
2	Switch, Rotory
3	Switch, Selector
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light (White)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top (Black)
7	Insert, Top (White)
7	Insert, Top (Almond)
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel (Almond)
10	Glass, Control Panel (Black)
10	Glass, Control Panel (White)
11	Frame, Control Panel (White)
11	Frame, Control Panel (Almond)
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Timer
13	Knob, Clock
14	Knob, Timer (2)
14	Knob, Clock (2)
15	Handle (Black)
15	White
15	Screw (5)
15	Door, Latch Handle (Almond)
16	Knob, Control
17	Disc, Selector (Upper)
18	Disc, Thermostat (Self Clean) (2)
19	Knob
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Screw (6)
22	Retainer
24	Bracket, Control Panel
25	Bezel, Switch (White)
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
28	Screw,
28	Meat Probe Indicator Assy.
29	Backlight (2)
30	Clip, Spacer
