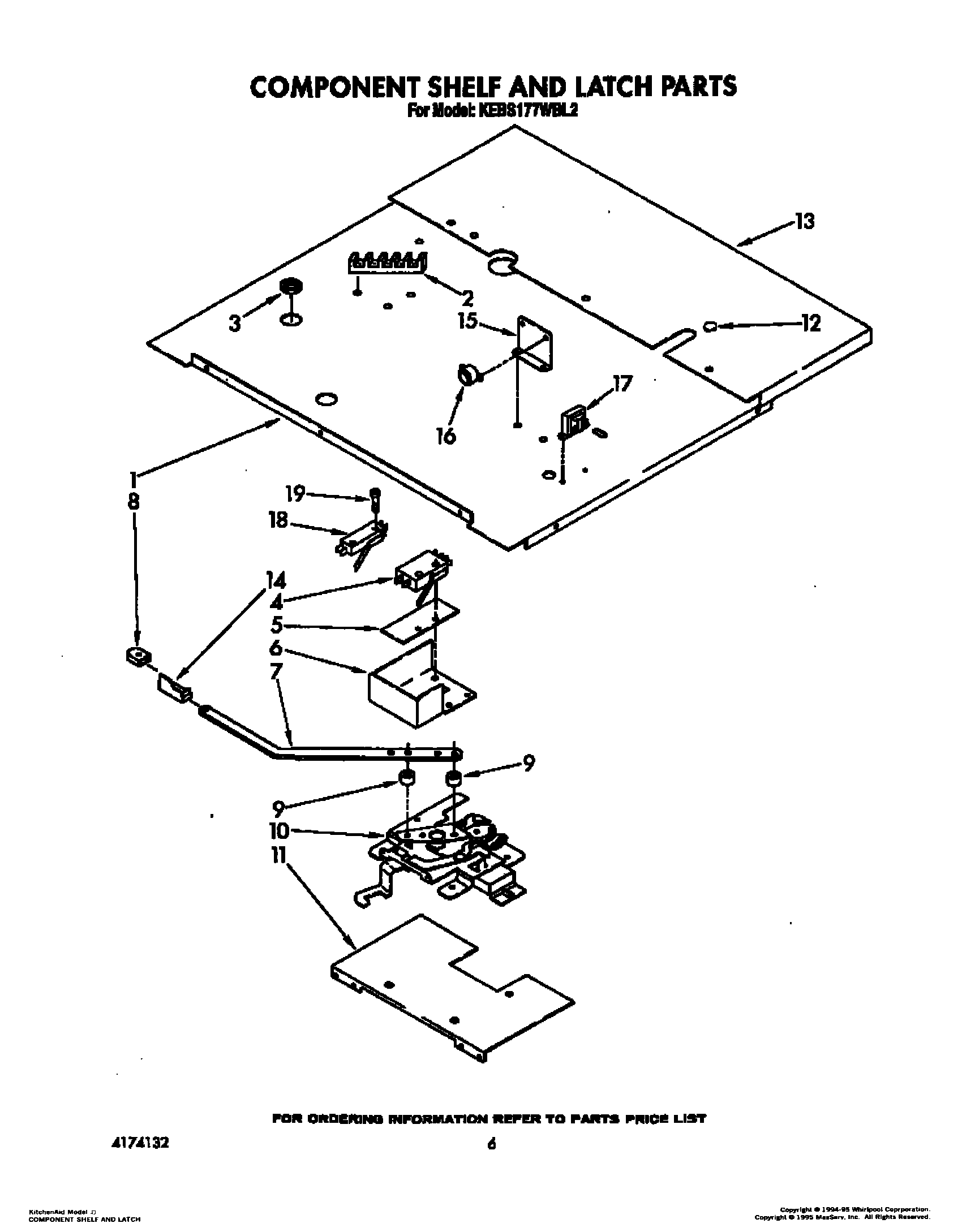

KEBS177WBL2 04 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
3	Bushing
4	Switch, Latch
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Knob, Latch Handle
9	Screw (2)
9	Screw, 8-18 X 3/4 (4)
9	Spacer, Handle (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
13	WP90767 Whirlpool Screw
14	WP488234 Whirlpool Air Conditioner Screw
14	Support, Latch
15	Bracket, Buzzer
15	Screw
15	Screw,
16	W10841059 Whirlpool Screw
16	Buzzer, Meat Probe
17	Transformer
17	WP3177991 Whirlpool Screw
18	Switch, Latch
19	Screw (2)
