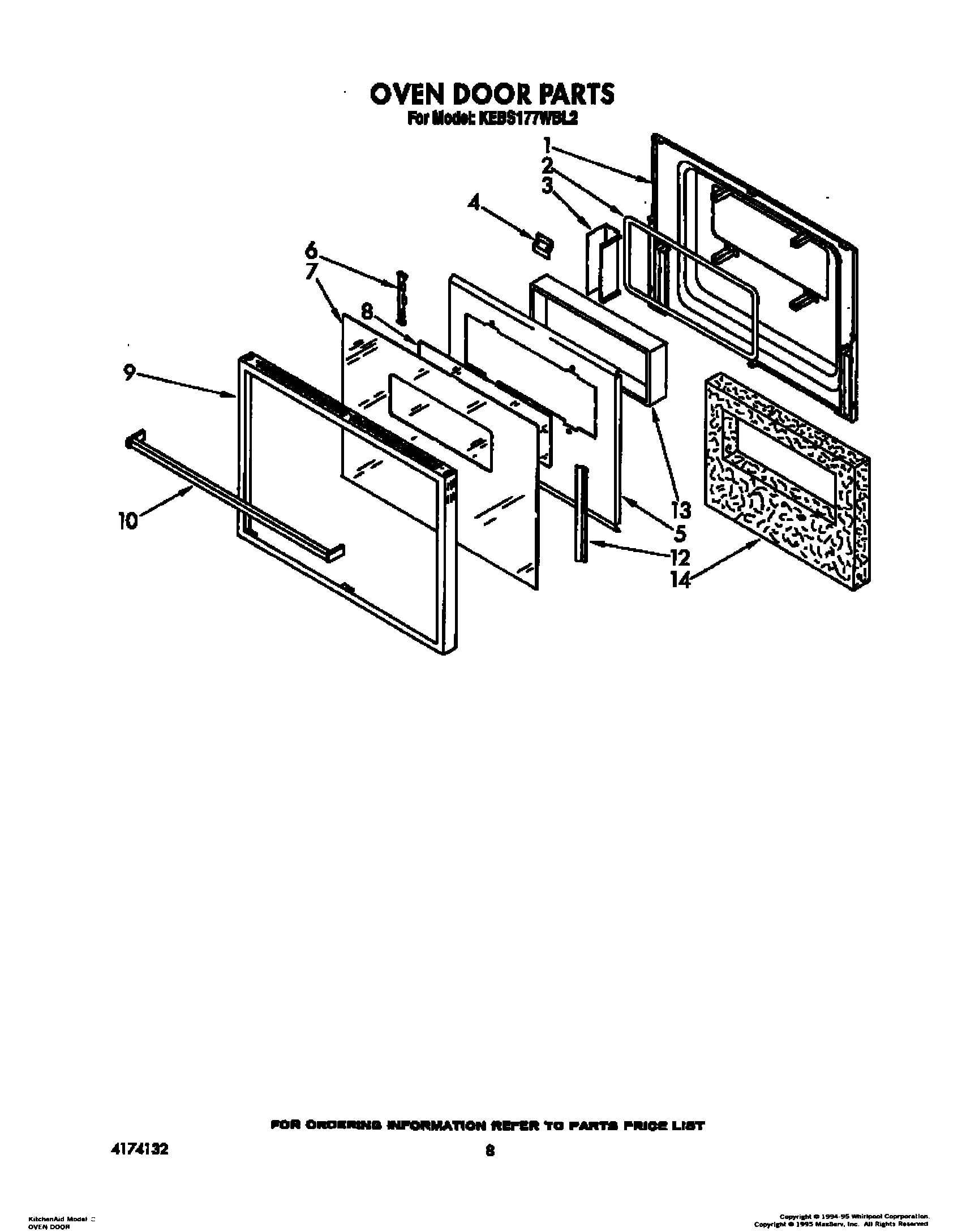

KEBS177WBL2 05 – OVEN DOOR

KEBS177WBL2 05 – OVEN DOOR

Written by

in

KEBS177WBL2 05 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
7Glass, Door (White)
7Glass, Door (Almond)
8Glass, Reflective
9Frame, Door (White)
9Frame, Door (Almond)
9Frame, Door
10Handle, Door (White)
10Handle, Door
10Handle, Door (Screw)
10Handle, Door (Almond)
12Retainer, Glass
12Screw (4)
13Window Package
14Screw, Black (2)
14Vent, Lower Trim (Screw (2))
14Insulation, Door
