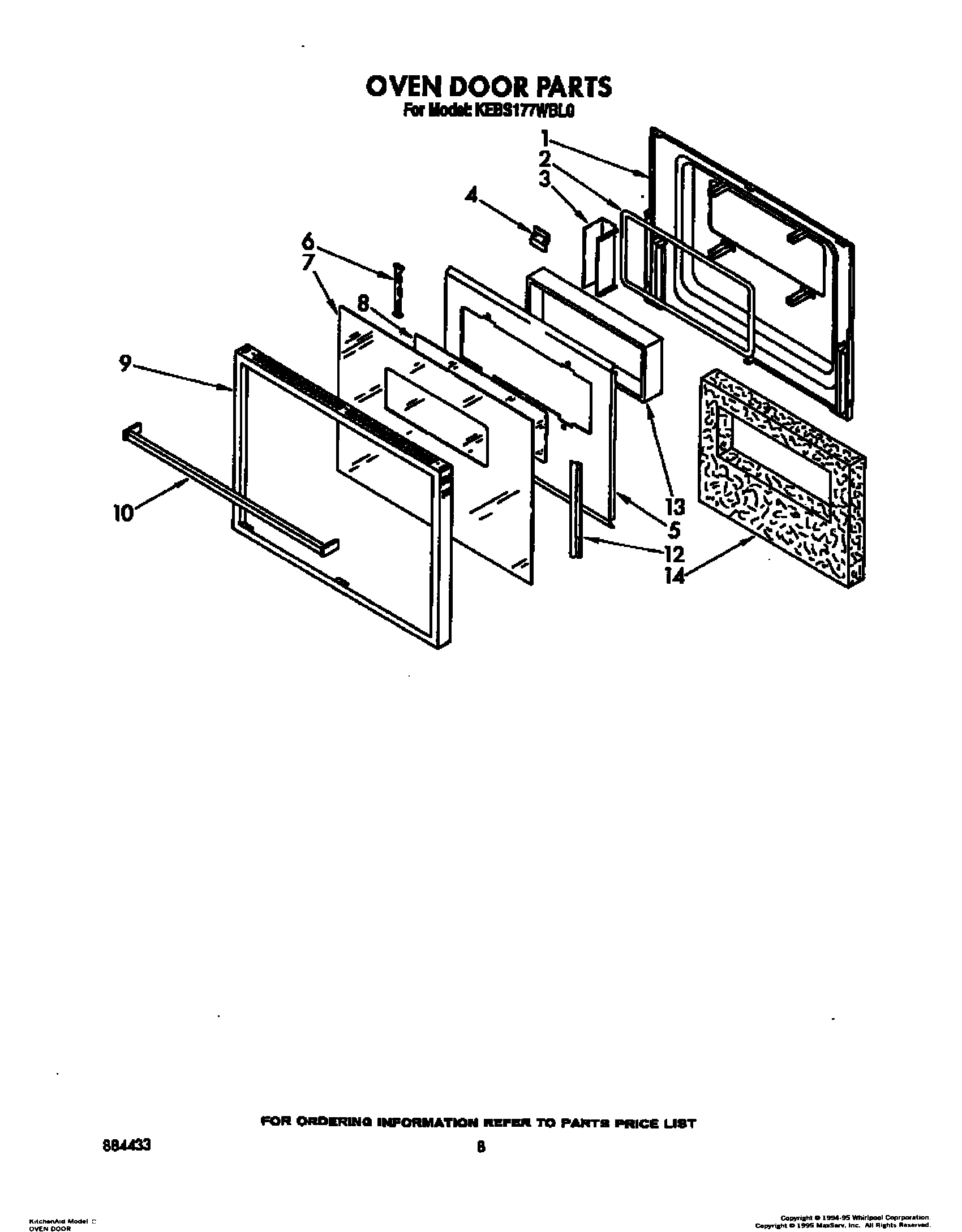

KEBS177WWH0 05 – OVEN DOOR

KEBS177WWH0 05 – OVEN DOOR

Written by

in

KEBS177WWH0 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
7	Glass, Door (White)
7	Glass, Door (Almond)
8	Glass, Reflective
9	Frame, Door (White)
9	Frame, Door (Almond)
9	Frame, Door
10	Handle, Door (White)
10	Handle, Door
10	Handle, Door (Almond)
10	Handle, Door (Screw)
12	Screw (6)
12	Retainer, Glass
13	Window Package
14	Vent, Lower Trim (Screw (2))
14	Insulation, Door
14	Screw, Black (2)
