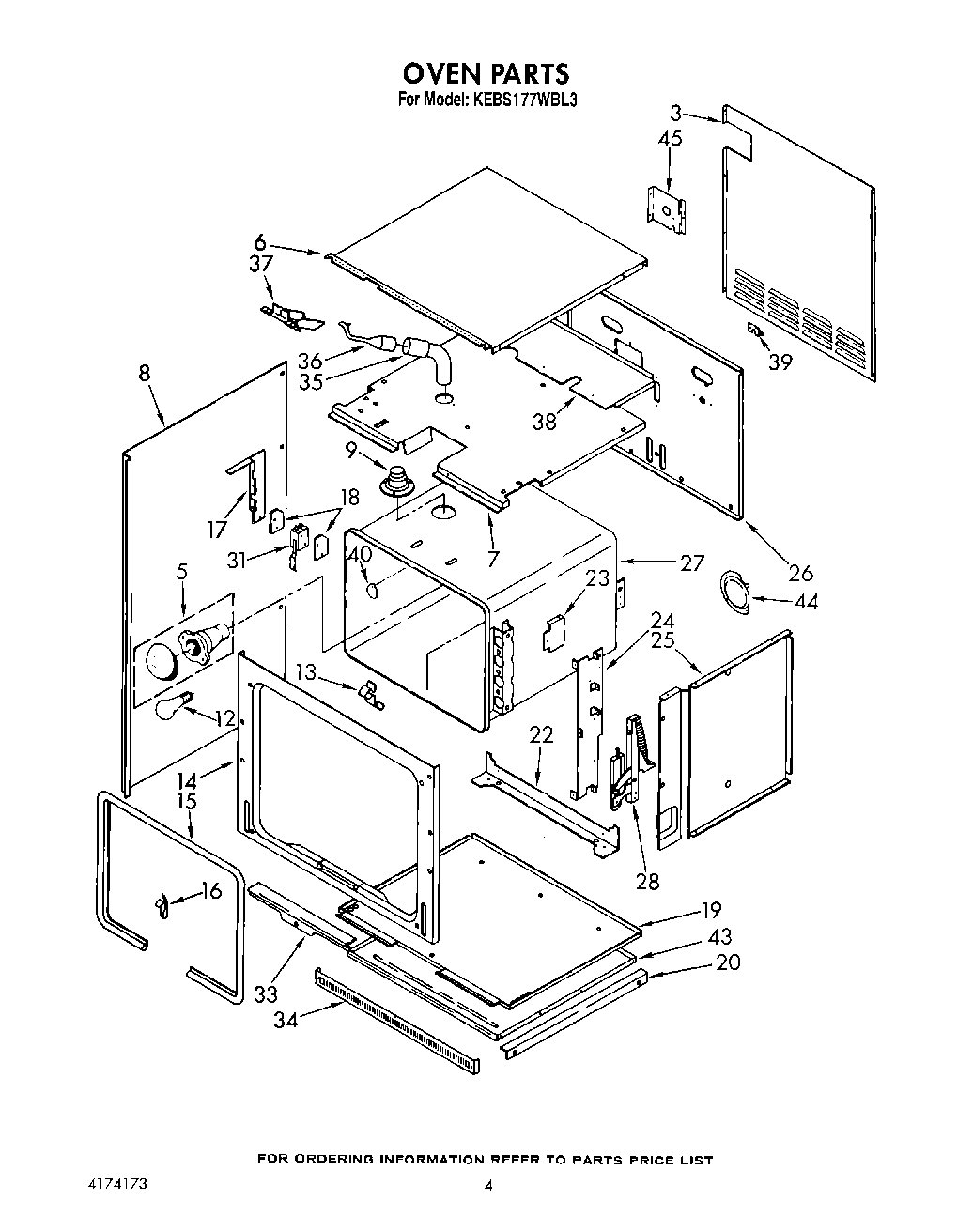

KEBS177WWH3 03 – OVEN, OPTIONAL

Products

Position	Product
3	Cabinet, Back
5	W11594027 Whirlpool Range Oven Light Socket
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Screw (3)
9	Tube, Vent
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
31	Screw (2)
31	Nut (2)
31	Switch, Door
32	Insulator, Switch
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Leveler (Thinner)
45	Wire (12 Ga. 150 c Black)
45	Wire (14 Ga. 150 c Brown)
45	Wire (14 Ga. 150 c Orange)
45	Wire (14 Ga. 150 c Yellow)
45	1
45	350956 Whirlpool Spray Assembly
45	72017 Whirlpool Appliance Touch-Up Paint White
45	799344 Whirlpool Refrigerator Paint
45	WP72107 Whirlpool Touchup
45	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
45	WPL 832985
45	WPL 591014
45	WPL 350806
45	Wire (14 Ga. 200 c Brown)
45	Wire (14 Ga. 150 c Green)
45	18 Ga. 80~c Rating (Red)
45	350930 Whirlpool White Spray Paint
45	Wire (14 Ga. 150 c Blue)
45	WP261869 Whirlpool Microwave Paint
45	WP482338 Whirlpool Refrigerator Adhesive
45	72032 Whirlpool Touch Up Paint Black
45	Wire, 25“ Roll (White 14 GA.)
45	Wire, 25` Roll (Red 14 Ga.)
45	Wire, 25` Roll (Black 14 Ga.)
45	Enamal, Toast (1 Qt. Uncut)
45	WPL 799832
45	350942 Whirlpool Spray Paint
45	WPL 72112
45	Paint, Spray (13 Oz.) (Platinum)
45	Toast
45	242831 Whirlpool Oven Wire
45	Insulation, Back
45	Insulation, Oven
45	285006 Whirlpool Spray
45	Almond (Uncut)
45	72113 Whirlpool Touch-Up Paint
45	Golden Harvest
45	Golden Harvest (Uncut)
45	Bracket, Conduit
45	Platinum (Uncut)
