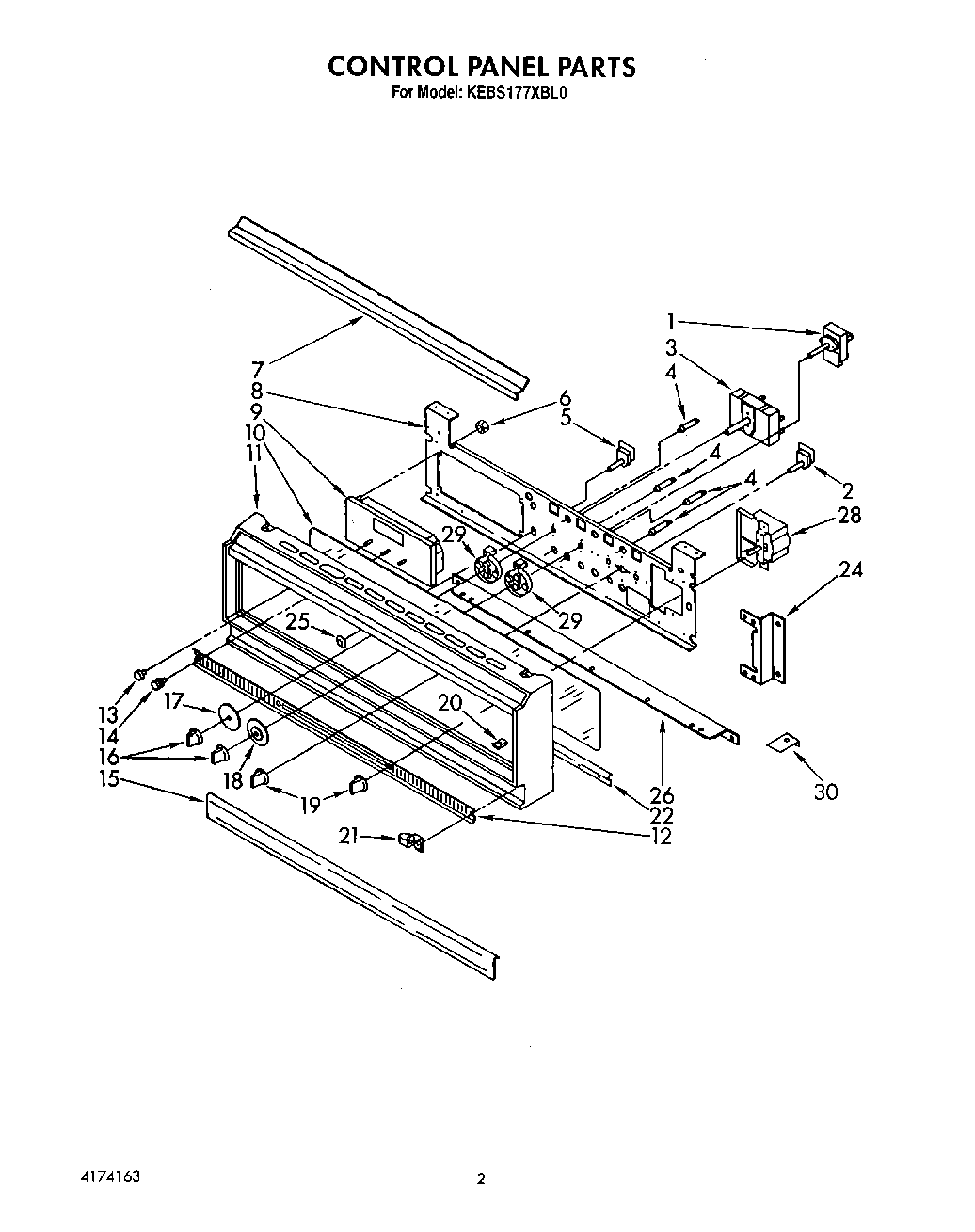

KEBS177XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

KEBS177XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBS177XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3181352
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL LIT3178195
	WP482338 Whirlpool Refrigerator Adhesive
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	WPL LIT3178199
	WPL 3171507
	WPL LIT4174163
	Cookbook T/C Oven
	Rotisserie Kit
	WPL 832985
	WPL 591014
	WPL 350806
	1
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	350930 Whirlpool White Spray Paint
	WPL 72112
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
	Wire, 25“ Roll (White 14 GA.)
	WPL 799832
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
1	Thermostat, upper
2	Switch, Rotory
3	WP486579 Whirlpool Air Conditioner Screw
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light (White)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top (Almond)
7	Insert, Top (Black)
7	Insert, Top (White)
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel (Black)
10	Glass, Control Panel (Almond)
10	Glass, Control Panel (White)
11	Frame, Control Panel (Black)
11	Frame, Control Panel (Almond)
11	Frame, Control Panel (White)
12	Insert, Vent
13	Knob, Timer
14	Knob, Timer (2)
15	Door, Latch Handle (Almond)
15	White
15	Screw (5)
15	Handle (Black)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean) (2)
19	Knob
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Retainer
22	Screw (6)
24	Bracket, Control Panel
25	Bezel, Switch (White)
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
28	Indicator, Light Meat Probe
28	Screw,
29	Backlight (2)
30	Clip, Spacer
