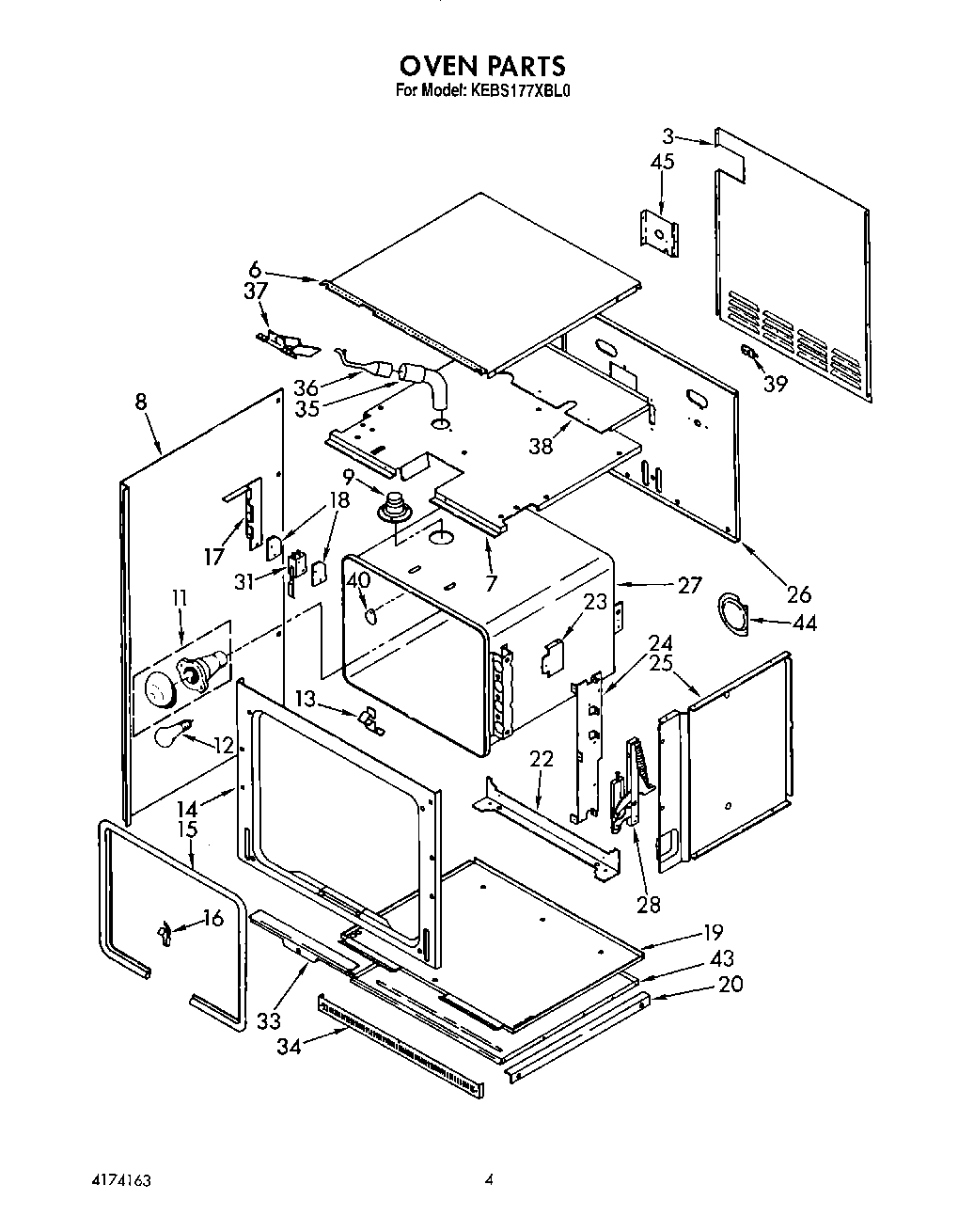

KEBS177XBL0 03 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Plug, Button
30	Plug Button (3/8“ Hole)
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
45	Insulation, Back
45	Insulation, Oven
