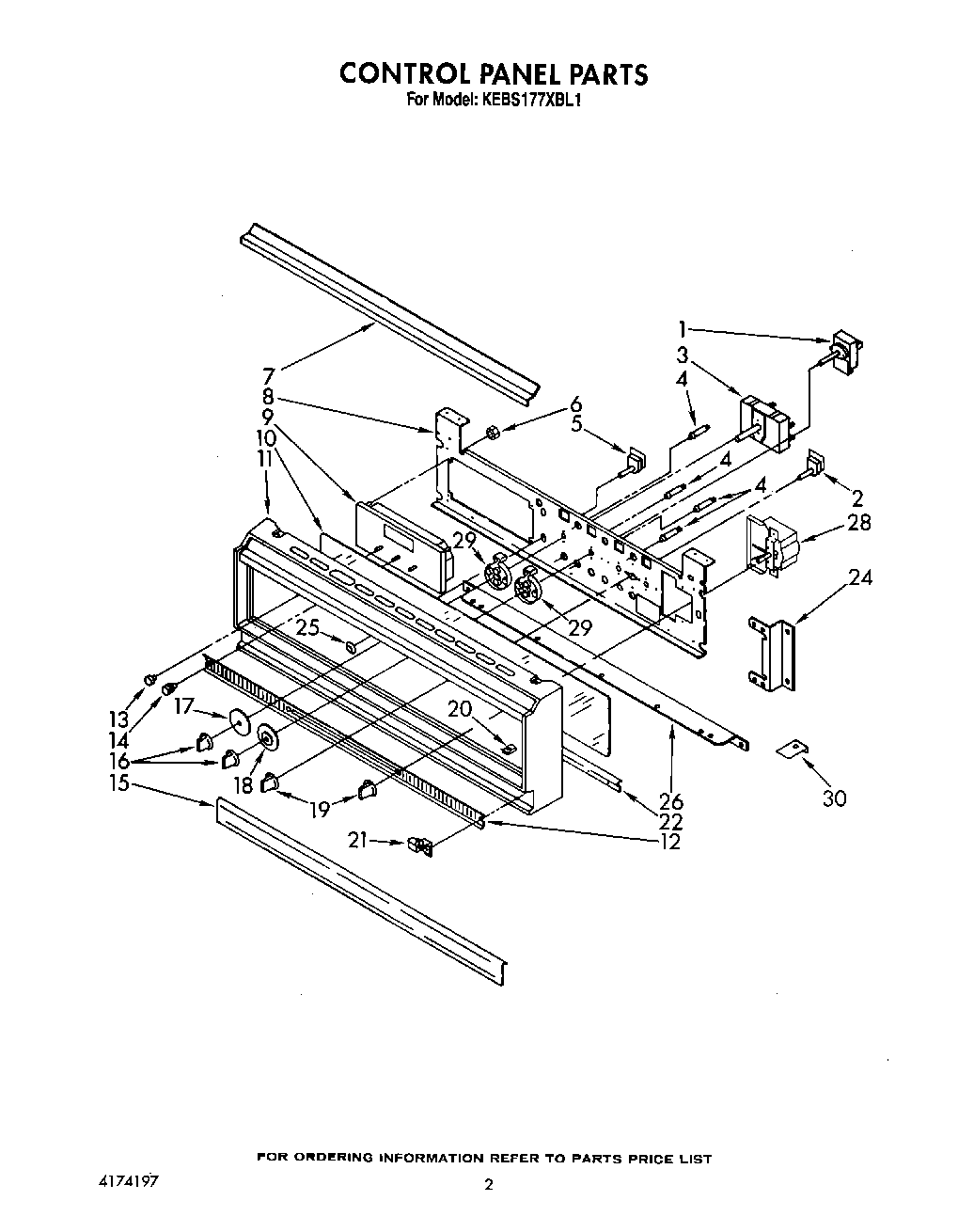

KEBS177XBL1 02 – CONTROL PANEL, LIT/OPTIONAL
Written by
in
KEBS177XBL1 02 – CONTROL PANEL, LIT/OPTIONAL
Products
Position
Product
WPL LIT3185201
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
WPL LIT3178195
WP482338 Whirlpool Refrigerator Adhesive
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL LIT3181352
WPL 3171507
WPL LIT4174197
Cookbook T/C Oven
Rotisserie Kit
WPL 832985
WPL 591014
WPL 350806
1
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
350930 Whirlpool White Spray Paint
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest (Uncut)
Golden Harvest
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350942 Whirlpool Spray Paint
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WPL 799832
Wire, 25` Roll (Black 14 Ga.)
1
Thermostat, upper
2
Switch, Rotory
3
WP486579 Whirlpool Air Conditioner Screw
3
Switch, Selector
4
Indicator Light, Oven (Lower Oven)
5
Switch, Oven Light (White)
5
Switch, Oven Light
6
Nut, Timer (4)
7
Insert, Top (Almond)
7
Insert, Top (Black)
7
Insert, Top (White)
8
Bracket, Control
9
Timer, Electronic
10
Glass, Control Panel (Black)
10
Glass, Control Panel (Almond)
10
Glass, Control Panel (White)
11
Frame, Control Panel (Black)
11
Frame, Control Panel (Almond)
11
Frame, Control Panel (White)
12
Insert, Vent
13
Knob, Timer
14
Knob, Timer (2)
15
Door, Latch Handle (Almond)
15
White
15
Screw (5)
15
Handle (Black)
16
Knob, Control
17
Disc, Selector
18
Disc, Thermostat (Self Clean) (2)
19
Knob
20
nut (3)
21
Hinge, Door (2)
21
Door, Latch Handle (Screw (2))
22
Retainer
22
Screw (6)
24
Bracket, Control Panel
25
Bezel, Switch (White)
25
Bezel, Oven Light Switch
26
Support, Frame
26
WP3177991 Whirlpool Screw
28
Indicator, Light Meat Probe
28
Screw,
29
Backlight (2)
30
Clip, Spacer
←
