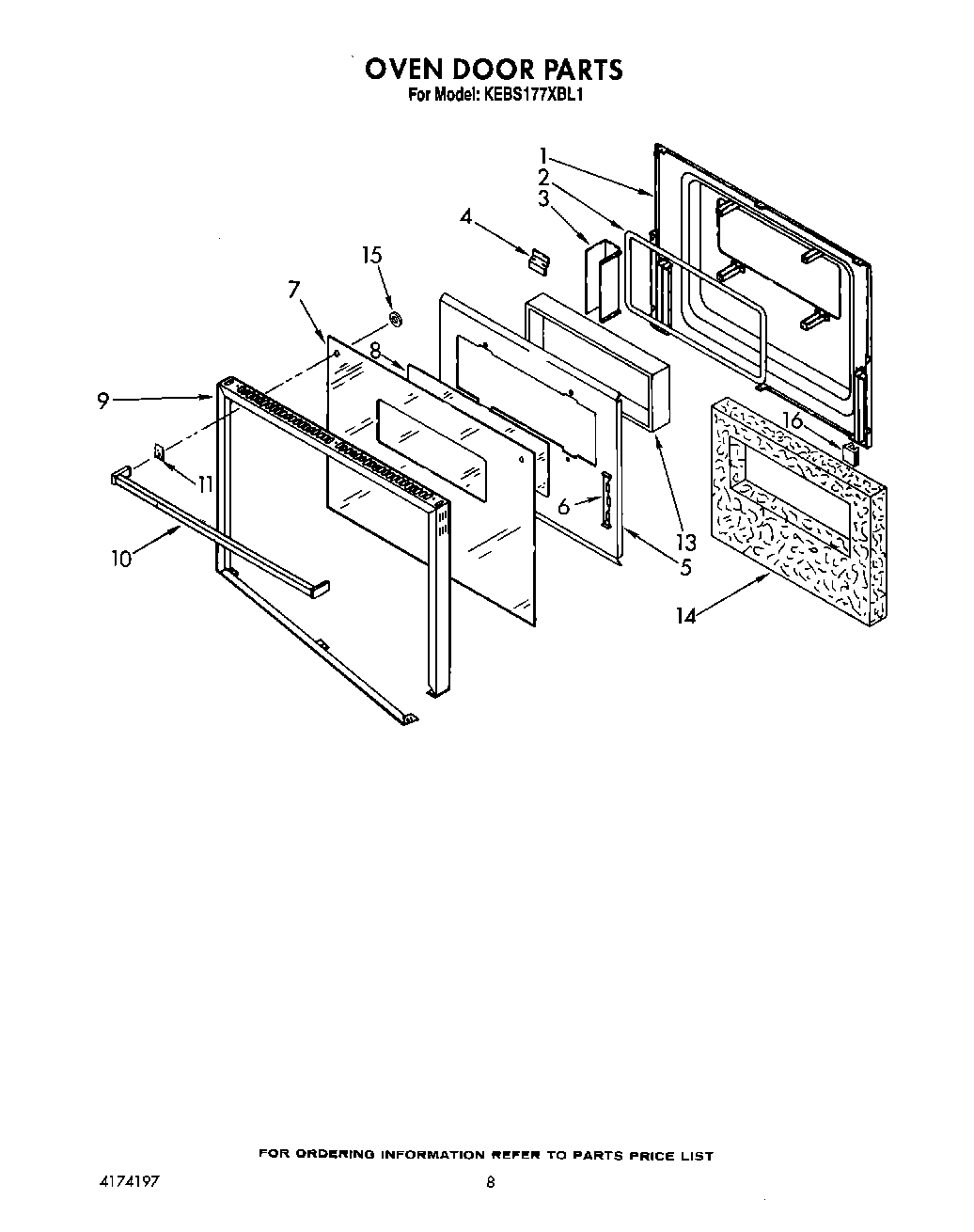

KEBS177XBL1 05 – OVEN DOOR

KEBS177XBL1 05 – OVEN DOOR

Written by

in

KEBS177XBL1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
7	Glass, Door (Almond)
7	Glass, Door (White)
8	Glass, Reflective
9	Frame, Door
10	Screw
10	Handle, Door (Almond)
10	Handle, Door (White)
10	Handle, Door (Black)
11	Spacer (2) (White)
11	Spacer (2)
11	Spacer (2) (Almond)
13	Window Package
14	Screw, Black (2)
14	Insulation, Door
14	Vent, Lower Trim (Screw (2))
15	Bushing, Door Handle
16	Bumper, Door Glass
