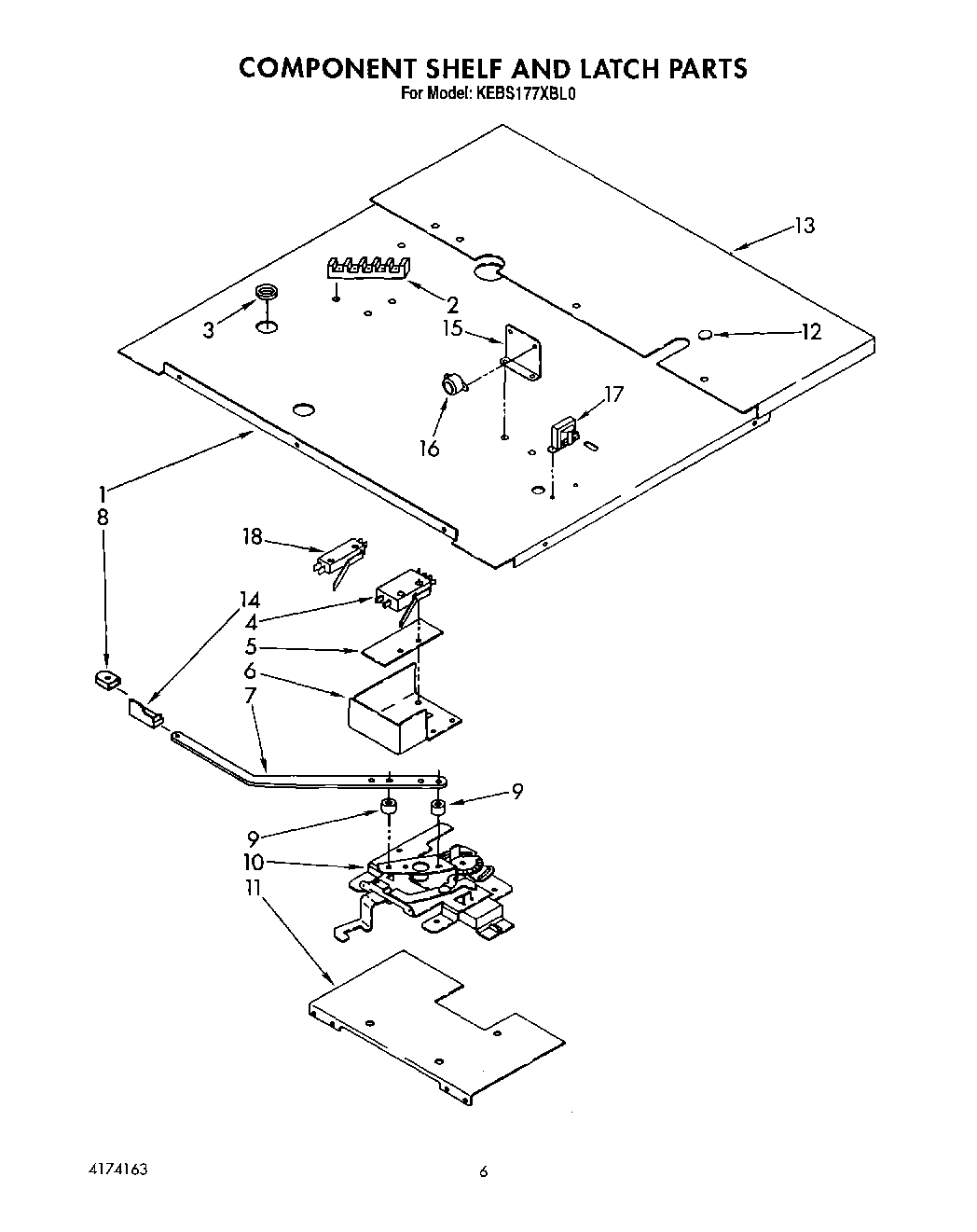

KEBS177XWH0 04 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Knob, Latch Handle
9Spacer, Handle (2)
9Screw (2)
9Screw, 8-18 X 3/4 (4)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP90767 Whirlpool Screw
14WP488234 Whirlpool Air Conditioner Screw
14Support, Latch
15Bracket, Buzzer
15Screw,
16Buzzer, Meat Probe
16Screw
17Transformer
17WP3177991 Whirlpool Screw
18Switch, Latch
18Screw (2)
