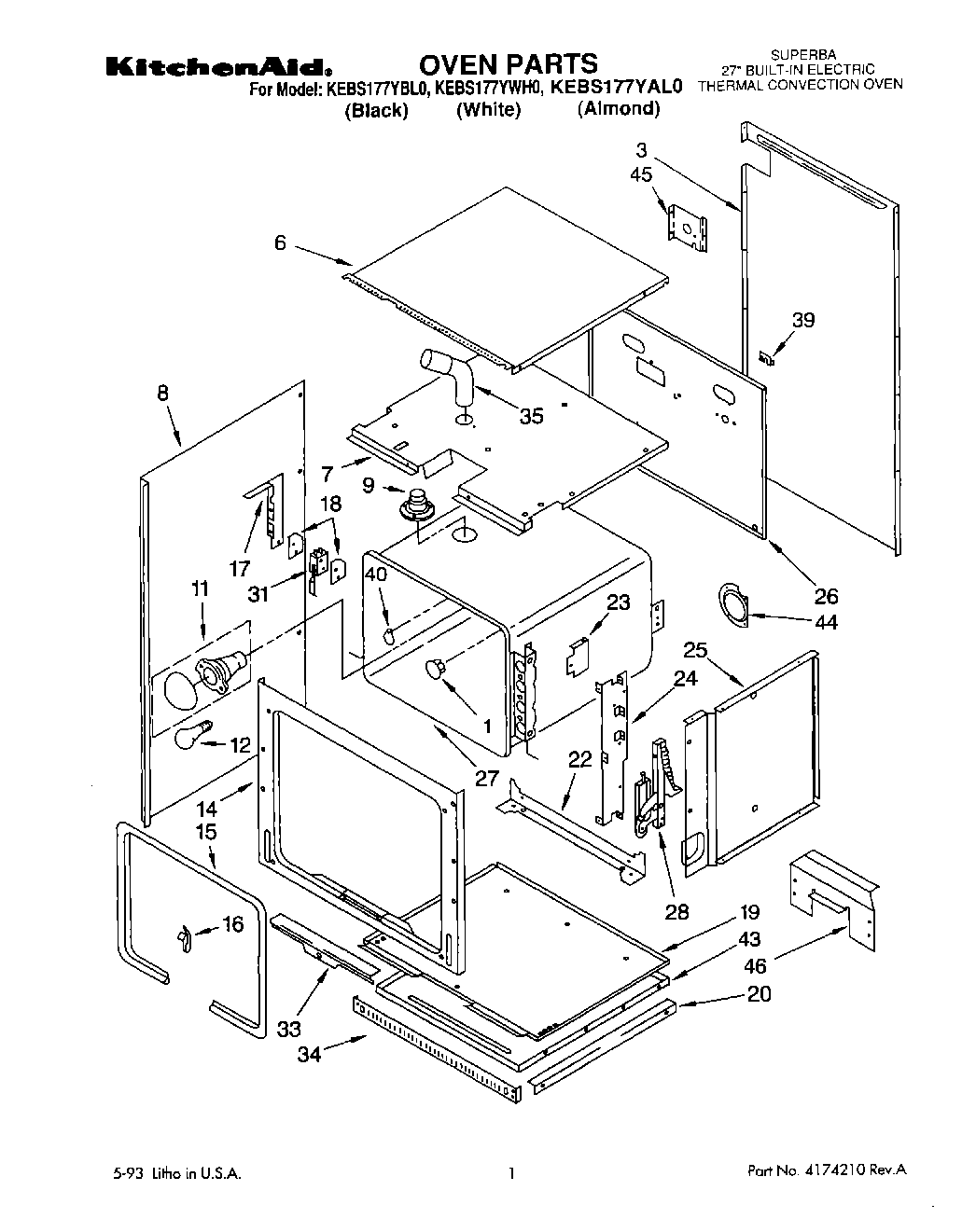

KEBS177YAL0 01 – OVEN, OPTIONAL

Products

Position	Product
1	Button, Plug
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
46	1
46	Wire (14 Ga. 200 c Brown)
46	18 Ga. 80~c Rating (Red)
46	Wire (14 Ga. 150 c Orange)
46	Wire (12 Ga. 150 c Black)
46	Almond (Uncut)
46	Wire (14 Ga. 150 c Yellow)
46	WPL 350806
46	WPL 832985
46	Wire (14 Ga. 150 c Green)
46	350930 Whirlpool White Spray Paint
46	350956 Whirlpool Spray Assembly
46	WPL 3171507
46	72017 Whirlpool Appliance Touch-Up Paint White
46	WPL 591014
46	799344 Whirlpool Refrigerator Paint
46	WP72107 Whirlpool Touchup
46	Leveler (Thinner)
46	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46	Wire (14 Ga. 150 c Brown)
46	Wire (14 Ga. 150 c Blue)
46	WP261869 Whirlpool Microwave Paint
46	Platinum (Uncut)
46	WPL 72112
46	350942 Whirlpool Spray Paint
46	WPL 799832
46	Wire, 25` Roll (Black 14 Ga.)
46	Wire, 25` Roll (Red 14 Ga.)
46	Wire, 25“ Roll (White 14 GA.)
46	285006 Whirlpool Spray
46	72032 Whirlpool Touch Up Paint Black
46	Enamal, Toast (1 Qt. Uncut)
46	Paint, Spray (13 Oz.) (Platinum)
46	242831 Whirlpool Oven Wire
46	Insulation, Oven
46	Insulation, Back
46	WP90767 Whirlpool Screw
46	WPL 3183752
46	72113 Whirlpool Touch-Up Paint
46	Golden Harvest
46	Golden Harvest (Uncut)
46	Toast
46	WP482338 Whirlpool Refrigerator Adhesive
