KEBS177YAL0 02 – LATCH AND VENT

KEBS177YAL0 02 – LATCH AND VENT

Written by

in

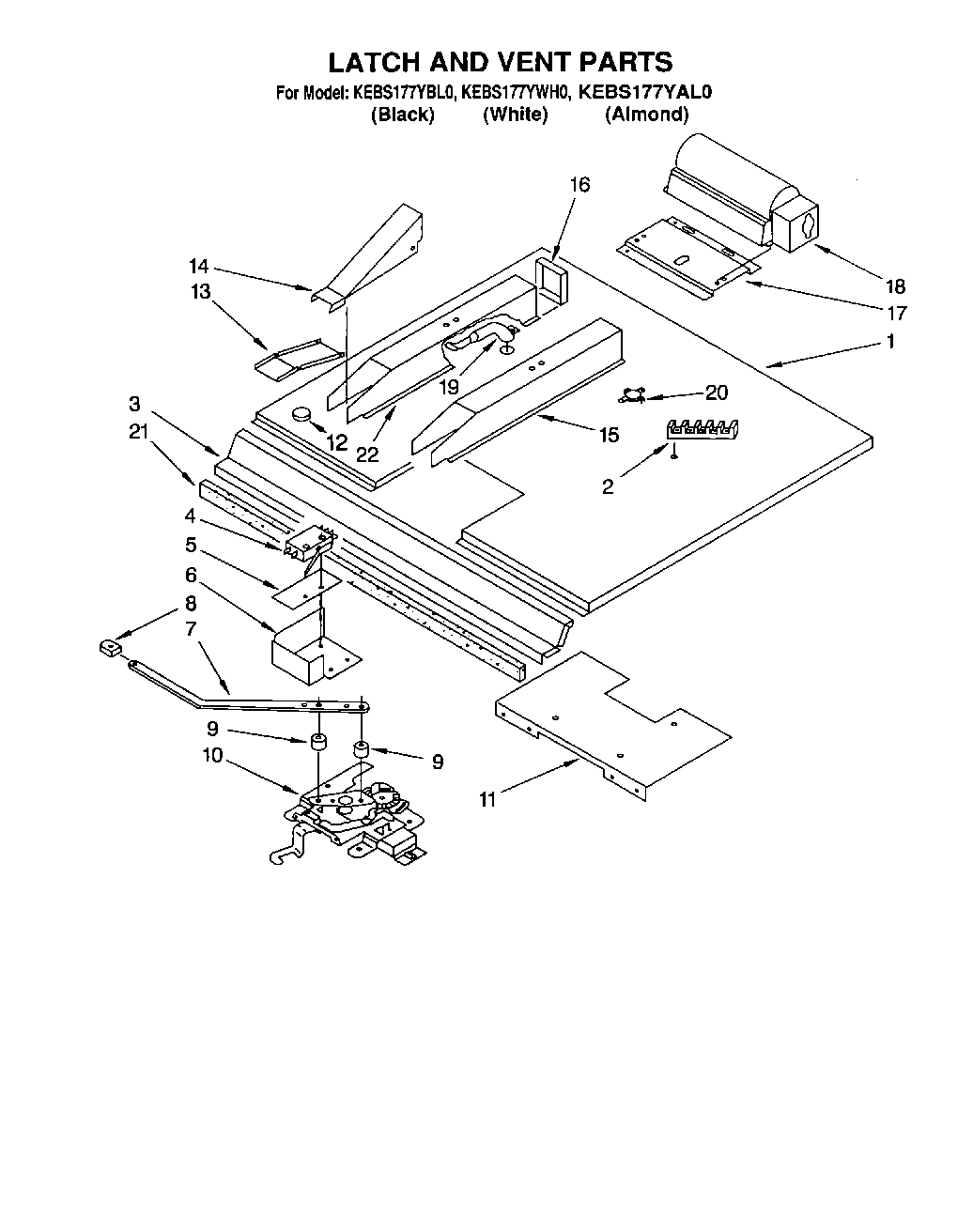

KEBS177YAL0 02 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw
2WP8203546 Whirlpool Terminal Block
3Shield, Heat
4Switch, latch
4Screw (2)
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Bushing
13Nozzle, Vent Bottom
14Screw
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17WP3177991 Whirlpool Screw
17Bracket, Mounting
18Blower, fan
19Screw
19Tube, Vent
20SPST Thermostat
20WP90767 Whirlpool Screw
21Seal, foam
22Box, Vent
