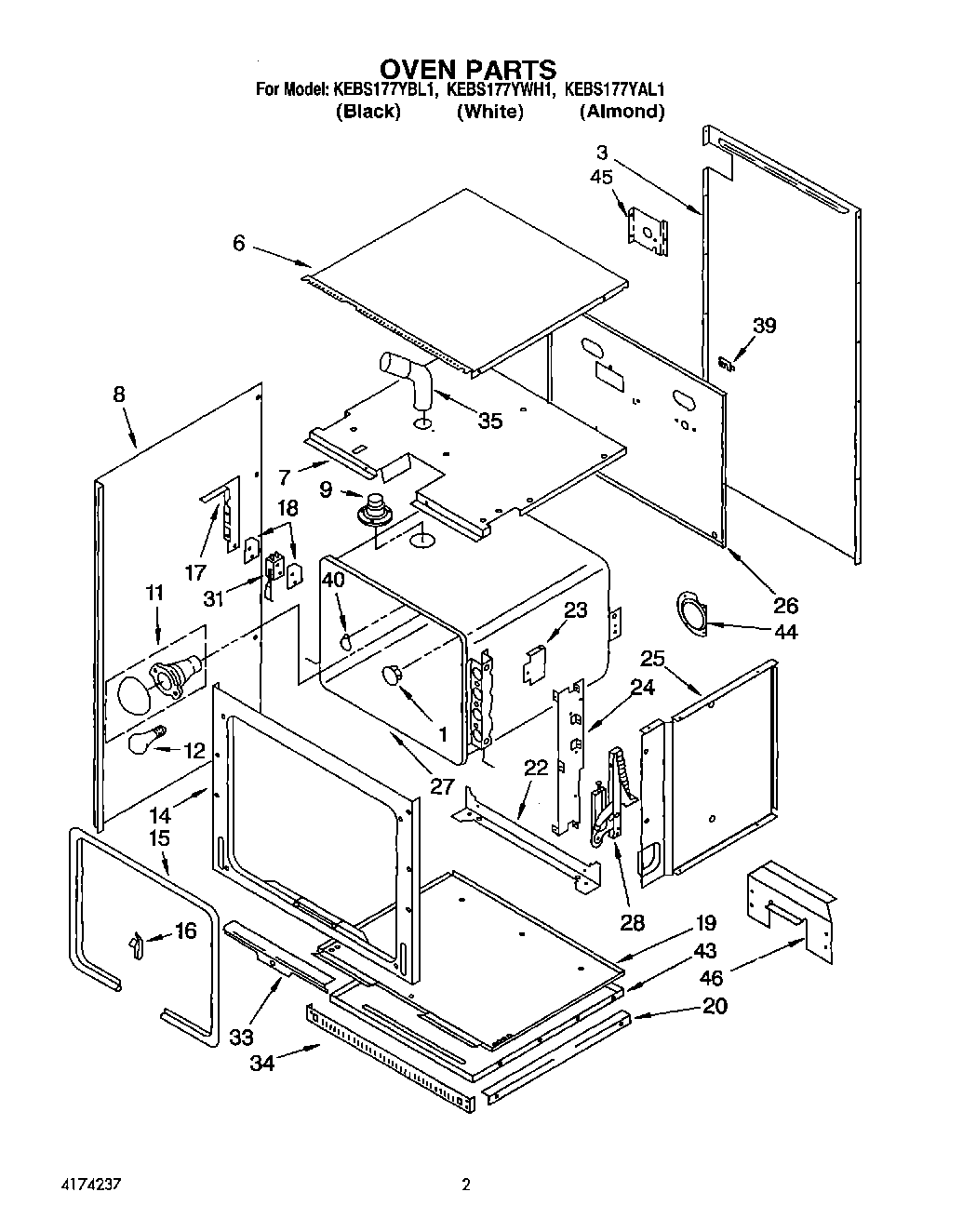

KEBS177YAL1 02 – OVEN, OPTIONAL

KEBS177YAL1 02 – OVEN, OPTIONAL

Written by

in

KEBS177YAL1 02 – OVEN, OPTIONAL

Products

PositionProduct
1Button, Plug
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (Left Hand)
8Side, Cabinet (R.H. & L.H.)
9Tube, Vent
9Screw (3)
11W11594027 Whirlpool Range Oven Light Socket
12RANGE ONLY 40W 120V APPL BULB
14Frame, Front
15Seal, Door
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
22Support, Oven
23Shield, Radiation
23Screw (6)
24Bracket, Hinge
25Side, Module (R.H. & L.H.)
26Back, Module
27Liner, Oven
28Screw (4)
28Hinge, Door
31Screw (2)
31Nut (2)
31Switch, Door
33Screw (4)
33SCREW
33Retainer, Seal
34Vent, Lower Trim (Screw (4))
34Vent, Lower Trim (White)
34Vent, Lower Trim (Black)
34Vent, Lower Trim (Screw (2))
35Tube, Vent
39Cover, Cap Tube
39Screw
40Plate, Cover
43Bottom, Oven
44Probe Cover
44WP3177991 Whirlpool Screw
45Bracket, Conduit
46Wire (12 Ga. 150 c Black)
46Wire (14 Ga. 150 c Yellow)
46Almond (Uncut)
46Wire (14 Ga. 150 c Orange)
4618 Ga. 80~c Rating (Red)
46Wire (14 Ga. 150 c Green)
46350930 Whirlpool White Spray Paint
46350956 Whirlpool Spray Assembly
46WPL 3171507
4672017 Whirlpool Appliance Touch-Up Paint White
46799344 Whirlpool Refrigerator Paint
46WP72107 Whirlpool Touchup
46Leveler (Thinner)
4672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46WPL 832985
46WPL 591014
46WPL 350806
461
46Wire (14 Ga. 200 c Brown)
46Wire (14 Ga. 150 c Brown)
46Wire (14 Ga. 150 c Blue)
46WP261869 Whirlpool Microwave Paint
46Platinum (Uncut)
46WPL 72112
46350942 Whirlpool Spray Paint
46WPL 799832
46285006 Whirlpool Spray
46Wire, 25` Roll (Black 14 Ga.)
46Wire, 25` Roll (Red 14 Ga.)
46Wire, 25“ Roll (White 14 GA.)
46WP482338 Whirlpool Refrigerator Adhesive
46Enamal, Toast (1 Qt. Uncut)
46Paint, Spray (13 Oz.) (Platinum)
46242831 Whirlpool Oven Wire
46Insulation, Back
46Insulation, Oven
46WPL 3183752
46WP90767 Whirlpool Screw
4672113 Whirlpool Touch-Up Paint
46Golden Harvest
46Golden Harvest (Uncut)
46Toast
4672032 Whirlpool Touch Up Paint Black
