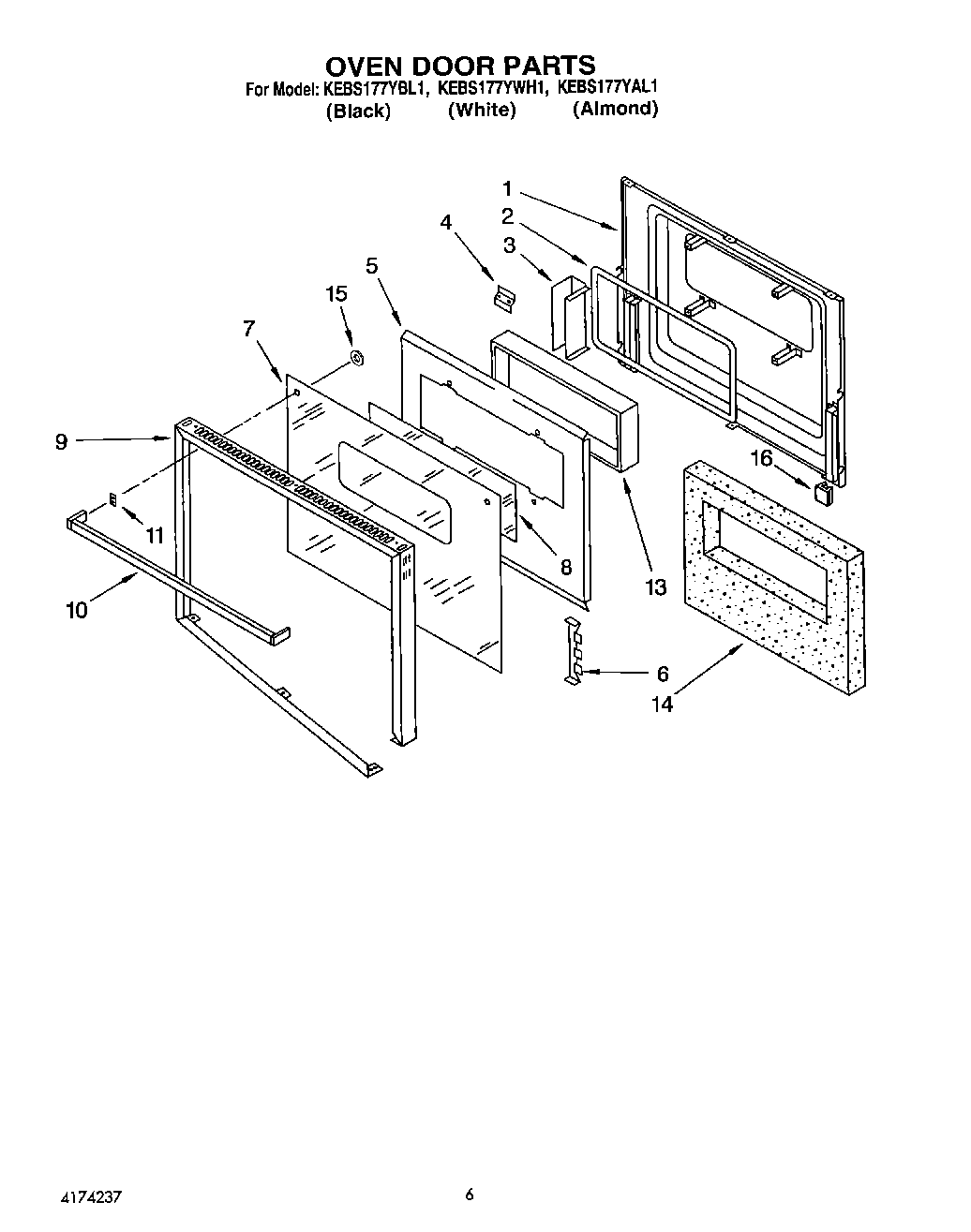

KEBS177YAL1 05 – OVEN DOOR

KEBS177YAL1 05 – OVEN DOOR

Written by

in

KEBS177YAL1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (White)
7	Glass, Door (Black)
7	Glass, Door (Almond)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door (Almond Model)
10	Handle, Door (Black Model)
10	Screw
11	Spacer, Door Handle
13	Window Package
14	Vent, Lower Trim (Screw (2))
14	Screw, Black (2)
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
