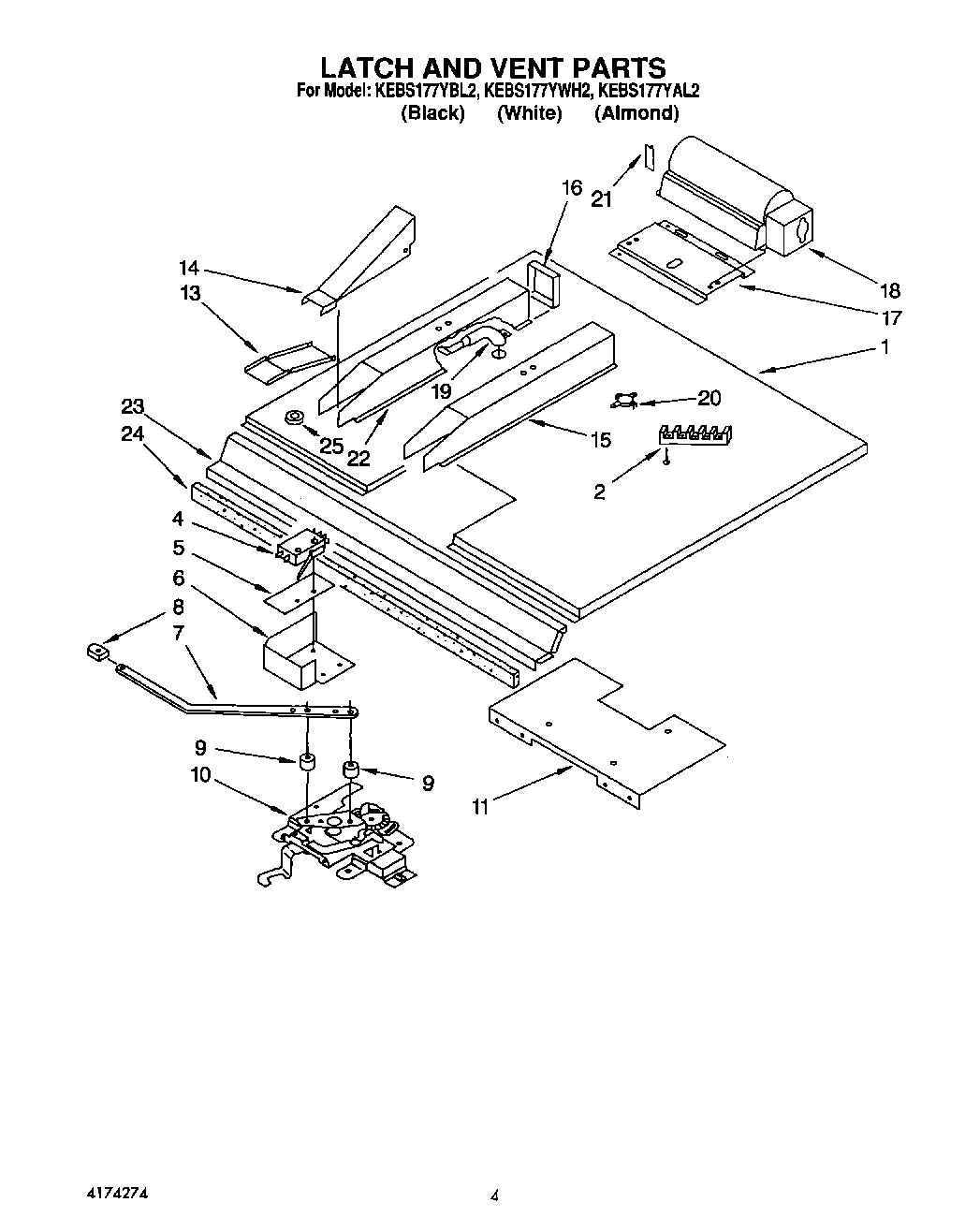

KEBS177YAL2 02 – LATCH AND VENT

Products

Position	Product
1	Module, Top
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
4	Switch, latch
4	Screw
4	Screw,
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
9	Screw (2)
9	Spacer, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent
16	End, Vent Box
17	WP3177991 Whirlpool Screw
17	Bracket, Mounting
18	Blower, fan
19	Screw
19	Tube, Vent
20	SPST Thermostat
20	Screw
21	Screw
21	Baffle-Blower
22	Box, Vent
23	Shield, Heat
24	Seal, foam
25	Bushing
