KEBS177YAL2 03 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
Guide, Auto Set
Cookbook T/C Oven

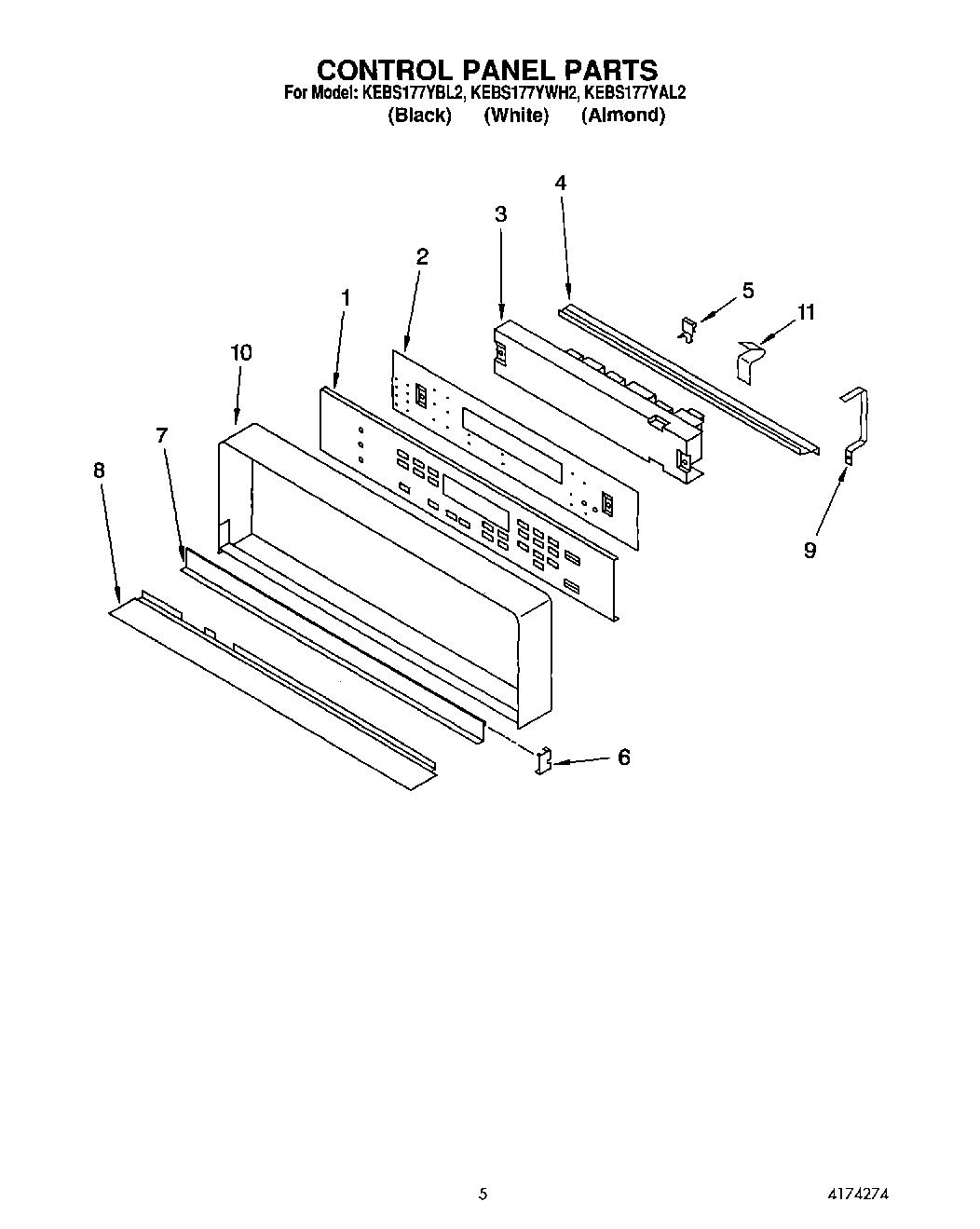

Repair Parts List
1Membrane, Switch (Black Model)
1Membrane, Switch (White, Model)
1Membrane, Switch (Almond, Model)
2Bracket, Mounting Switch Membrane
3Screw (3)
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Almond)
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
8Trim, Panel
8Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
