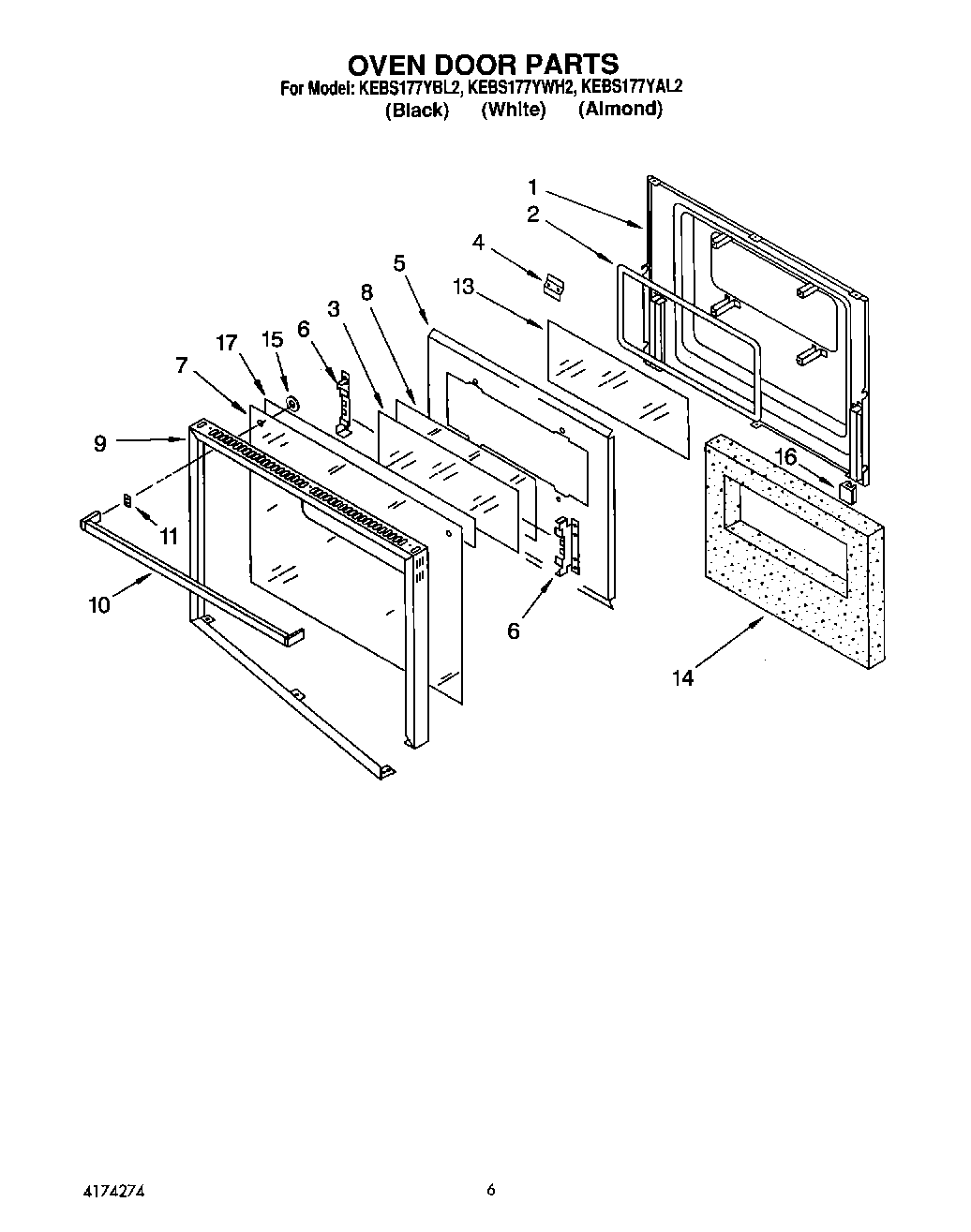

KEBS177YAL2 04 – OVEN DOOR

KEBS177YAL2 04 – OVEN DOOR

Written by

in

KEBS177YAL2 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Screw
6	Retainer, Glass
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
7	Glass, Door (Almond Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
10	Screw
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Glass, Clear
14	Screw, Black (2)
14	Vent, Lower Trim (Screw (2))
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
17	Foil-Adhesive Backed
