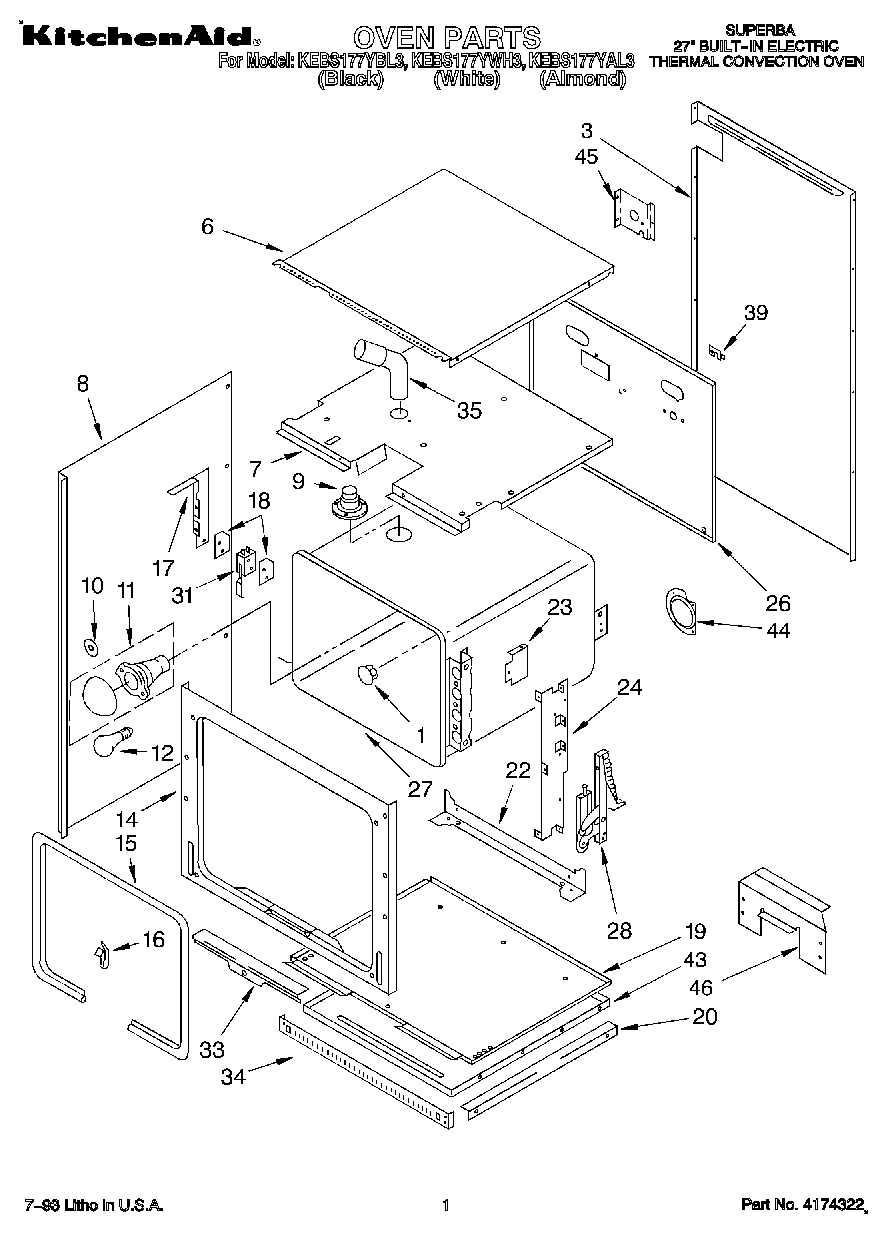

KEBS177YAL3 01 – OVEN, OPTIONAL

Products

Position	Product
1	Button, Plug
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	WP3184533 Whirlpool Range Light Lens Gasket
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
46	WPL 3171507
46	WPL 832985
46	WPL 591014
46	WPL 350806
46	Wire (14 Ga. 150 c Blue)
46	1
46	Wire (14 Ga. 200 c Brown)
46	18 Ga. 80~c Rating (Red)
46	Wire (12 Ga. 150 c Black)
46	Wire (14 Ga. 150 c Yellow)
46	Wire (14 Ga. 150 c Orange)
46	Wire (14 Ga. 150 c Green)
46	WP261869 Whirlpool Microwave Paint
46	242831 Whirlpool Oven Wire
46	Wire (14 Ga. 150 c Brown)
46	Insulation, Back
46	WPL 3183752
46	Paint, Spray (13 Oz.) (Platinum)
46	Toast
46	Golden Harvest (Uncut)
46	72113 Whirlpool Touch-Up Paint
46	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46	Almond (Uncut)
46	Leveler (Thinner)
46	WP72107 Whirlpool Touchup
46	799344 Whirlpool Refrigerator Paint
46	72017 Whirlpool Appliance Touch-Up Paint White
46	350956 Whirlpool Spray Assembly
46	Enamal, Toast (1 Qt. Uncut)
46	Platinum (Uncut)
46	WPL 72112
46	Golden Harvest
46	Insulation, Oven
46	Screw
46	WP482338 Whirlpool Refrigerator Adhesive
46	72032 Whirlpool Touch Up Paint Black
46	285006 Whirlpool Spray
46	Wire, 25“ Roll (White 14 GA.)
46	Wire, 25` Roll (Red 14 Ga.)
46	Wire, 25` Roll (Black 14 Ga.)
46	WPL 799832
46	350942 Whirlpool Spray Paint
46	350930 Whirlpool White Spray Paint
