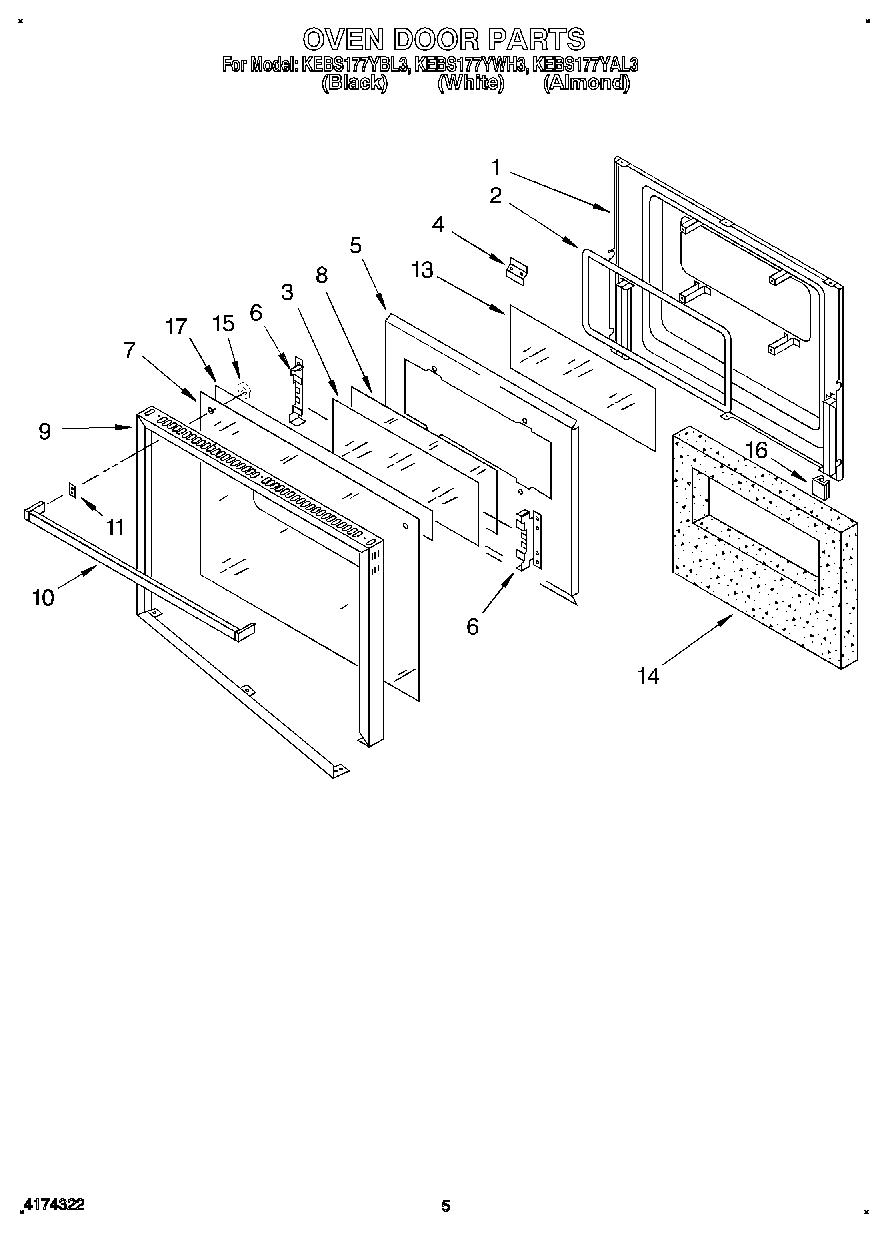

KEBS177YAL3 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
4	Screw
5	Screw
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
7	Glass, Door (Almond Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Almond Model)
10	Handle, Door (Black Model)
10	Screw
10	Handle, Door (White Model)
11	Spacer, Door Handle
13	Glass, Clear
14	Insulation, Door
14	Vent, Lower Trim (Screw (2))
14	Screw, Black (2)
15	Bushing, Door Handle
16	Bumper, Door Glass
17	Foil-Adhesive Backed
