KEBS177YAL4 04 – OVEN DOOR

KEBS177YAL4 04 – OVEN DOOR

Written by

in

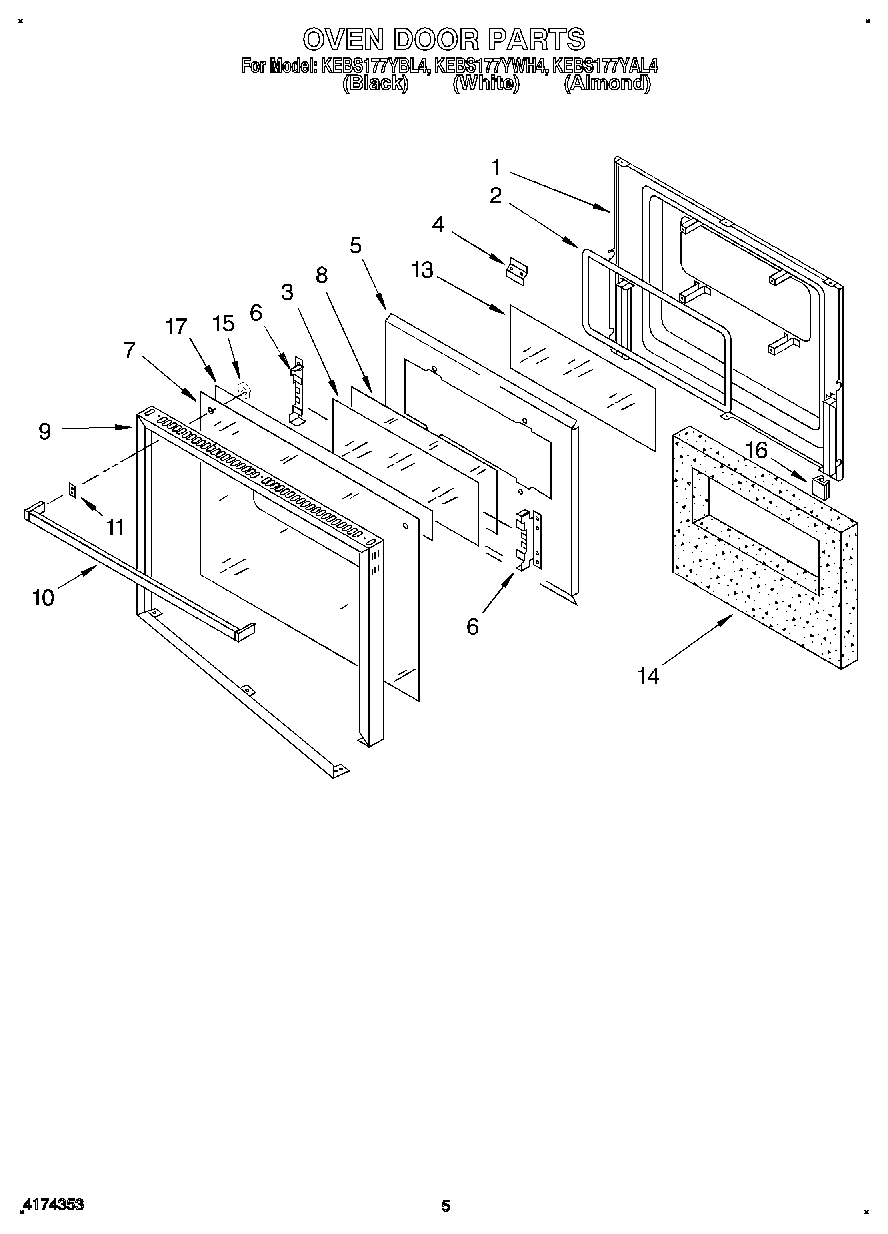

KEBS177YAL4 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Screw
5	Retainer, Insulation
6	Screw
6	Retainer, Glass
7	Glass, Door (White Model)
7	Glass, Door (Almond Model)
7	Glass, Door (Black Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Almond Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
10	Screw
11	Spacer, Door Handle
13	Glass, Clear
14	Screw, Black (2)
14	Insulation, Door
15	Bushing, Door Handle
15	Screw, 10-32 x 1/2
16	Bumper, Door Glass
17	Foil-Adhesive Backed
