KEBS177YWH0 04 – OVEN DOOR

KEBS177YWH0 04 – OVEN DOOR

Written by

in

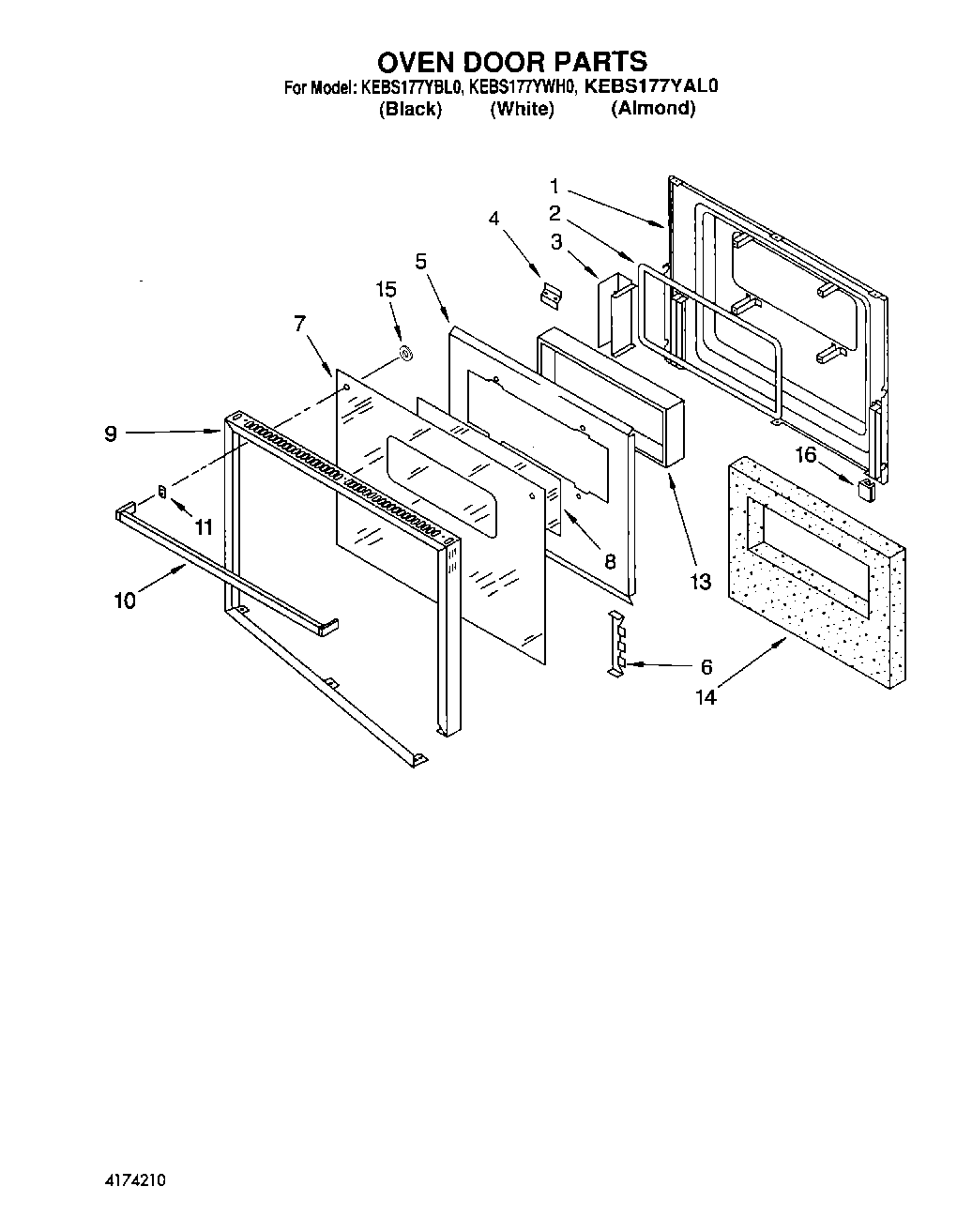

KEBS177YWH0 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Bracket, Glass Mtg.
6	Screw
7	Glass, Door (Black)
7	Glass, Door (Almond)
7	Glass, Door (White)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
10	Screw
11	Spacer, Door Handle
13	Window Package
14	Vent, Lower Trim (Screw (2))
14	Screw, Black (2)
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
