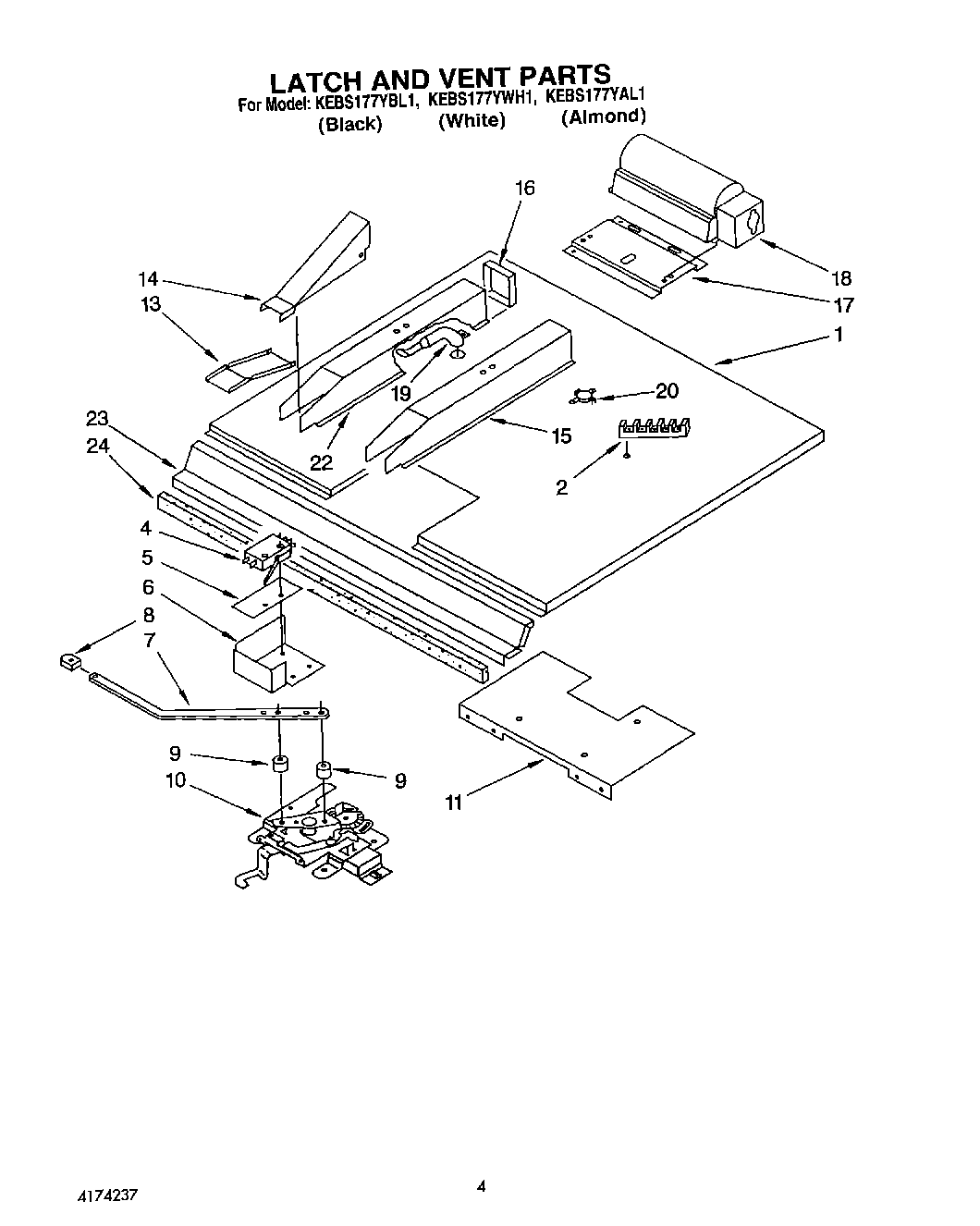

KEBS177YWH1 03 – LATCH AND VENT

KEBS177YWH1 03 – LATCH AND VENT

Written by

in

KEBS177YWH1 03 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Switch, latch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Knob, Latch Handle
8Screw
9Screw (2)
9Spacer, Latch Handle
10Latch, Mechanism
11Plate, Mounting
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17WP3177991 Whirlpool Screw
17Bracket, Mounting
18Blower, fan
19Screw
19Tube, Vent
20WP90767 Whirlpool Screw
20SPST Thermostat
22Box, Vent
23Shield, Heat
24Seal, foam
