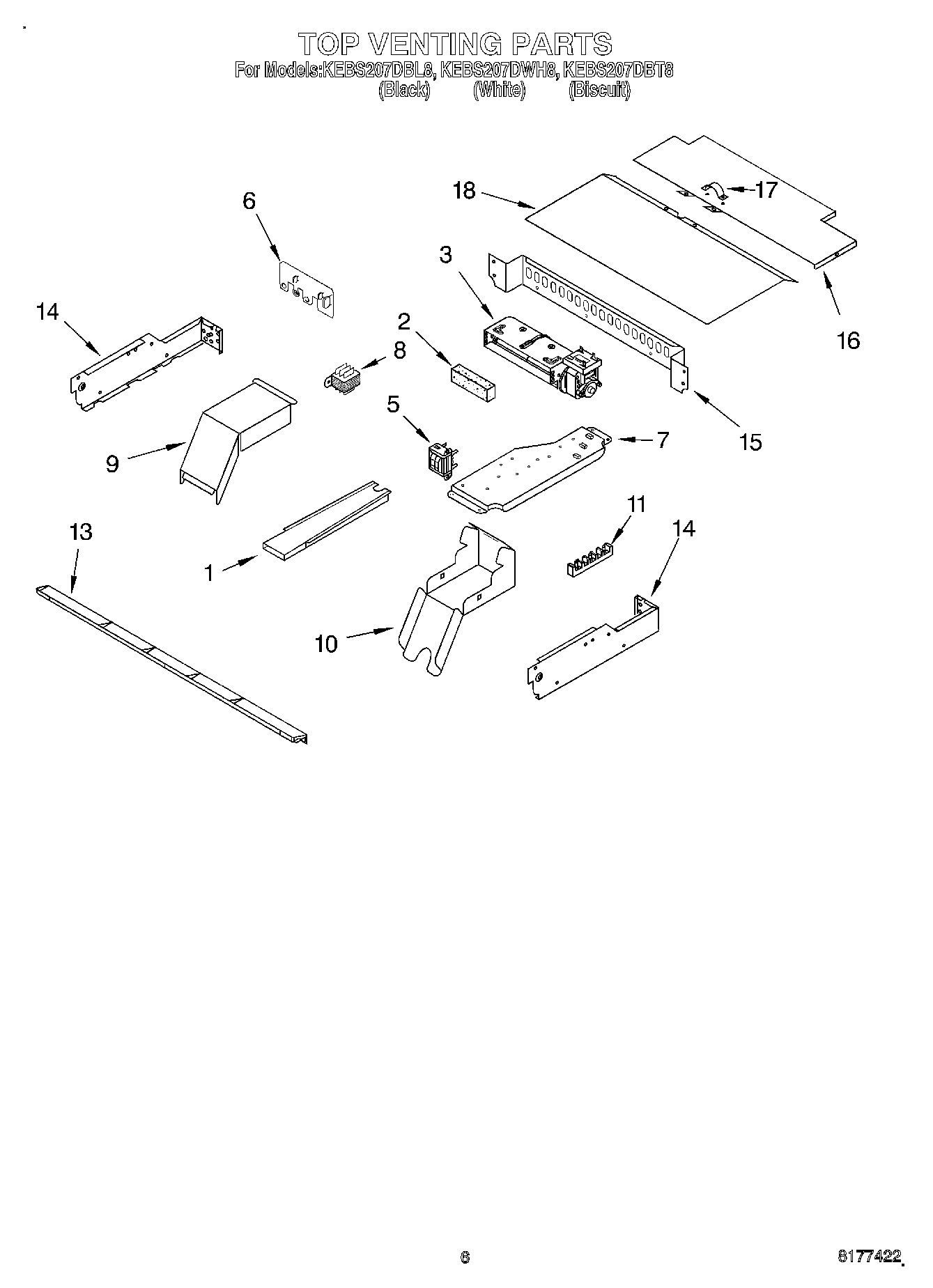

KEBS207DBL8 05 – TOP VENTING, OPTIONAL

KEBS207DBL8 05 – TOP VENTING, OPTIONAL

Written by

in

KEBS207DBL8 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WP4455352 Whirlpool Mounting Bracket
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
5WP9760588 Whirlpool Transformer
6WP4451985 Whirlpool Noise Filter Board
7Plate, Mounting
8Transformer
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11WP3400016 Whirlpool Screw Assembly
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18261900 Whirlpool Microwave Spray
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18WPL 4451863
18Wire (14 Ga. 200 c Brown)
181
18WPL 591014
18Harness, Wire (Latch)
18WP4452367 Whirlpool Top Cover
184451761 Whirlpool Oven Support Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire (14 Ga. 150 c Yellow)
18WP482338 Whirlpool Refrigerator Adhesive
1872032 Whirlpool Touch Up Paint Black
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
18350930 Whirlpool White Spray Paint
18814381 Whirlpool Pin
18WP4448950 Whirlpool Screw
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Spacer, Harness
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18WP4456654 Whirlpool Thermal Fuse
1816515 Whirlpool Clip
18Conduit, Double
1872017 Whirlpool Appliance Touch-Up Paint White
