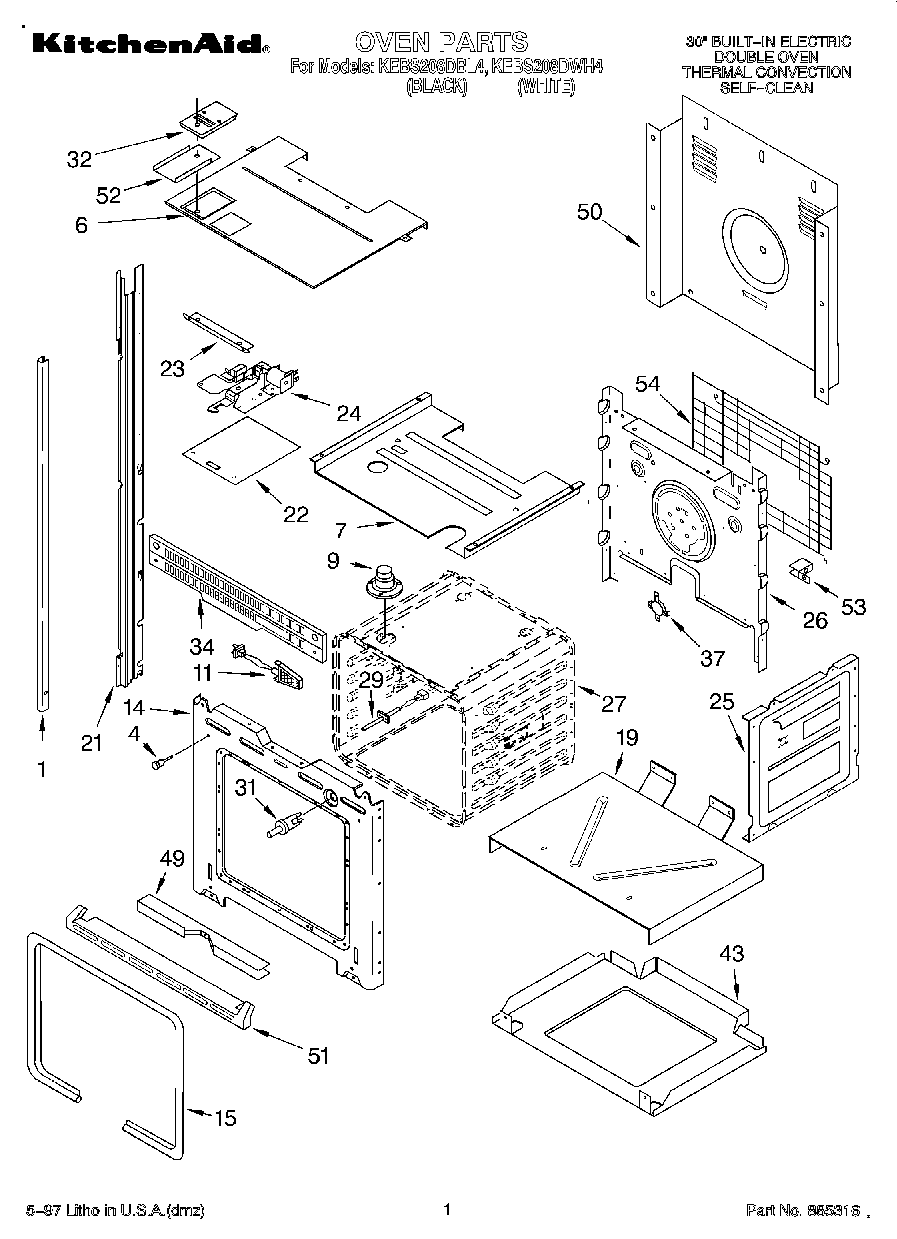

KEBS208DWH4 01 – OVEN

Products

Position	Product
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (LH Black)
1	Trim, Side (RH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Trim, Bottom (Screw)
22	Shield, Latch
23	Deflector, Latch
24	Latch Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
34	Vent, Center
37	WP4450249 Whirlpool Thermostat
37	WP4450934 Whirlpool Thermostat Assembly
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	Screw, (2)
51	Trim, Bottom (Black Model)
51	Trim, Bottom (White Model)
52	Vent Extension
52	Extension, Vent (Lower Oven)
53	WPL 4449845
54	W11684730 Whirlpool Insulation
54	WP4449809 Whirlpool Screw
54	Spacer, Harness
54	WPL 4450365
