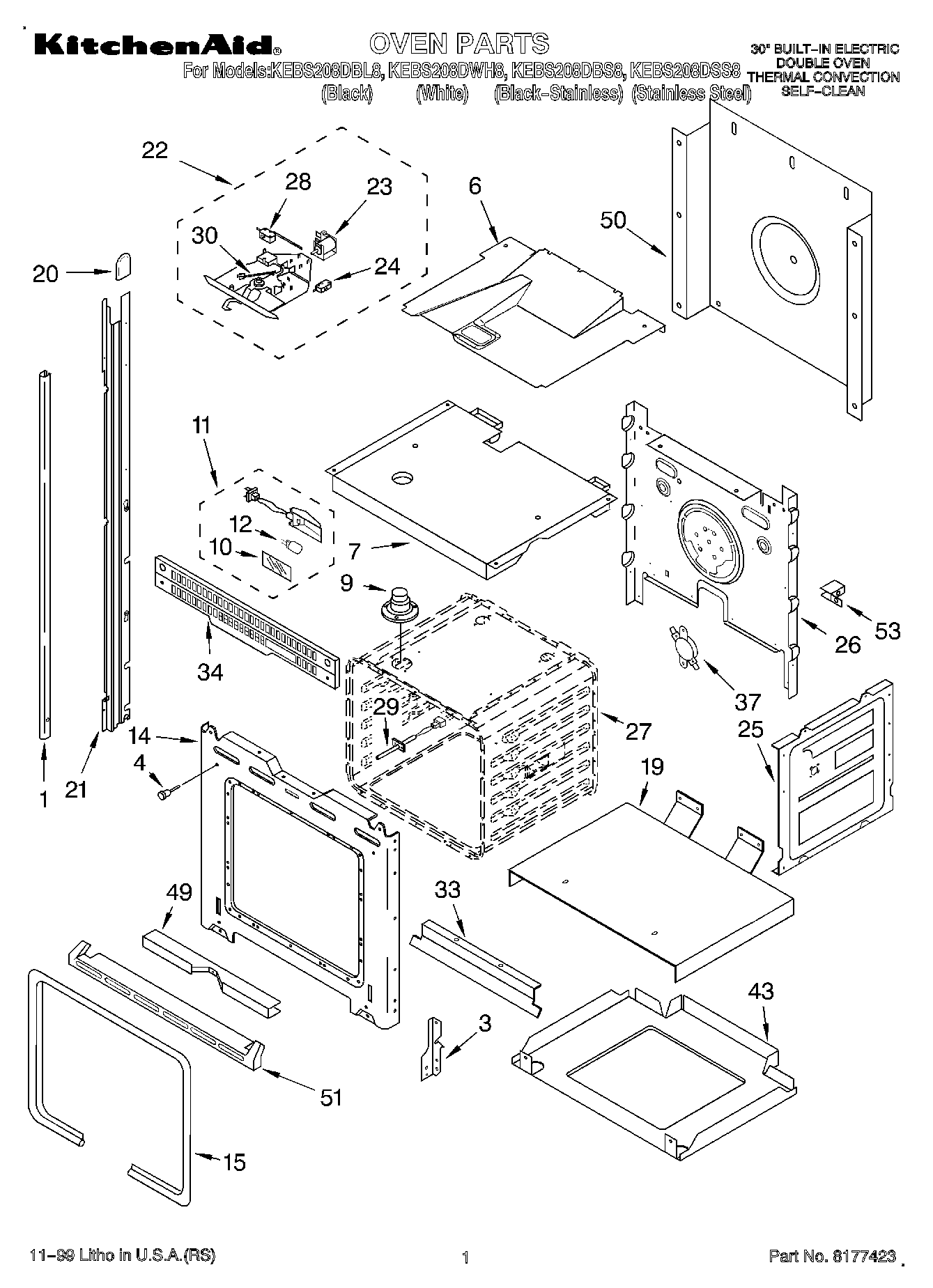

KEBS208DWH8 01 – OVEN

Products

Position	Product
1	Trim, Side (Stainless Steel)
1	Trim, Side (RH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (LH Black)
1	Trim, Side (Stainless Steel)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
3	Reciever, Hinge (Right Hand)
3	Reciever, Hinge (Left Hand)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
22	Latch Assembly
23	Solenoid
24	Micro Switch N.C.
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	Sensor
30	Spring, Latch
33	WPL 4451619
33	W10145009 Whirlpool Vent Deflector
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	4452152 Whirlpool Oven Mounting Bracket
51	WPL 4448478
51	WPL 4448477
51	Tri
53	WPL 4449845
53	WPL 4450365
53	WP4449809 Whirlpool Screw
53	W11684730 Whirlpool Insulation
