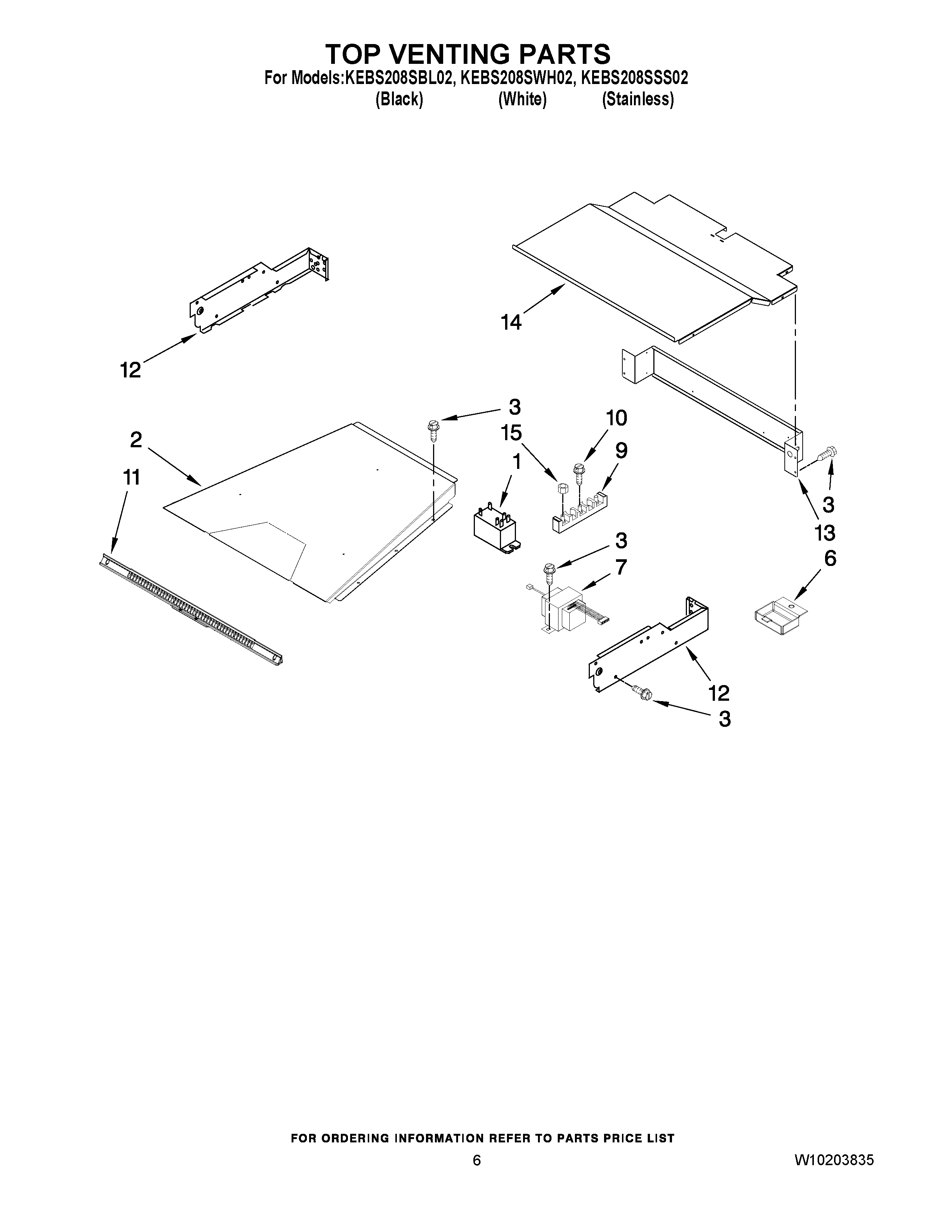

KEBS208SBL02 05 – TOP VENTING PARTS

Products

Position	Product
1	WP9752759 Whirlpool Relay
2	Duct, Air Outlet
3	WP4449809 Whirlpool Screw
6	8285593 Whirlpool Oven Wire Cover
7	WPW10111628 Whirlpool Transformer
9	WP8203546 Whirlpool Terminal Block
10	Screw
11	8303684 Whirlpool Oven Vent Control
12	Side, Control Top (Right)
12	Side, Control Top (Left)
13	Back, Control
14	Cover, Top
15	WPW10116349 Whirlpool Nut
