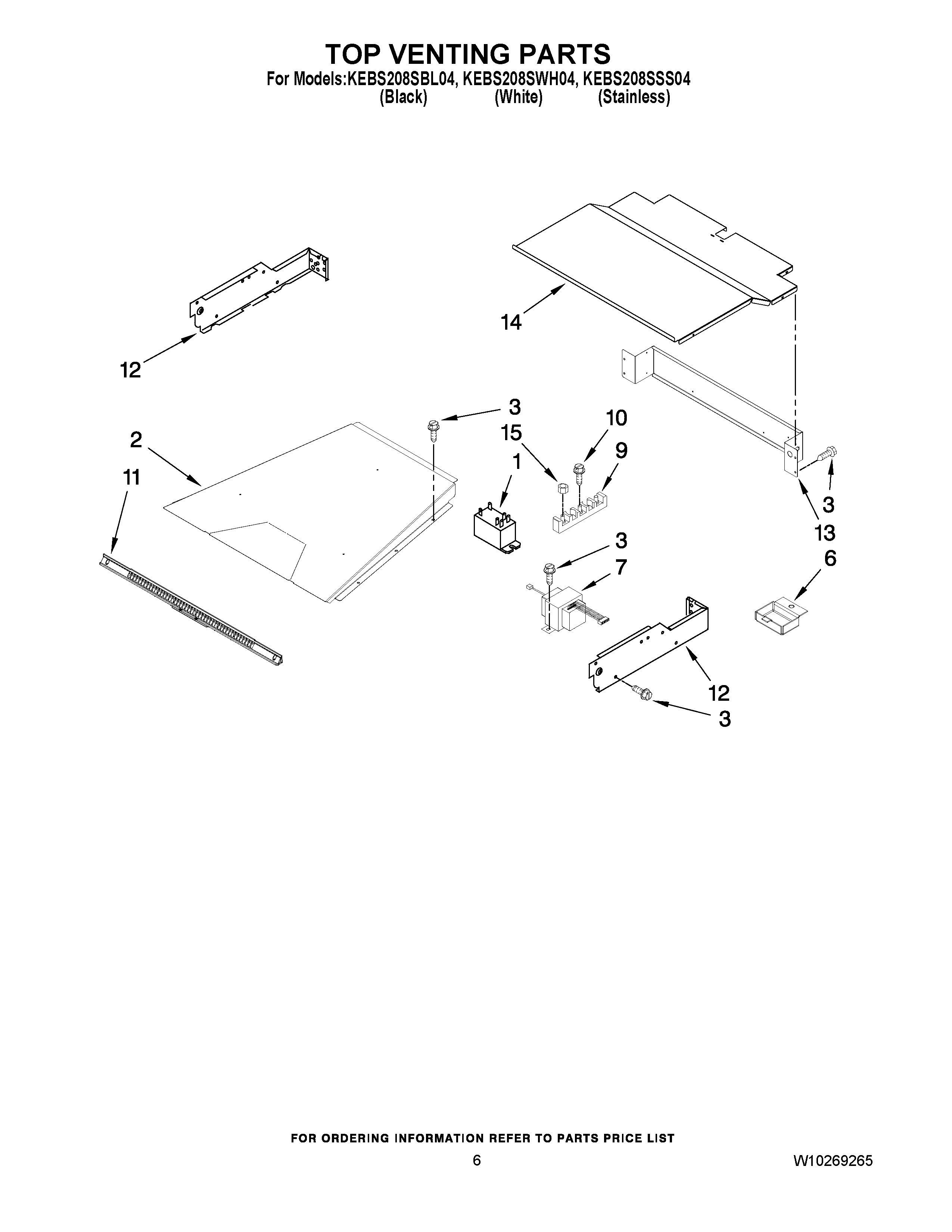

KEBS208SBL04 05 – TOP VENTING PARTS

KEBS208SBL04 05 – TOP VENTING PARTS

Written by

in

KEBS208SBL04 05 – TOP VENTING PARTS

Products

PositionProduct
1WP9752759 Whirlpool Relay
2Duct, Air Outlet
3WP4449809 Whirlpool Screw
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
9Block, Terminal
10Screw
118303684 Whirlpool Oven Vent Control
12Side, Control Top (Right)
12Side, Control Top (Left)
13Back, Control
14Cover, Top
15Nut
