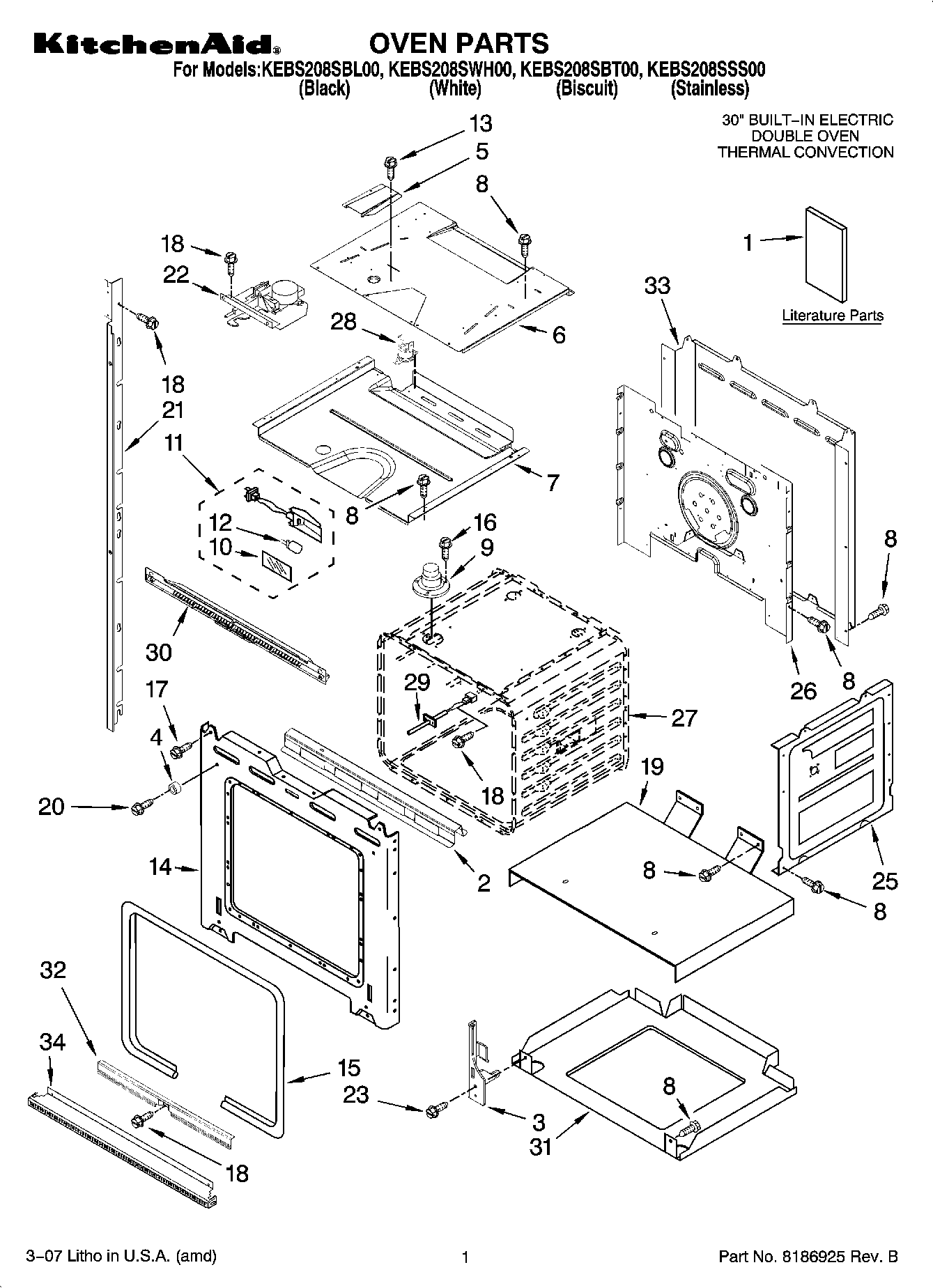

KEBS208SSS00 01 – OVEN PARTS

KEBS208SSS00 01 – OVEN PARTS

Written by

in

KEBS208SSS00 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet (English)
1Safe Cooking Tips
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Safe Cooking Tips (French)
1Tech Sheet (French)
1Easy Set Guide
1Use & Care Guide
2Bracket, Base
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Exhaust,Vent Slope
6Divider, Vent
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WP3400832 Whirlpool Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16SCREW
17Screw
18WP4449154 Whirlpool Screw
19Support, Insulation
20WP4450038 Whirlpool Screw
21Mounting Rail, Side Left (Stainless)
21Mounting Rail, Side Left (Biscuit)
21Mounting Rail, Side Right (Black)
21Mounting Rail, Side Left (Black)
21Mounting Rail, Side Right (White)
21Mounting Rail, Side Right (Stainless)
21Mounting Rail, Side Right (Biscuit)
21Mounting Rail, Side Left (White)
22W11029221 Whirlpool Door Latch
23WP4449743 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP8304452 Whirlpool Range Thermal Fuse
29WPW10131825 Whirlpool Oven Temperature Sensor
30Center Vent
31Base, Chassis
32WP4448933 Whirlpool Retainer
33Cover, Back
34Trim, Bottom Vent (Black)
34Insulation, Wrap
34Trim, Bottom Vent
34Insulation, Back
34Trim, Bottom Vent (White)
34Trim, Bottom Vent (Biscuit)
34FOLLOWING PART
