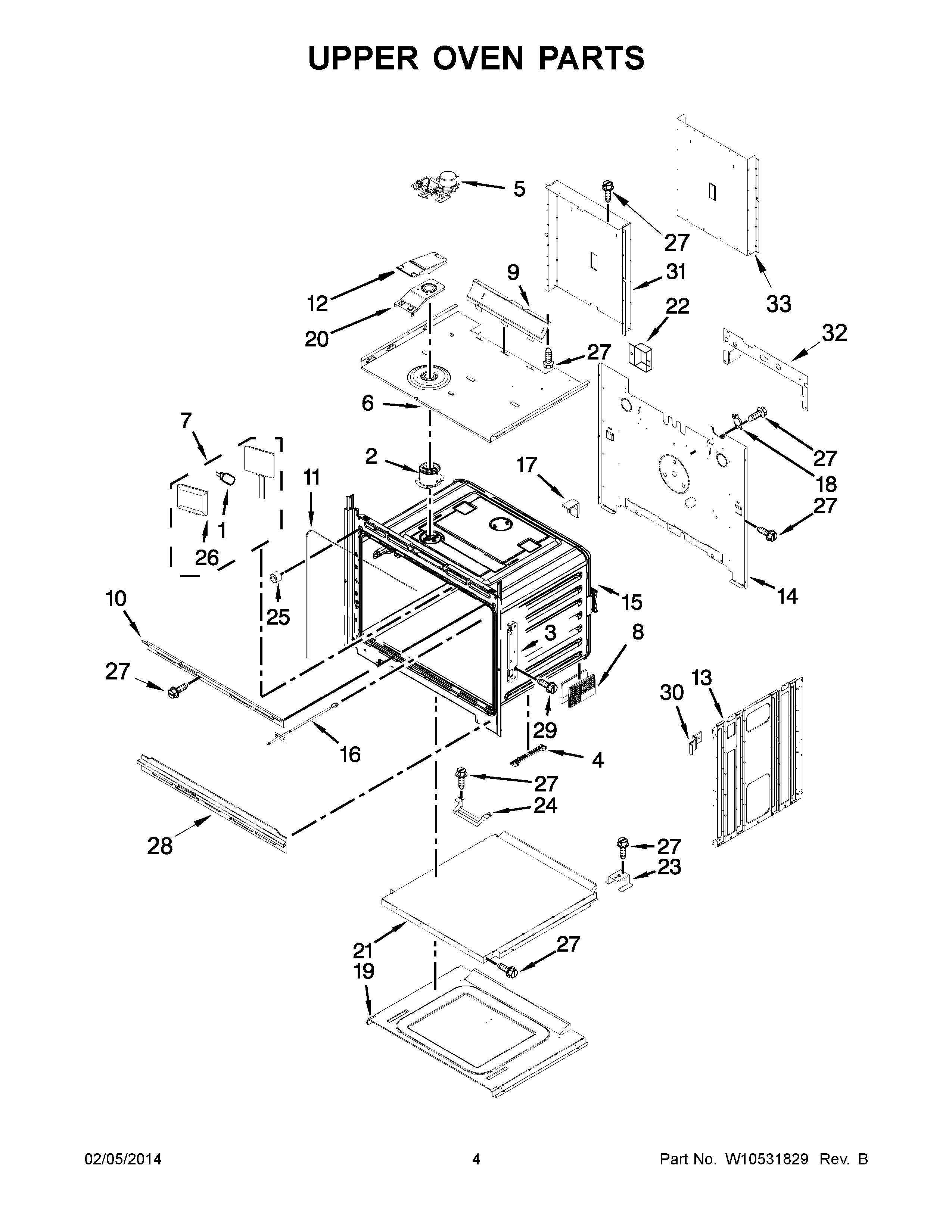

KEBS209BBL00 03 – UPPER OVEN PARTS

Products

Position	Product
NI	W11688731 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
1	WPW10472384 Whirlpool Light Bulb
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
8	W10821321 Whirlpool Leveling Foot
9	W10351258 Whirlpool Bracket
10	VENT, TOP 30“
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10282990 Whirlpool Rear Cover
16	PROBE, SENSOR
17	WPW10323551 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	W10616809 Whirlpool Vent Tube
21	WPW10283008 Whirlpool Access Cover
22	8285593 Whirlpool Oven Wire Cover
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	VENT, CENTER 30“
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	W10318196 Whirlpool BA Chassis
32	BRACKET, U-SHAPE
33	DUCT, CHASSIS BACK (LOWER)
