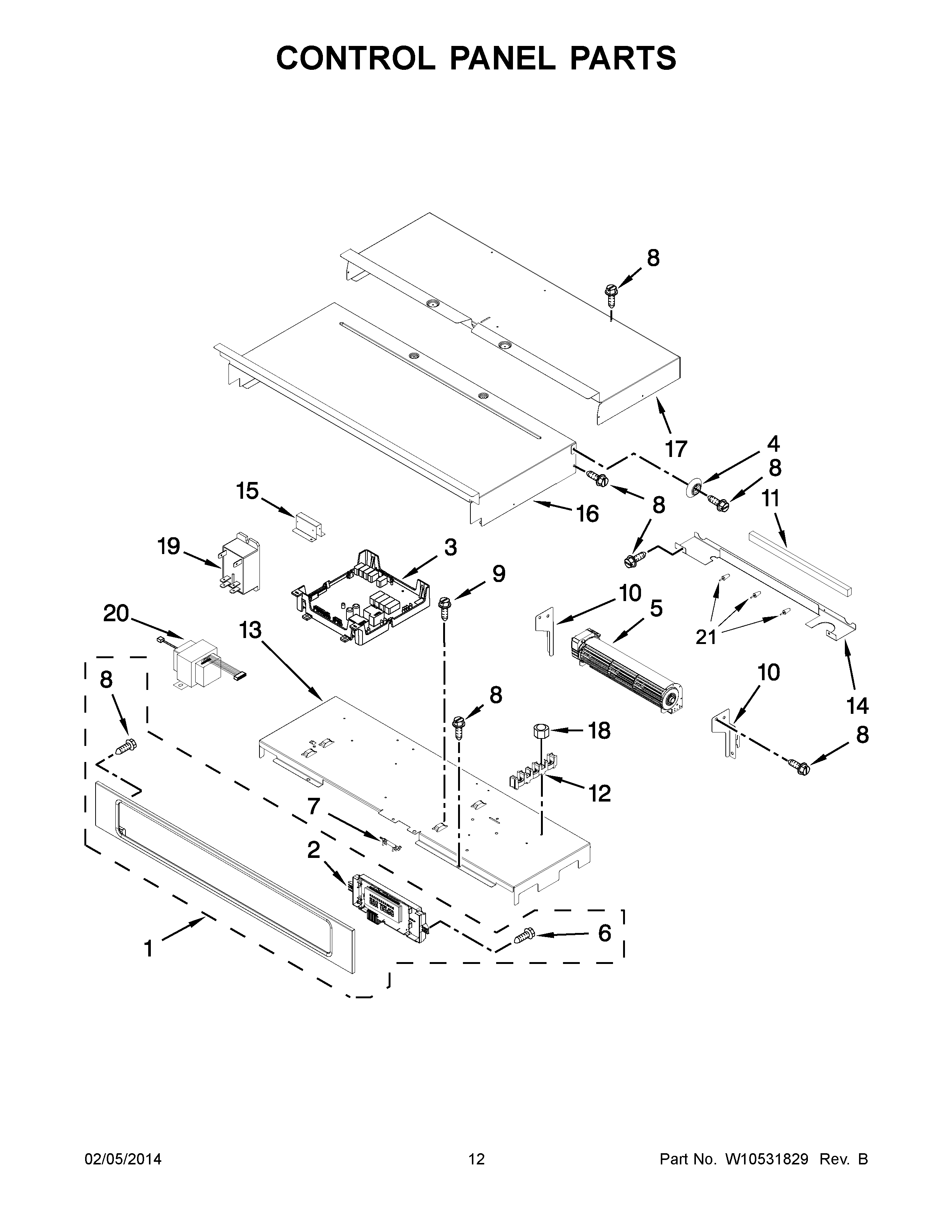

KEBS209BBL00 07 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
2	WPW10751155-includeCORE Whirlpool WPW10751155 Refrigerator Electronic Control Board + Core
3	BOARD, GOC
4	W10363824 Whirlpool Spacer
5	WPW10260254 Whirlpool Blower
6	SCREW (BLACK)
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	BRACKET, BLOWER LEFT
10	W10283078 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	W10347650 Whirlpool Mounting Bracket
14	W10509164 Whirlpool Mounting Bracket
15	W10347585 Whirlpool Relay Bracket
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
18	Nut
19	WP9752759 Whirlpool Relay
20	WPW10354052 Whirlpool Transformer
21	W10351295 Whirlpool Bumper Assembly
