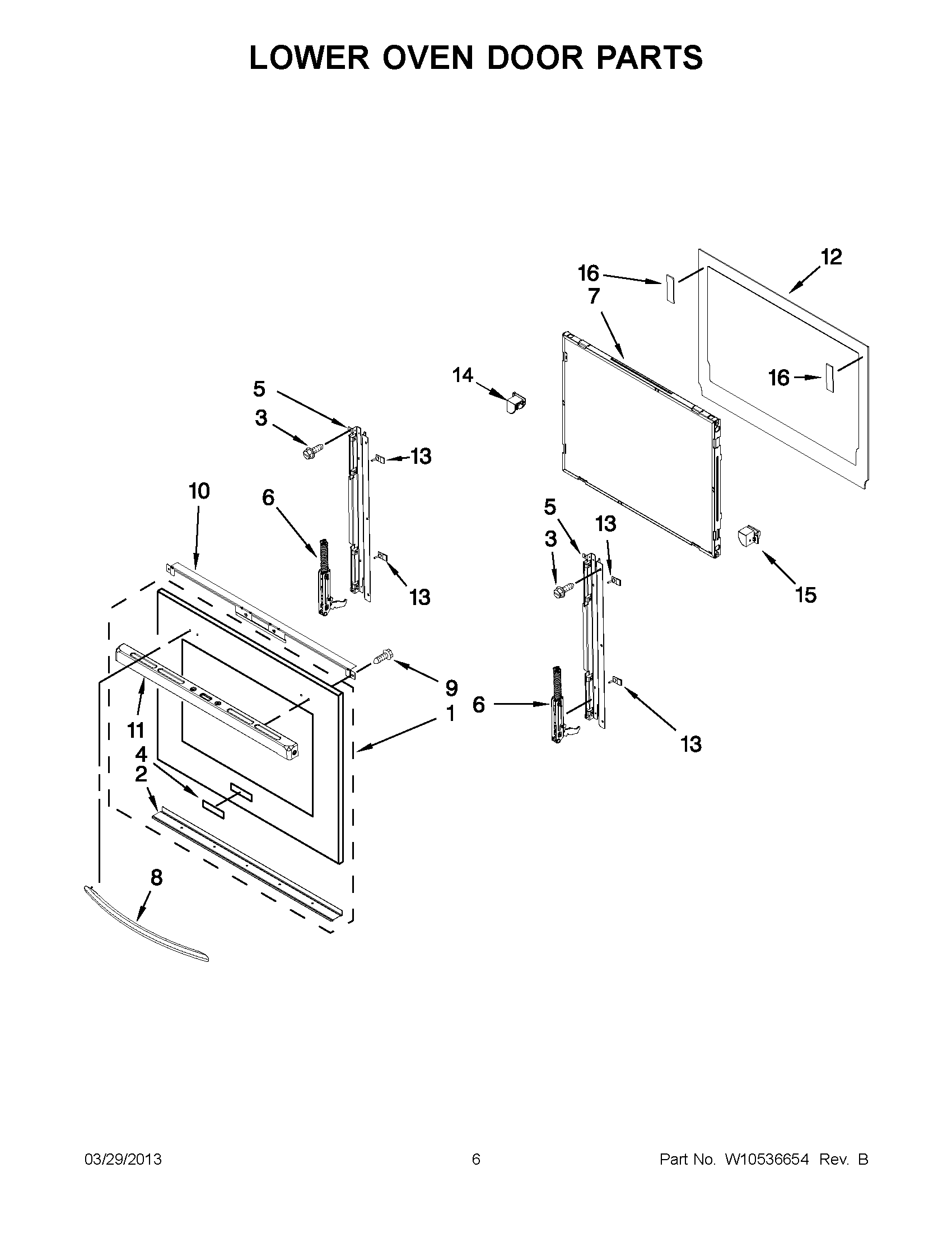

KEBS209BSP00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (STAINLESS)
2	W10479068 Whirlpool Dishwasher Support Bracket
3	SCREW
4	WPW10320959 Whirlpool Dishwasher Nameplate
5	RAIL, DOOR SIDE (LEFT)
5	RAIL, DOOR SIDE (RIGHT)
6	W10825778 Whirlpool Whirlpool Door Hinge
7	WPW10347598 Whirlpool Door Glass
8	W10246102A Whirlpool Range Oven Door Handle
9	WPW10276043 Whirlpool Screw
10	WPW10459351 Whirlpool Glass Bracket
11	WPW10416257 Whirlpool Vent Trim
12	WPW10335920 Whirlpool Glass Frame
13	WPW10323551 Whirlpool Bumper
14	BRACKET, DOOR SIDE LEFT
15	WPW10581826 Whirlpool Support Bracket
16	WPW10517428 Whirlpool Spacer
