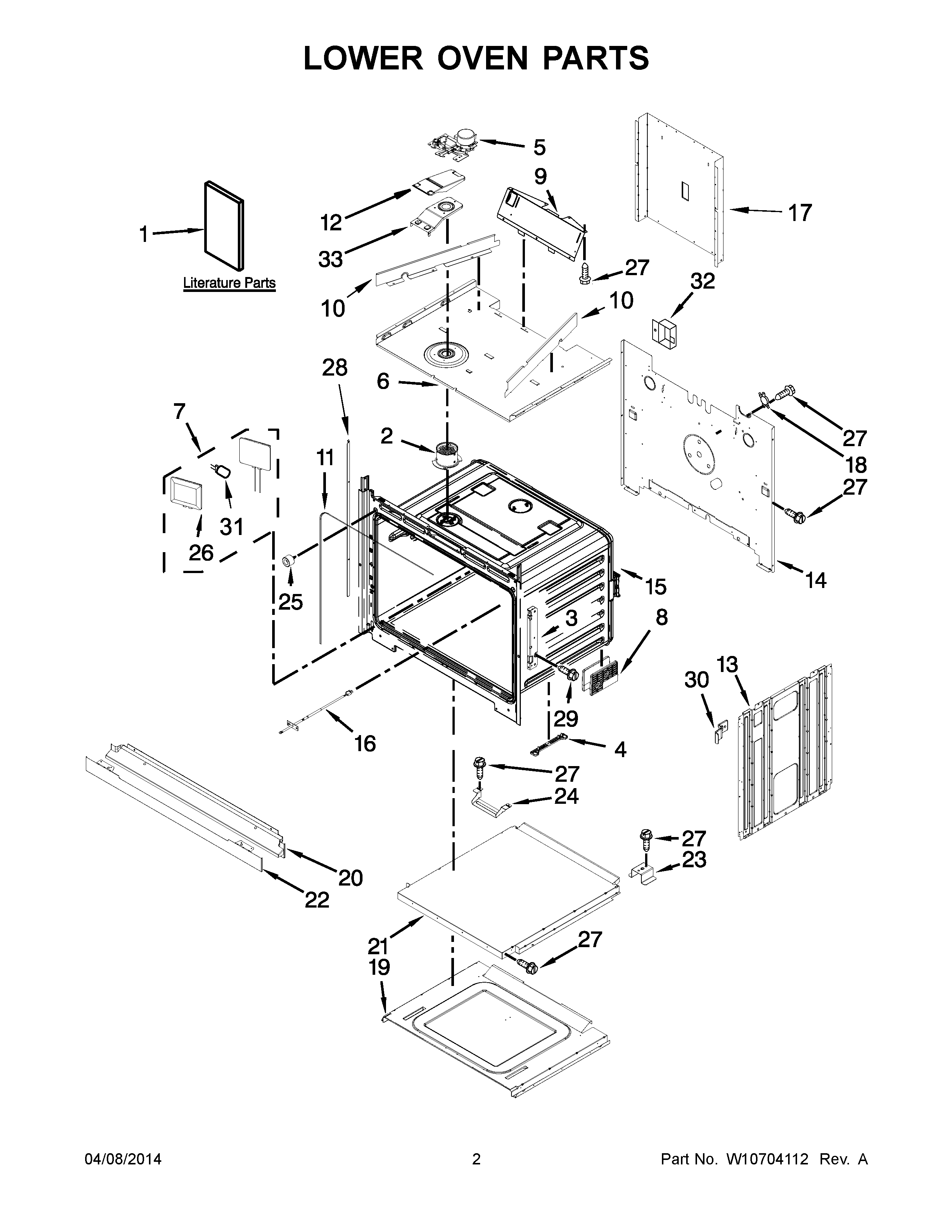

KEBS209BSP01 02 – LOWER OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688731 Whirlpool Insulation
NI	W11684789 Whirlpool Insulation
1	USE & CARE GUIDE
1	TECH SHEET (ENGLISH/FRENCH)
1	INSTALLATION INSTRUCTIONS
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
8	W10821321 Whirlpool Leveling Foot
9	W10904163 Whirlpool Vent Deflector
10	CHASSIS, DEFLECTOR
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	PROBE, SENSOR
17	DUCT, CHASSIS BACK (LOWER)
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	WPW10327374 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10327377 Whirlpool Trim Kit
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10536161 Whirlpool Oven Trim Cover Kit
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	WPW10472384 Whirlpool Light Bulb
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
