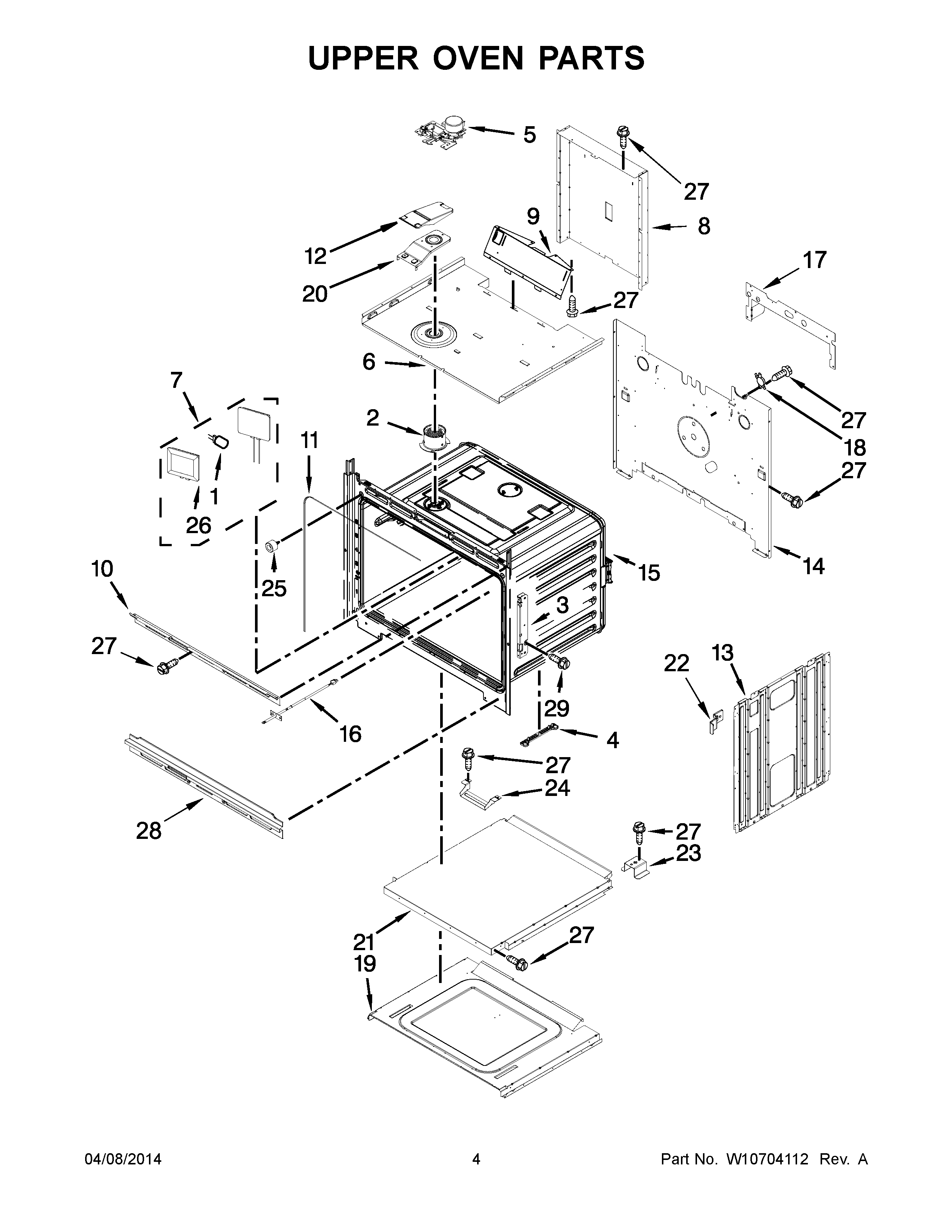

KEBS209BSP01 03 – UPPER OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
NI	W11688731 Whirlpool Insulation
1	WPW10472384 Whirlpool Light Bulb
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
8	W10318196 Whirlpool BA Chassis
9	W10904163 Whirlpool Vent Deflector
10	VENT, TOP 30``
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	PROBE, SENSOR
17	BRACKET, U-SHAPE
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	W10616809 Whirlpool Vent Tube
21	WPW10283008 Whirlpool Access Cover
22	W10347649 Whirlpool Spacer
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	VENT, CENTER 30``
29	WPW10254050 Whirlpool Screw
