KEBS209BSP01 04 – LOWER OVEN DOOR PARTS
Written by
in

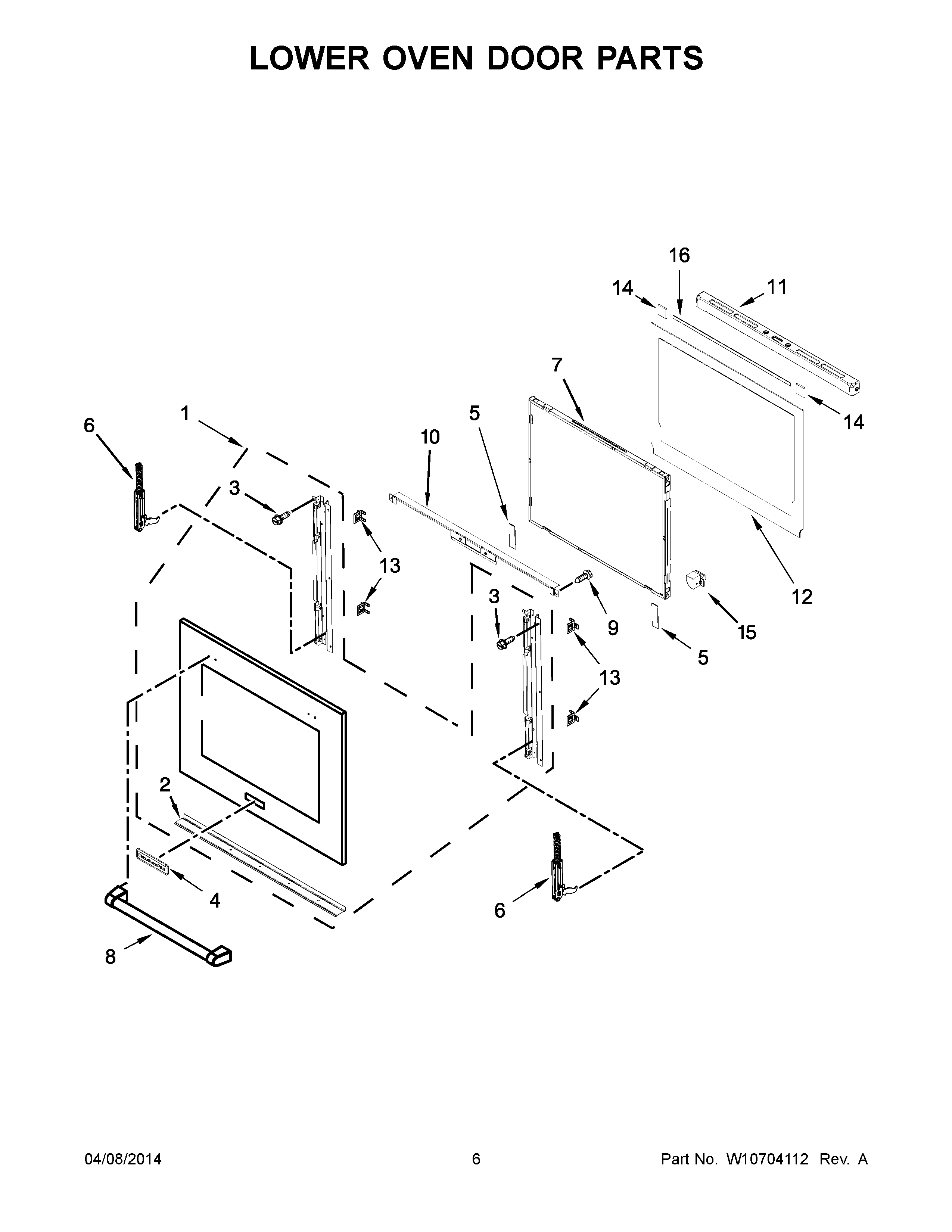

KEBS209BSP01 04 – LOWER OVEN DOOR PARTS
Products
Position
Product
1
ASSEMBLY, DOOR GLASS (STAINLESS)
2
W10479068 Whirlpool Dishwasher Support Bracket
3
WP3196183 Whirlpool Screw
4
WPW10320959 Whirlpool Dishwasher Nameplate
5
W10840861 Whirlpool Spacer
6
W10825778 Whirlpool Whirlpool Door Hinge
7
WPW10347598 Whirlpool Door Glass
8
W10246102A Whirlpool Range Oven Door Handle
9
SCREW
10
WPW10459351 Whirlpool Glass Bracket
11
WPW10416257 Whirlpool Vent Trim
12
WPW10335920 Whirlpool Glass Frame
13
WPW10549747 Whirlpool Clip
14
WPW10517428 Whirlpool Spacer
15
BRACKET, DOOR (LEFT)
15
WPW10581826 Whirlpool Support Bracket
16
W11082539 Whirlpool Vent Gasket
←
